  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. BNC type
  5. Coaxial BNC-R-M2-SCREW w/3 pcs ICF70 Flange

Coaxial BNC-R-M2-SCREW w/3 pcs ICF70 Flange

同軸 BNC-R-M2-SCREW 3個付き ICF70 フランジ
同軸 BNC-R-M2-SCREW 3個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 BNC-R-M2-SCREW 3個付き ICF70 フランジ
同軸 BNC-R-M2-SCREW 3個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10678 Model:C70BRS3

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, BNC connector connection on atmospheric side only
M2 threaded electrode tip
Connection flanges are standardized as NW/KF, ICF, JIS-VF, and JIS-VG

▼ In addition, the following types are standardized
Floating shield
No screw processing
Plug mating on both sides
High voltage 5kV without screw processing

▼ Custom-made products are also available.
We can also accept special flange mounting with different number of poles and various types of terminal combinations.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
94,400 JPY (with tax 103,840JPY)
stock
1
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10678
C70BRS3
- 70 - - 70 12.7 9.7 25 24 3
stock
1 1-2 Business Days
When out of stock
30 Business Days
94,400JPY (with tax 103,840JPY)

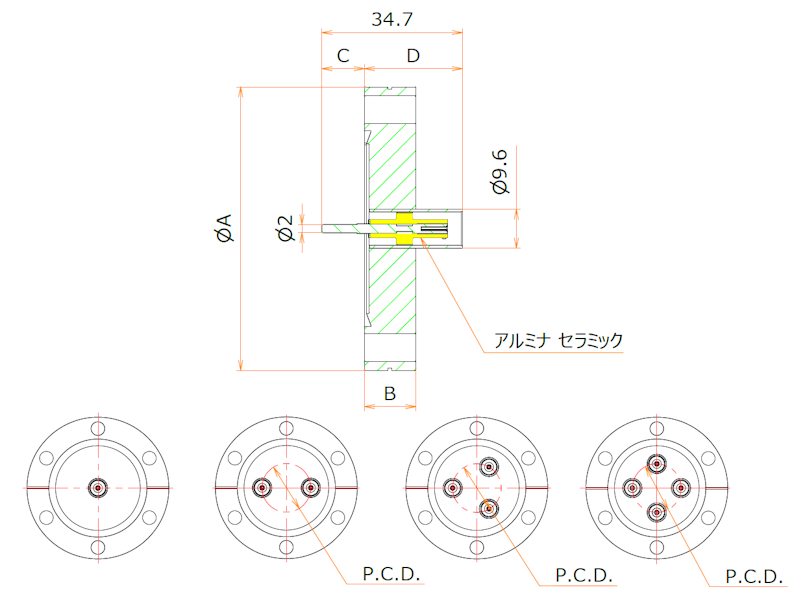

同軸 BNC-R-M2-SCREW 3個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 9.7 25 24 3
Coaxial BNC-R-M2-SCREW w/3 pcs ICF70 Flange
Product code :10678    Model:C70BRS3
