Insulated Fittings 1/4" Male VCR®/ Male 10kV

絶縁継手 1/4インチ めすVCR®/おす 10kV

Mouse over the image to enlarge it

絶縁継手 1/4インチ めすVCR®/おす 10kV
share the productshare the product
Facebook
LINE
Twitter
Product code :11826 Model:FM1/4ISL10KV

▼VCR® Insulated joints
Withstand voltage: 1.8kV, 10kV
VCR® joints are available in combinations of double-sided male, double-sided female, and female male.
※Because of the risk of cracking when tension is applied to the ceramic part, we recommend the use of bellows in combination with the ceramic part.
※Integrated bellows type is also available for tight spaces (ICF only).

▼The following types are standardized (list)
Tubing: Tube ends, Swagelok® fittings, VCR® fittings
Flanges: ICF, NW/KF, JIS-VF, JIS-VG
Bellows integrated type (ICF)

▼Custom-made products are also available.
We can also change lengths, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
type Insulation flange
cap Kovar ®
Insulator Alumina ceramic
Maximum temperature 300℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
RoHS2 corresponding ○
36,800 JPY (with tax 40,480JPY)
stock
16
1-2 Business Days
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Joint standard Tube / Fitting Size L Withstand voltage: DC sleeve
Stock & Delivery
front.product.price
front.product.tax_included2
11826
FM1/4ISL10KV
VCR® F-VCR® M 1/4 inch 108.4 10 kV SUS 304
stock
16 1-2 Business Days
When out of stock
30 Business Days
36,800JPY (with tax 40,480JPY)

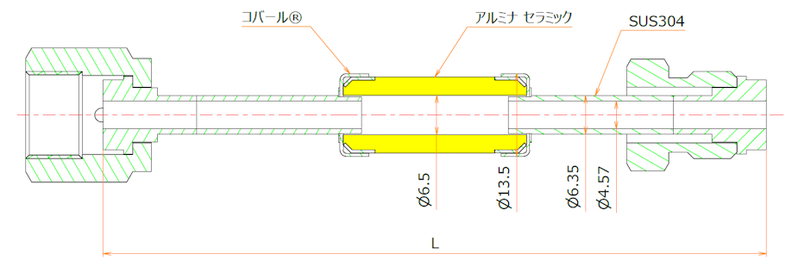

絶縁継手 1/4インチ めすVCR®/おす 10kV admin.label.item.size_image
Joint standard Tube / Fitting Size L Withstand voltage: DC sleeve
VCR® F-VCR® M 1/4 inch 108.4 10 kV SUS 304
Insulated joint 1/4" VCR® female/ male 10kV
Product code :11826    Model:FM1/4ISL10KV
36,800JPY (with tax 40,480JPY)
