  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. MHV type
  5. Coaxial MHV-JJ-F with 1 VF20 flange

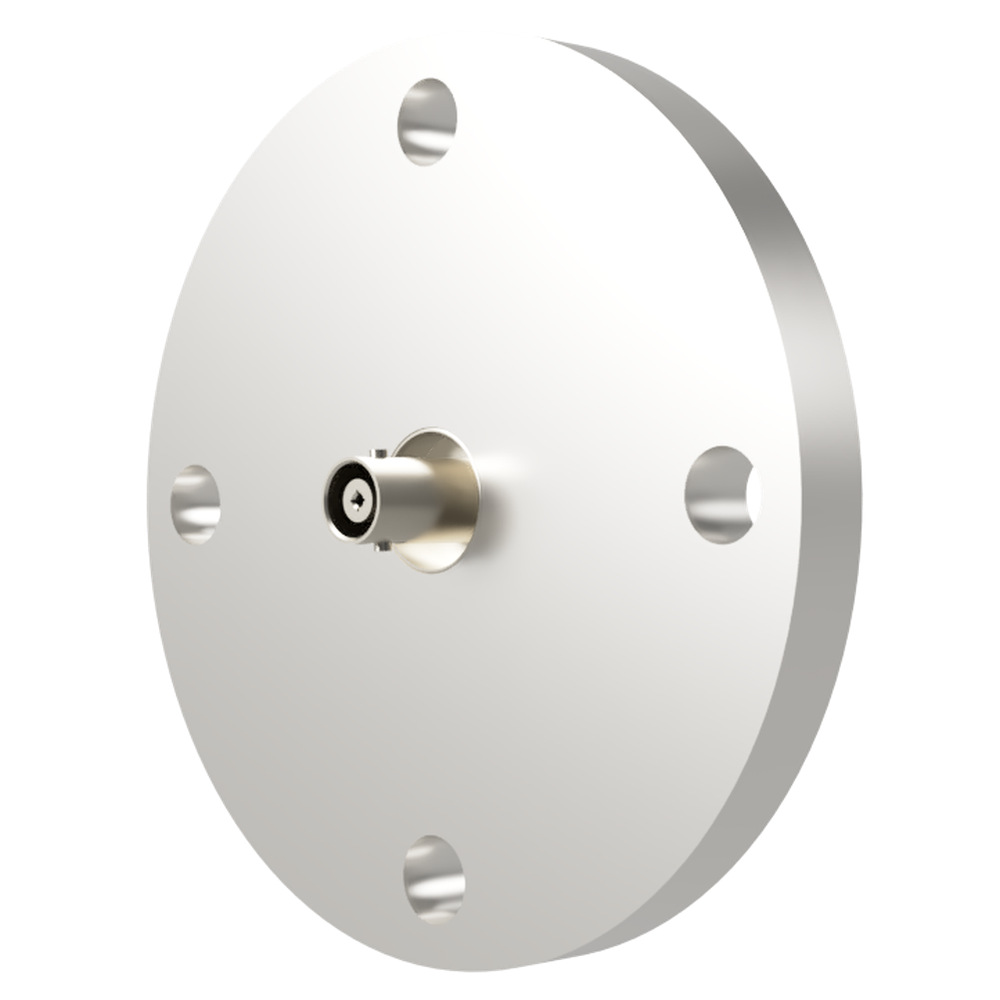

Coaxial MHV-JJ-F with 1 VF20 flange

同軸 MHV-JJ-F 1個付き VF20 フランジ

Mouse over the image to enlarge it

同軸 MHV-JJ-F 1個付き VF20 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :11701 Model:F20MJF1

Miniature High Voltage
▼ Feedthrough Coaxial MHV Floating Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
MHV connector connection on both vacuum and atmosphere side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shielded single-sided plug mating
Floating shield plugging on one side
Gland shield plug mating on both sides

▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type MHV
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11701
F20MJF1
- - 20 - 80 8 12 24.5 - 1
同軸 MHV-JJ-F 1個付き VF20 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 20 - 80 8 12 24.5 - 1
Coaxial MHV-JJ-F with 1 VF20 flange
Product code :11701    Model:F20MJF1
