Feedthrough coaxial MHV-JJ-F floating shield both
Miniature High Voltage
▼ Feedthrough Coaxial MHV Floating Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
MHV connector connection on both vacuum and atmosphere side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
Ground shielded single-sided plug mating
Floating shield plugging on one side
Gland shield plug mating on both sides
▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | MHV |
| Connection type | Vacuum side and the atmosphere |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Classification | Flanged terminal |
| type | Floating shield |
| Impedance | 50 Ω |
| frequency | 100 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 5 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | ○ |
We have 28 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

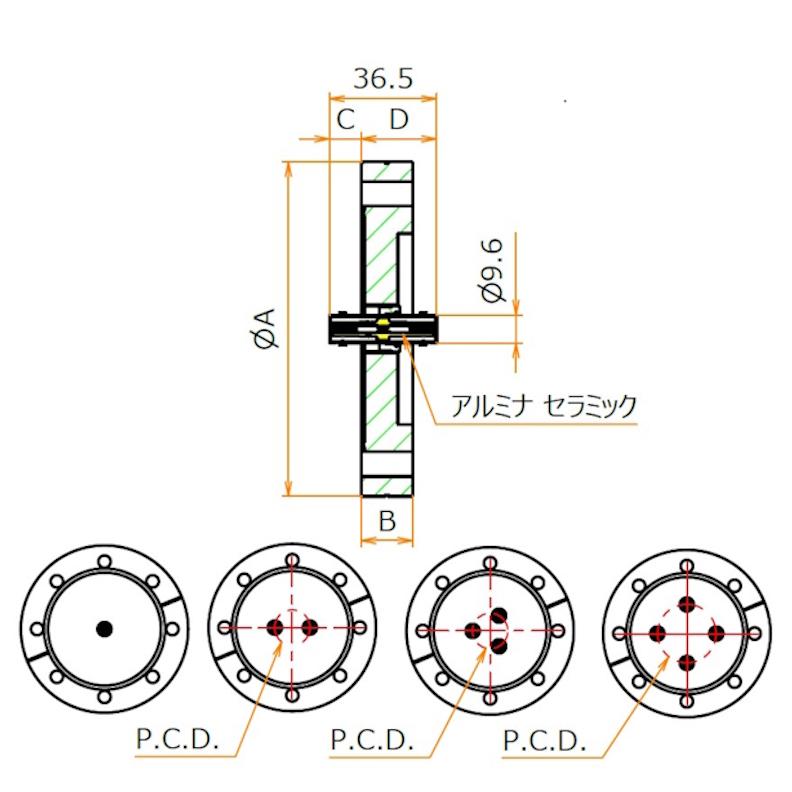

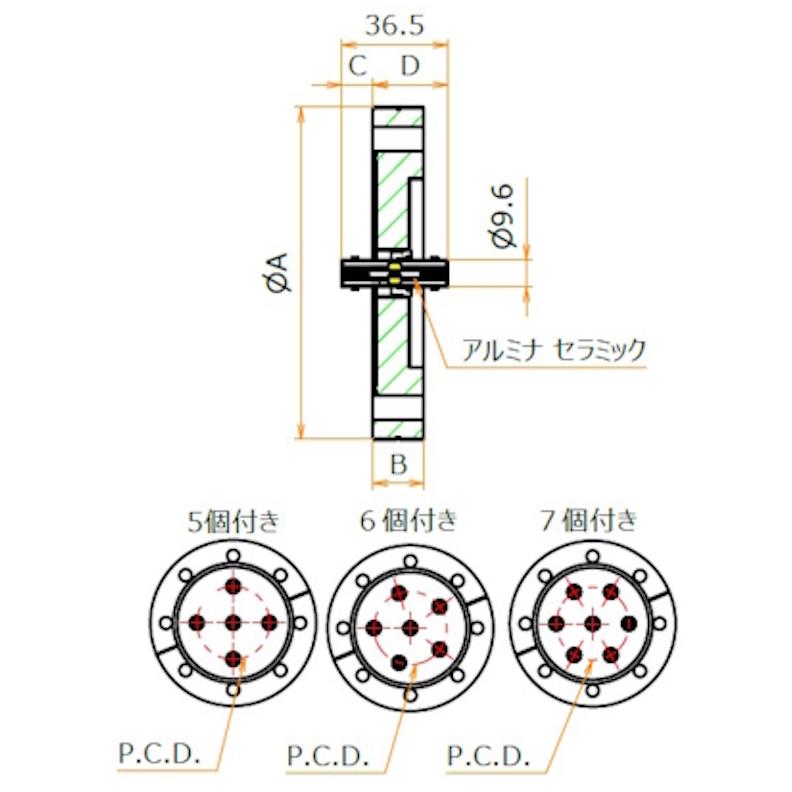

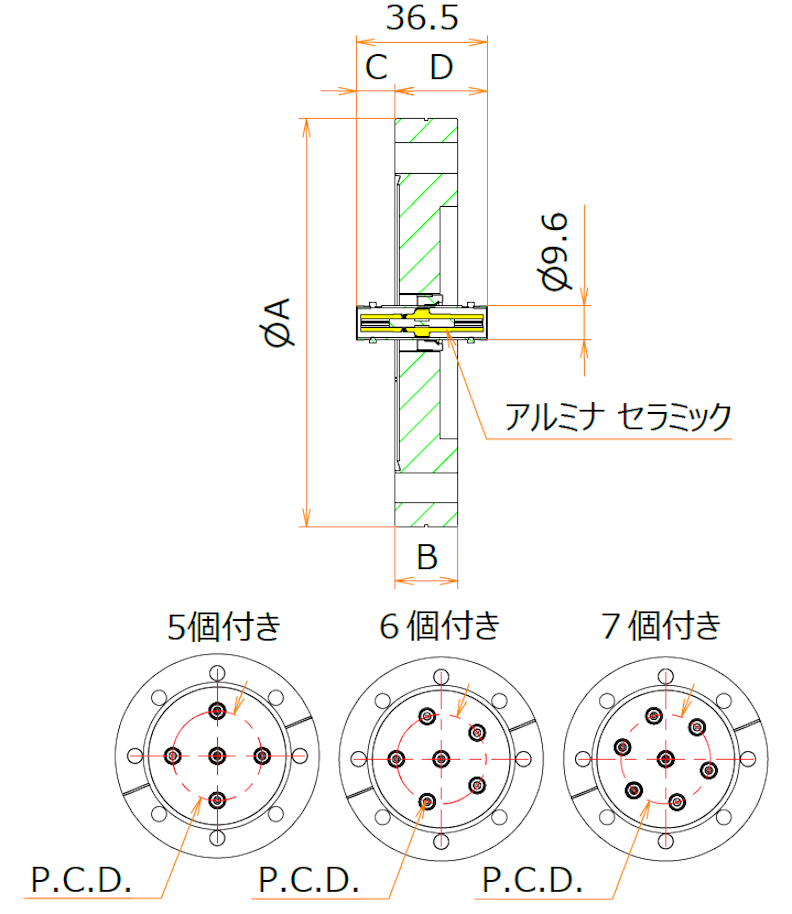

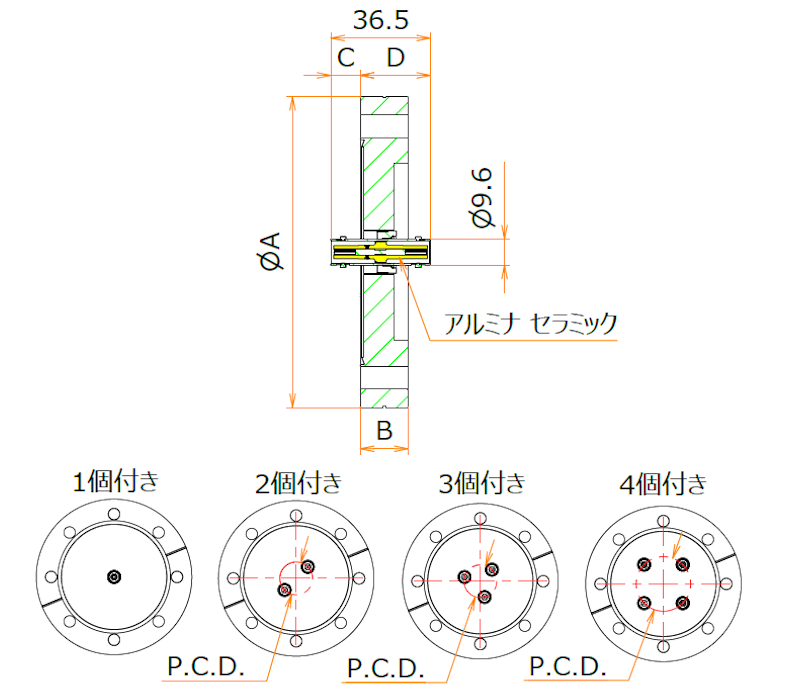

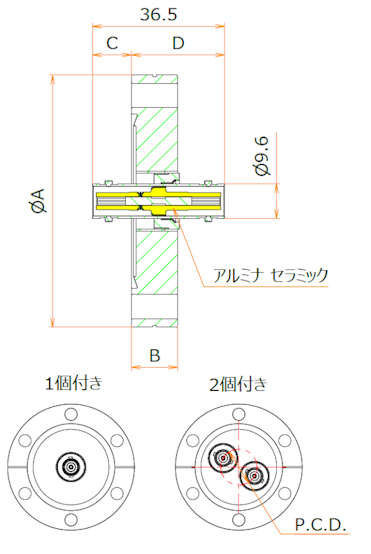

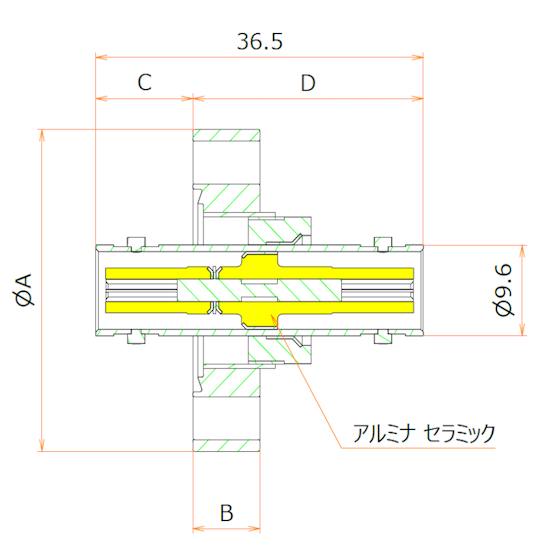

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 4.8 | 12.5 | 34.5 | - | 1 |
When out of stock
21 Business Days
|
78,400JPY
(with tax 86,240JPY)
|
|
| 25 | - | - | - | 40 | 6 | 9.5 | 27 | - | 1 |
When out of stock
30 Business Days
|
78,600JPY
(with tax 86,460JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | - | 1 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
78,900JPY
(with tax 86,790JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | 20 | 2 |
When out of stock
30 Business Days
|
153,800JPY
(with tax 169,180JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | 21 | 3 |
When out of stock
30 Business Days
|
224,900JPY
(with tax 247,390JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | - | 1 |
When out of stock
30 Business Days
|
79,400JPY
(with tax 87,340JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | 20 | 2 |
When out of stock
30 Business Days
|
154,300JPY
(with tax 169,730JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | 21 | 3 |
When out of stock
30 Business Days
|
225,400JPY
(with tax 247,940JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | 28 | 4 |
When out of stock
30 Business Days
|
288,200JPY
(with tax 317,020JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 10 | 26.5 | - | 1 |
When out of stock
30 Business Days
|
79,400JPY
(with tax 87,340JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 10 | 26.5 | - | 1 |
When out of stock
30 Business Days
|
80,600JPY
(with tax 88,660JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 10 | 26.5 | 20 | 2 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
155,500JPY
(with tax 171,050JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 10 | 26.5 | 30 | 3 |
When out of stock
30 Business Days
|
232,600JPY
(with tax 255,860JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 10 | 26.5 | 30 | 4 |
When out of stock
30 Business Days
|
295,400JPY
(with tax 324,940JPY)
|
|
| - | - | 20 | - | 80 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
80,400JPY
(with tax 88,440JPY)
|
|
| - | - | 25 | - | 90 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
81,200JPY
(with tax 89,320JPY)
|
|
| - | - | 25 | - | 90 | 8 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
156,100JPY
(with tax 171,710JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
82,200JPY
(with tax 90,420JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
157,100JPY
(with tax 172,810JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 25 | 3 |
When out of stock
30 Business Days
|
228,200JPY
(with tax 251,020JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 30 | 4 |
When out of stock
30 Business Days
|
291,000JPY
(with tax 320,100JPY)
|
|
| - | - | - | 20 | 80 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
80,400JPY
(with tax 88,440JPY)
|
|
| - | - | - | 25 | 90 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
81,200JPY
(with tax 89,320JPY)
|
|
| - | - | - | 25 | 90 | 8 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
156,100JPY
(with tax 171,710JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
82,200JPY
(with tax 90,420JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
157,100JPY
(with tax 172,810JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 25 | 3 |
When out of stock
30 Business Days
|
228,200JPY
(with tax 251,020JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 30 | 4 |
When out of stock
30 Business Days
|
291,000JPY
(with tax 320,100JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
https://www.cosmotec-co.jp/info/case/1483/
