- Medium current Oxygen-free copper Compact type 5kV - 22A with 1 piece VF40 flange

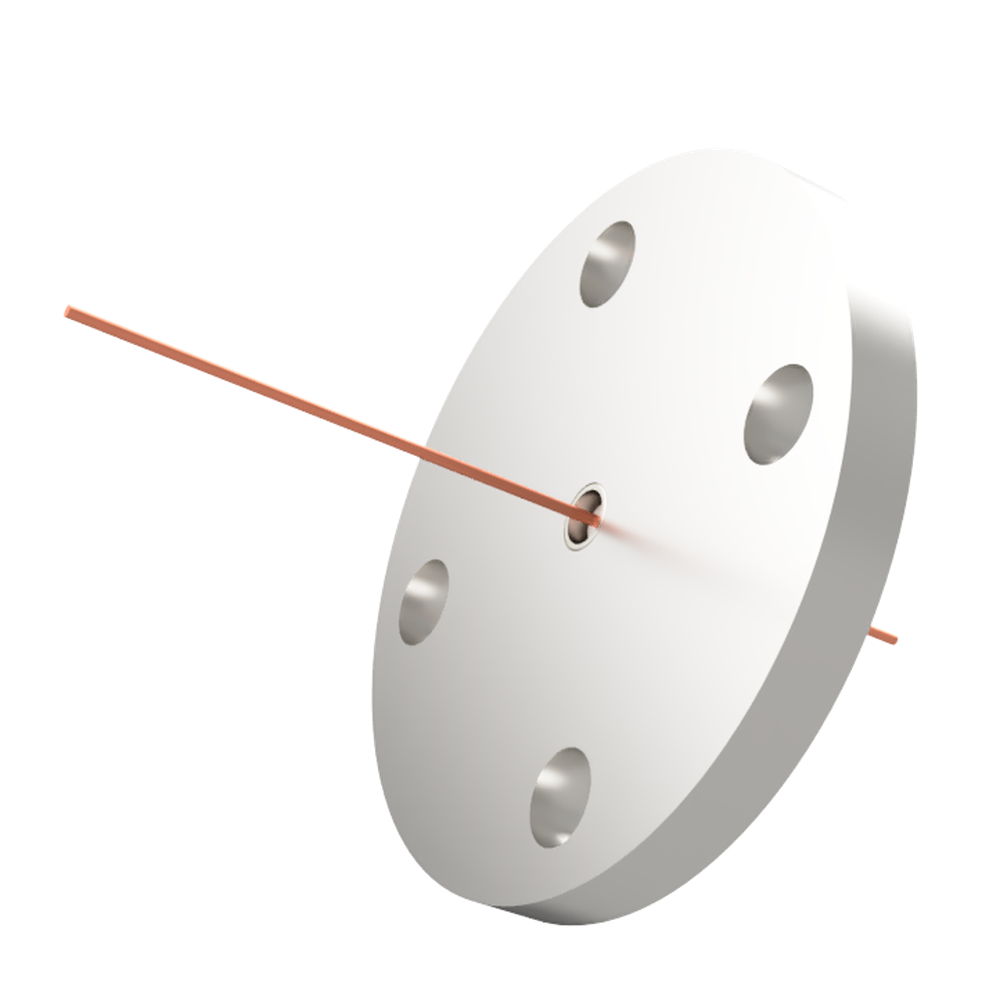

Medium current Oxygen-free copper Compact type 5kV - 22A with 1 piece VF40 flange
▼High voltage feedthroughs Compact type
Used in applications such as power, heaters, lamps, etc.
Compact type allows for installation with a small flange and higher voltages than multi-pin terminals
Electrode: Oxygen-free copper, SUS
For 3kV 3A, 3kV 22A
Number of electrodes: 1, 2, 3, 4
▼The following types of high voltage feedthroughs are standardized (List)
With threaded electrode: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
Flange: NW/KF, ICF, JIS-VF, JIS-VG
▼We can quickly respond to changes in terminal arrangement, quantity, flange standard/size, welding of many kinds of products, and custom-made products. Please contact us by clicking the "Inquiry" button on the right side of this page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| type | High-voltage and medium curren |
| electrode | Oxygen-free copper |
| Flange material | SUS 304 |
| sleeve | SUS 430 |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 5 kV |
| Electric current / 1 pc. | 22 A |
| Feedthrough | 5 kV / 22 A |
front.product.product_code Model |
NW/KF | ICF | VF | VG | A | B | C | D | E | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | 40 | - | 105 | 10 | 58 | 42 | 7.4 | - | 1 | |||
| NW/KF | ICF | VF | VG | A | B | C | D | E | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|---|
| - | - | 40 | - | 105 | 10 | 58 | 42 | 7.4 | - | 1 |
