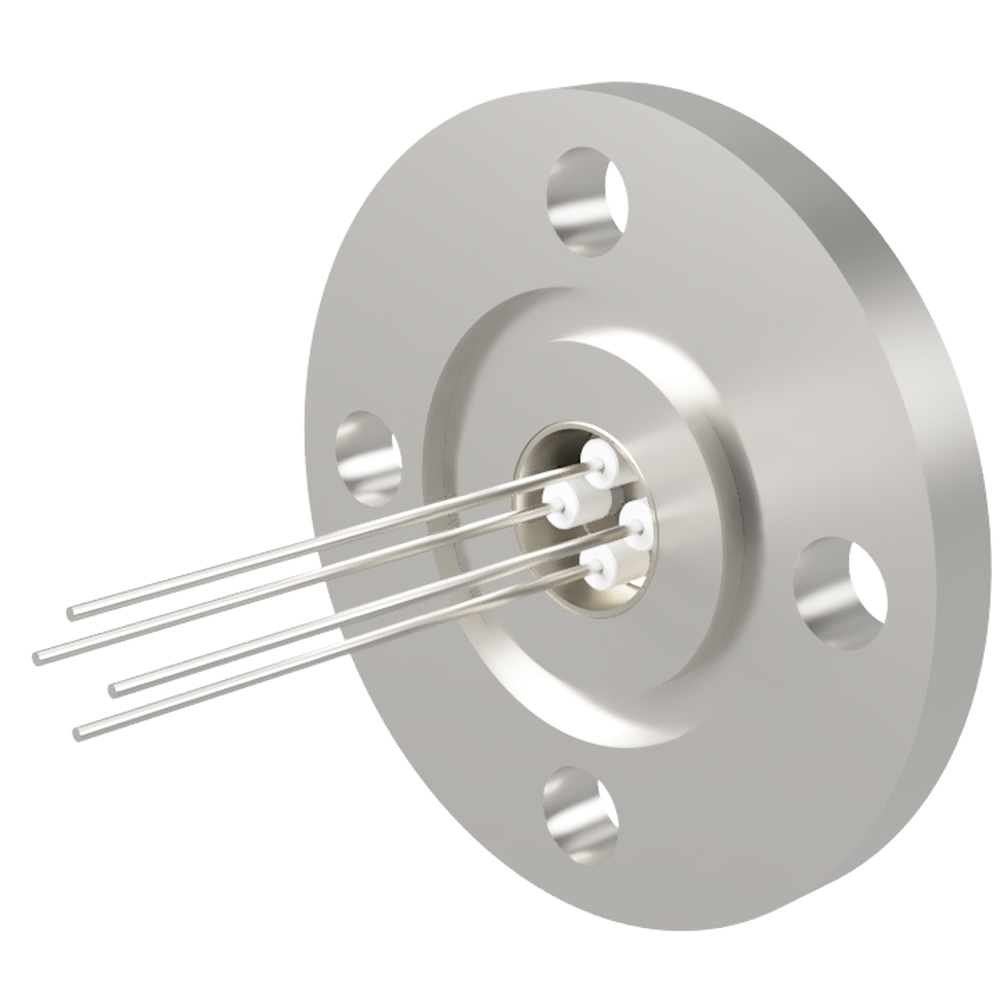

Product code :11413 Model:G25K3A4SUS

▼High voltage feedthroughs Compact type
Used in applications such as power, heaters, lamps, etc.
Compact type allows for installation with a small flange and higher voltages than multi-pin terminals
Electrode: Oxygen-free copper, SUS
For 3kV 3A, 3kV 22A
Number of electrodes: 1, 2, 3, 4

▼The following types of high voltage feedthroughs are standardized (List)
With threaded electrode: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼We can quickly respond to changes in terminal arrangement, quantity, flange standard/size, welding of many kinds of products, and custom-made products. Please contact us by clicking the "Inquiry" button on the right side of this page.

For precision cleaning requests, please click here.

Basic Information
type High voltage and low current
electrode SUS 304
Flange material SUS 304
sleeve SUS 430
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
Feedthrough 5 kV / 3 A
Inquiry for this product
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D E P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11413
G25K3A4SUS
- - - 20 80 8 58 42 19 10 4
低電流 ステンレス コンパクトタイプ 5kV - 3A 4個付き VG20 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D E P.C.D The number of electrode
- - - 20 80 8 58 42 19 10 4
Low current Stainless steel Compact type 5kV - 3A with 4 VG20 flanges
Product code :11413    Model:G25K3A4SUS
