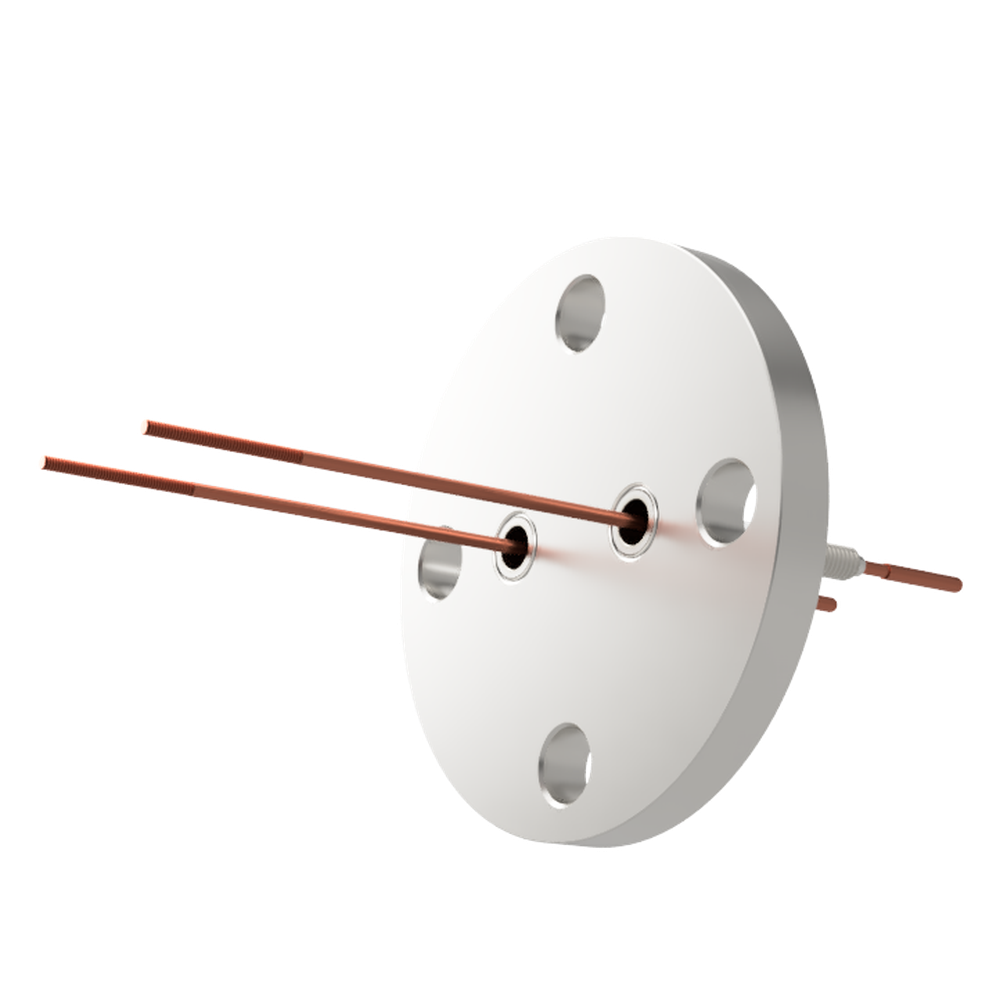

Product code :12976 Model:F23K35A2CUM2WP

▼ High voltage feedthroughs Silicon connection type
Used in applications such as electric power, heaters, lamps, etc.
Silicon insulated plug connection type for safety
Electrodes are covered with insulating material, so no protection on the atmospheric side is required
Electrode: Oxygen-free copper
Applicable to 3kV 35A, 5kV 110A
Number of electrodes: 1, 2, 3, 4
Two SUS nuts (M2) for connection are included per electrode.

▼ The following types are standardized (List)
Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
Flange: NW/KF, ICF, JIS-VF, JIS-VG

▼ Custom-made products are also available.
We can quickly respond to changes in terminal arrangement, quantity, flange standard size, welding of multiple products, and custom orders. Please contact us by clicking the "Inquiry" button on the right side of this page.

For precision cleaning requests, please click here.

Basic Information
type High-voltage and medium curren
electrode Oxygen-free copper
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 3 kV
Electric current / 1 pc. 35 A
Feedthrough 3 kV / 35 A
Inquiry for this product
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12976
F23K35A2CUM2WP
- - 20 - 80 8 70 59.5 15 2
中電流 3kV - 35A シリコンプラグ接続タイプ 2個付き VF20 フランジ 先端ねじ加工あり admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - 20 - 80 8 70 59.5 15 2
Medium current 3kV-35A Silicon plug connection type with 2 pieces VF20 flange with threaded en
