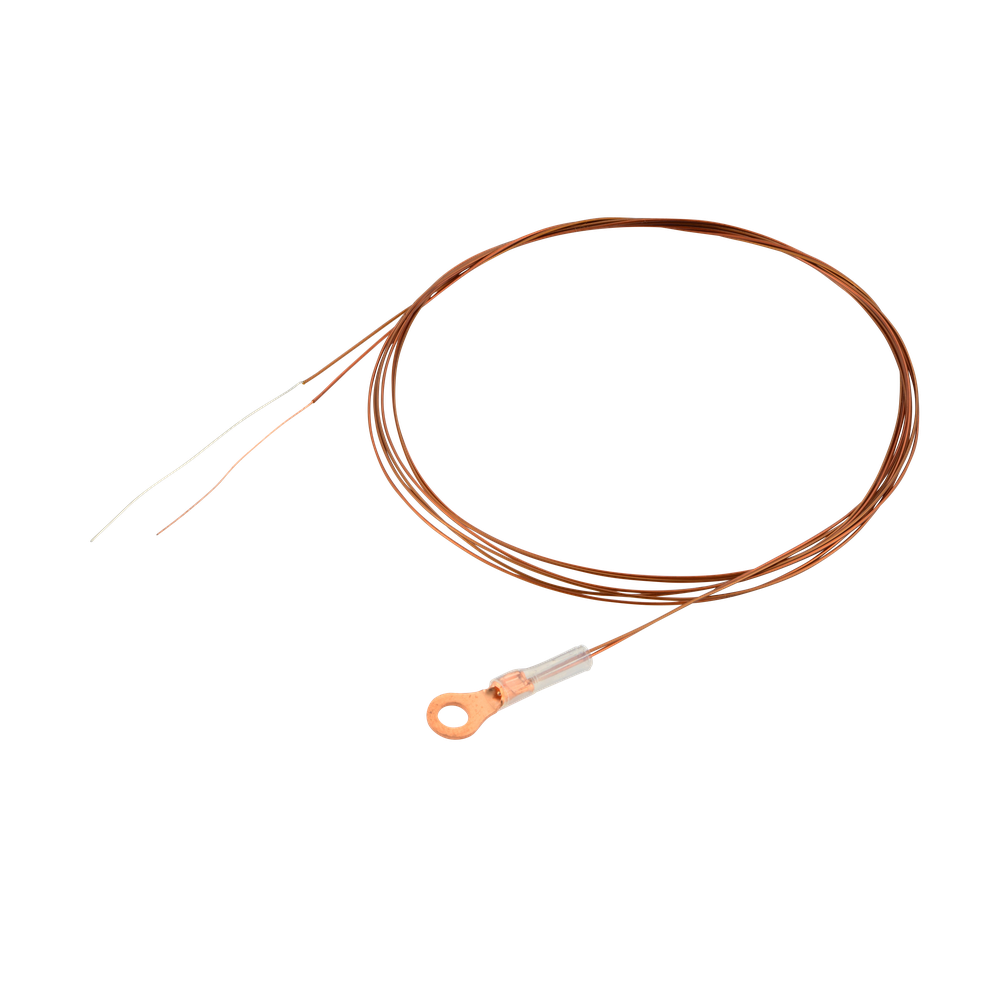

  6. Connection part Vacuum side T thermocouple with Kapton® sheathed cable Tip welding with M2 crimp terminal for φ0.32 L=1000

Connection part Vacuum side T thermocouple with Kapton® sheathed cable Tip welding with M2 crimp terminal for φ0.32 L=1000

接続部品 真空側 T熱電対 カプトン®被覆ケーブル付き 先端溶接 φ0.32 用 M2圧着端子付き L=1000

Mouse over the image to enlarge it

接続部品 真空側 T熱電対 カプトン®被覆ケーブル付き 先端溶接 φ0.32 用 M2圧着端子付き L=1000
share the productshare the product
Facebook
LINE
Twitter
Product code :18856 Model:VT3K1000X/RT2

▼Thermocouple T type Vacuum side cable
Bare wire + Kapton® coating
Usable in ultra-high vacuum environment
Length: 1000, 2500, 5000

▼ Option
Assembly products with connecting parts (socket contacts, plugs, etc.) are also available.
Please contact us for cable length change and sheathed cables. Please contact us by clicking the "Inquiry" button on the right side of this page.
※ Click here for bare wire only.
※ PEEK® sheathed cables are available here.
※ Ceramic beads are available here.

For precision cleaning, click here.

Basic Information
type Thermocouple T type
conductor Copper, constantan ®
Pairs of Thermocouple 1
Vacuum and Air For vacuum
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
Stock & Delivery
front.product.price
front.product.tax_included2
18856
VT3K1000X/RT2
φ 0.32 0.5 1.0 1000 Kapton ® 400℃ -40℃ One side: M2 crimp terminal On
Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
φ 0.32 0.5 1.0 1000 Kapton ® 400℃ -40℃ One side: M2 crimp terminal On
Vacuum side T thermocouple with Kapton® sheathed cable with M2 crimp terminals L=1000
Product code :18856    Model:VT3K1000X/RT2
Contact Us

Filter by model

L（長さ）

素線/ケーブル径

ケーブル被覆

端末処理

接続部品 真空側 T熱電対 カプトン®被覆ケーブル付き 先端溶接 φ0.32 用 M2圧着端子付き L=1000 admin.label.item.catalog_image
Connection parts
Connecting copper parts thermocouple T thermocouple socket contacts φ1.6
Connecting copper parts thermocouple T thermocouple socket contacts φ1.6
Product code :12328
Model:SVC16CU
Connection constantan parts thermocouple T thermocouple socket contacts φ1.6
Connection constantan parts thermocouple T thermocouple socket contacts φ1.6
Product code :12329
Model:SVC16CT
