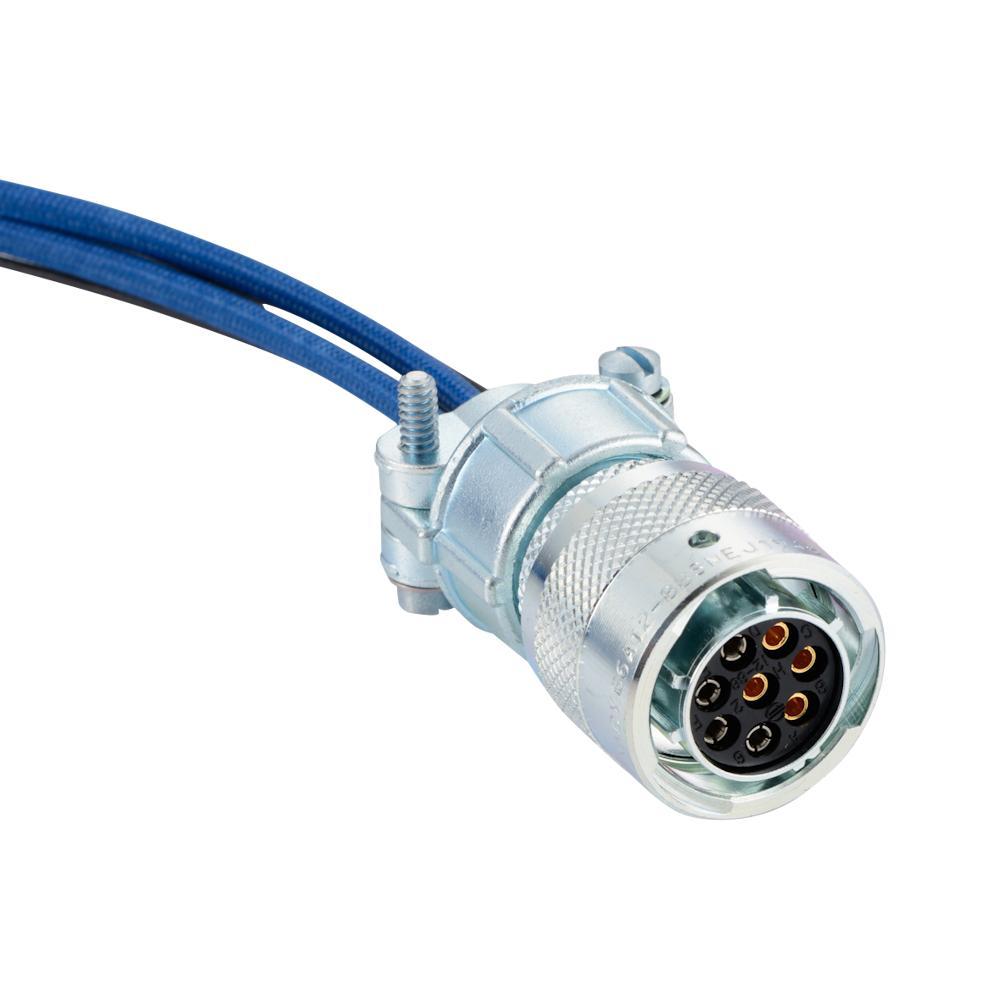

Connecting parts Atmosphere side combi plug + glass sheath + PVC sheath cable 2 pairs + 4PIN L=5000

接続部品 大気側 コンビ プラグ+ガラス被覆+PVC被覆ケーブル 2対+4PIN L=5000

Mouse over the image to enlarge it

接続部品 大気側 コンビ プラグ+ガラス被覆+PVC被覆ケーブル 2対+4PIN L=5000
share the productshare the product
Facebook
LINE
Twitter
Product code :15746 Model:ACMG5000X/8

▼Thermocouple K type Atmosphere side plug + Socket contact + Cable
For combination type K type thermocouple 1 pair + compensating conductor for atmospheric side for current induction 2PIN ASSY item
Ready to use immediately after arrival due to preassembled.
For thermocouple: glass coating, for copper electrode: polyethylene coating
Length: 1000, 2500, 5000

▼ Options
We can change the coating and the length of the cable. We can also perform assembly processing on supplied cables. Please contact us by clicking the "Inquiry" button on the right side of this page.

Click here to request precision cleaning.

Basic Information
type Thermocouple type K
Withstand voltage: DC 300 V
Electric current / 1 pc. 7 A
Wire / cable diameter (K type) 0.5sq (current introd
Cable sheathing (K type) glass (current lead)
shell Aluminum alloy
Insulator Glass filled phenolic resin (U
Maximum temperature 60℃
The lowest temperature -20℃
Vacuum and Air For the atmosphere
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 A C L The number of electrode Pairs of Thermocouple
Stock & Delivery
front.product.price
front.product.tax_included2
15746
ACMG5000X/8
24.7 51 5000 4 2
接続部品 大気側 コンビ プラグ+ガラス被覆+PVC被覆ケーブル 2対+4PIN L=5000 admin.label.item.size_image
A C L The number of electrode Pairs of Thermocouple
24.7 51 5000 4 2
Connecting parts Atmosphere side combi plug + glass sheath+PVC sheath cable2pairs+4PINL=5000
Product code :15746    Model:ACMG5000X/8
Contact Us

Filter by model

L（長さ）

電極数

対数（熱電対）

接続部品 大気側 コンビ プラグ+ガラス被覆+PVC被覆ケーブル 2対+4PIN L=5000 admin.label.item.catalog_image

ピン配列
Burndyタイプのアセンブリ方法は以下の画像をクリックしてください。
Burndyタイプ_アセンブリ方法
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
