Coaxial SHV-JJ with 1 ICF70 flange

同軸 SHV-JJ 1個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 SHV-JJ 1個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10720 Model:C70SHJ1

Safe High Voltage
▼ Coaxial SHV Ground Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
SHV connector connection on both vacuum side and atmosphere side
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shielded single-sided plug mating (5kV, 10kV, 20kV)
Floating shield plug mating on one side (5kV)
Floating shield plug mating on both sides (5kV)

▼ Custom-made products are also available.
We can also accept a change in the number of poles, a combination of multiple types of terminals, and mounting on a special flange.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

Basic Information
type SHV
Connection type Vacuum side and the atmosphere
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10720
C70SHJ1
- 70 - - 70 12.7 13.5 29.9 - 1

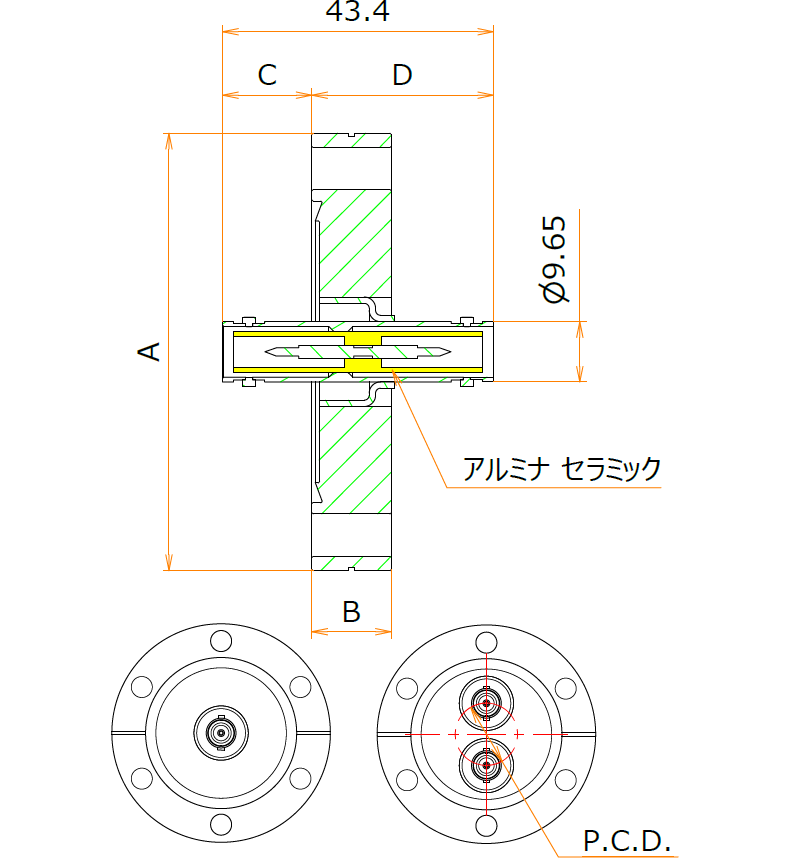

同軸 SHV-JJ 1個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 13.5 29.9 - 1
Coaxial SHV-JJ with 1 ICF70 flange
Product code :10720    Model:C70SHJ1
