Connecting parts Thermocouple K type vacuum side i
▼Thermocouple K type Cable with vacuum side insert
Usable in ultra-high vacuum environment
Standardized polyimide covered cable products
Easy connection by simply inserting the cable along the guide groove, even in locations that are difficult to see.
Pre-assembled and ready to use upon arrival
Lengths: 1000, 2500, 5000
▼ Options
Please consult us about the sheathing, cable length, and sheathed cables. Please contact us from the "Inquiry" button on the right side of the page.
※ The cable itself is here.
For precision cleaning, click here.
| Basic Information | |
|---|---|
| type | Thermocouple type K |
| Wire / cable diameter | φ 0.32 |
| conductor | Chromel ®, alumel ® |
| Insulator | PEEK® |
| terminal processing | One side: insert One side: lef |
| Maximum temperature | 250℃ |
| The lowest temperature | -50℃ |
| Vacuum and Air | For vacuum |
| RoHS2 corresponding | ○ |
We have 18 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

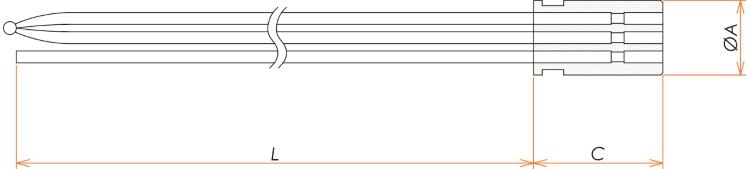

A | C | L | Pairs of Thermocouple | Cable sheathing | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|
| 12.8 | 36 | 1000 | 2 | Kapton ® |
stock
3
1-2 Business Days
When out of stock
11 Business Days
|
51,500JPY
(with tax 56,650JPY)
|
|
| 12.8 | 36 | 2500 | 2 | polyimide |
When out of stock
21 Business Days
|
62,900JPY
(with tax 69,190JPY)
|
|
| 12.8 | 36 | 5000 | 2 | polyimide |
When out of stock
21 Business Days
|
81,900JPY
(with tax 90,090JPY)
|
|
| 15.8 | 36 | 1000 | 4 | polyimide |
stock
4
1-2 Business Days
When out of stock
21 Business Days
|
93,600JPY
(with tax 102,960JPY)
|
|
| 15.8 | 36 | 2500 | 4 | polyimide |
When out of stock
21 Business Days
|
116,400JPY
(with tax 128,040JPY)
|
|
| 15.8 | 36 | 5000 | 4 | polyimide |
When out of stock
21 Business Days
|
154,400JPY
(with tax 169,840JPY)
|
|
| 19.8 | 36 | 1000 | 6 | polyimide |
stock
3
1-2 Business Days
When out of stock
21 Business Days
|
134,100JPY
(with tax 147,510JPY)
|
|
| 19.8 | 36 | 2500 | 6 | polyimide |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
168,300JPY
(with tax 185,130JPY)
|
|
| 19.8 | 36 | 5000 | 6 | polyimide |
When out of stock
21 Business Days
|
225,300JPY
(with tax 247,830JPY)
|
|
| 22.5 | 36 | 1000 | 11 | Kapton ® |
stock
1
1-2 Business Days
When out of stock
11 Business Days
|
216,700JPY
(with tax 238,370JPY)
|
|
| 22.5 | 36 | 2500 | 11 | polyimide |
When out of stock
21 Business Days
|
297,800JPY
(with tax 327,580JPY)
|
|
| 22.5 | 36 | 5000 | 11 | polyimide |
When out of stock
21 Business Days
|
402,300JPY
(with tax 442,530JPY)
|
|
| 29 | 36 | 1000 | 15 | polyimide |
stock
10
1-2 Business Days
When out of stock
21 Business Days
|
321,200JPY
(with tax 353,320JPY)
|
|
| 29 | 36 | 2500 | 15 | polyimide |
When out of stock
21 Business Days
|
406,700JPY
(with tax 447,370JPY)
|
|
| 29 | 36 | 5000 | 15 | polyimide |
When out of stock
21 Business Days
|
549,200JPY
(with tax 604,120JPY)
|
|
| 35.6 | 36 | 1000 | 24 | polyimide |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
499,900JPY
(with tax 549,890JPY)
|
|
| 35.6 | 36 | 2500 | 24 | polyimide |
stock
3
1-2 Business Days
When out of stock
21 Business Days
|
636,700JPY
(with tax 700,370JPY)
|
|
| 35.6 | 36 | 5000 | 24 | polyimide |
When out of stock
21 Business Days
|
864,700JPY
(with tax 951,170JPY)
|
| A | C | L | Pairs of Thermocouple | Cable sheathing |
|---|---|---|---|---|
