  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Thermocouple
  4. Peripheral connection parts
  5. K thermocouple BURNDY around connecting
  6. Thermocouple K type Vacuum side Cable

Thermocouple K type Vacuum side Cable

Thermocouple K type Vacuum side Cable

▼Thermocouple K type Vacuum side cable
Thermocouple for use in ultra-high vacuum environment
Length: 1000, 2500, 5000
Connects to thermocouple feedthrough.
Temperature can be measured at the welding point of the tip.

▼Coating material
Bare wire only: No coating.
Polyimide (Kapton): Coated cable with low outgassing
Ceramic beads: Protected by insulating beads for high temperatures.

▼How to distinguish
Alumel: Magnetic, with red coloring at the cable end
Chromel: No magnetism

▼About Ceramic bead cables
The end of the cable has a Y-terminal to prevent beads from falling off and for identification purposes. When using the cable, please cut off the Y-terminal and crimp a socket contact or the like.
For positive (Chromel) cables, one side of the Y-terminal is cut off.
The Y-terminal is not cut off for the minus (Alumel).

▼Options
Socket contacts and inserts are also available (List)
Please contact us for the length change of cables and sheathed cables. Please contact us by clicking the "Inquiry" button on the right side of the page.

Click here to request precision cleaning.

see next
Basic Information
type Thermocouple type K
conductor Chromel ®, alumel ®
Pairs of Thermocouple 1
Vacuum and Air For vacuum
RoHS2 corresponding ○
Inquiry for this subcategory

We have 25 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

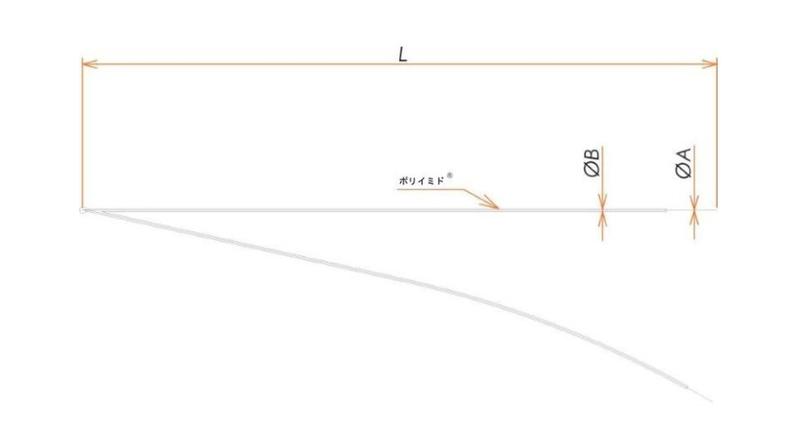

 Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
Stock & Delivery
front.product.price
front.product.tax_included2
13126
VK3K1000/XXA
φ 0.32 0.32 0.36 1000 polyimide 250℃ -75℃ None
18613
VK3K1000X/SA
φ 0.32 0.36 0.72 1000 polyimide 150℃ -55℃ One side: socket contact
18853
VK3K1000XA/RT2

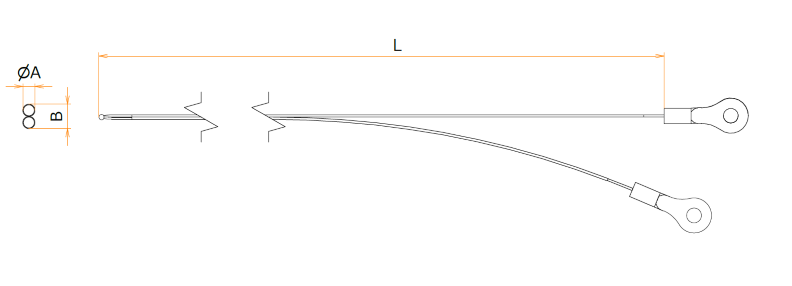

φ 0.32 0.36 0.72 1000 polyimide 250℃ -75℃ One side: M2 crimp terminal On
18854
VK3K1000XA/RT3
φ 0.32 0.36 0.72 1000 polyimide 250℃ -75℃ One side: M3 crimp terminal On
18855
VK3K1000XA/RT4
φ 0.32 0.36 0.72 1000 polyimide 250℃ -75℃ 片側：M4圧着端子　片側：なし
13127
VK3K2500/XXA
φ 0.32 0.32 0.36 2500 polyimide 250℃ -75℃ None
18614
VK3K2500X/SA
φ 0.32 0.36 0.72 2500 polyimide 150℃ -55℃ One side: socket contact
13128
VK3K5000/XXA
φ 0.32 0.32 0.36 5000 polyimide 250℃ -75℃ None
18615
VK3K5000X/SA
φ 0.32 0.36 0.72 5000 polyimide 150℃ -55℃ One side: socket contact
14512
VK6K1000/XX
φ 0.65 0.65 0.77 1000 Kapton ® 250℃ -75℃ None
18843
VK6K2500/XX
φ 0.65 0.65 0.77 2500 Kapton ® 250℃ -75℃ None
18844
VK6K5000/XX
φ 0.65 0.65 0.77 5000 Kapton ® 250℃ -75℃ None
14523
VK3A1000/XX
φ 0.32 0.32 3.2 1000 Steatite ceramic 1000℃ -200℃ None
14524
VK6A1000/XX
φ 0.65 0.65 3.2 1000 Steatite ceramic 1000℃ -200℃ None
12174
VK3A2000/XX
φ 0.32 0.32 3.2 2000 Steatite ceramic 1000℃ -200℃ None
17757
VK3A2500/XX
φ 0.32 0.32 3.2 2500 Steatite ceramic 1000℃ -200℃ None
18847
VK6A2500/XX
φ 0.65 0.65 3.2 2500 Steatite ceramic 1000℃ -200℃ None
15590
VK3A5000/XX
φ 0.32 0.32 3.2 5000 Steatite ceramic 1000℃ -200℃ None
18848
VK6A5000/XX
φ 0.65 0.65 3.2 5000 Steatite ceramic 1000℃ -200℃ None
14519
VK3B1000/XX
φ 0.32 0.32 - 1000 NONE 1000℃ -200℃ None
14520
VK6B1000/XX
φ 0.65 0.65 - 1000 NONE 1000℃ -200℃ None
17756
VK3B2500/XX
φ 0.32 0.32 - 2500 NONE 1000℃ -200℃ None
18845
VK6B2500/XX
φ 0.65 0.65 - 2500 NONE 1000℃ -200℃ None
15582
VK3B5000/XX
φ 0.32 0.32 - 5000 NONE 1000℃ -200℃ None
18846
VK6B5000/XX
φ 0.65 0.65 - 5000 NONE 1000℃ -200℃ None
Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
To detail page Contact Us

Filter by model

stock status

L

Wire / cable diameter

Cable sheathing

terminal processing

熱電対 Kタイプ　真空側 ケーブル admin.label.item.catalog_image
Connection parts
Connection parts Thermocouple K Thermocouple Chromel socket contacts φ1.6
Connection parts Thermocouple K Thermocouple Chromel socket contacts φ1.6
Product code :15758
Model:SVC16CHA
Connection parts Thermocouple K Thermocouple alumel socket contacts φ1.6
Connection parts Thermocouple K Thermocouple alumel socket contacts φ1.6
Product code :15759
Model:SVC16ALA
