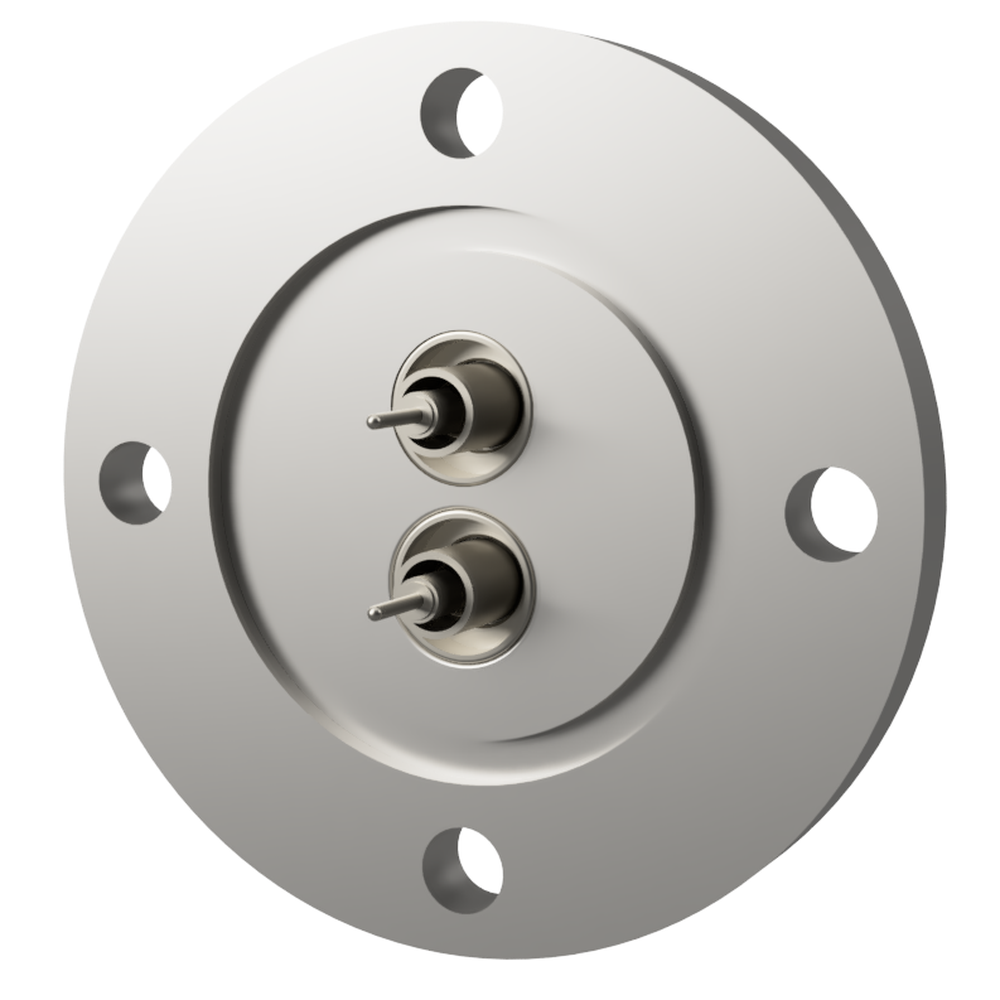

Coaxial SHV-R-F with 2 VG25 flanges

同軸 SHV-R-F 2個付き VG25フランジ

Mouse over the image to enlarge it

同軸 SHV-R-F 2個付き VG25フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :12840 Model:G25SHRF2

Safe High Voltage
▼ Feedthrough Coaxial SHV Floating Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, SHV connector connection on atmospheric side only
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield plug mating on one side (5kV, 10kV, 20kV)
Ground shield both side plug mating (5kV)
Floating shield with plugs on both sides (5kV)

▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

Basic Information
type SHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
116,900 JPY (with tax 128,590JPY)
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
12840
G25SHRF2
- - - 25 90 8 22.5 23 20 2
When out of stock
30 Business Days
116,900JPY (with tax 128,590JPY)
同軸 SHV-R-F 2個付き VG25フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- - - 25 90 8 22.5 23 20 2
Coaxial SHV-R-F with 2 VG25 flanges
Product code :12840    Model:G25SHRF2
116,900JPY (with tax 128,590JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 SHV-R-F 2個付き VG25フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
