Feedthrough coaxial SHV-R-F floating shield one si

Feedthrough coaxial SHV-R-F floating shield one si

Safe High Voltage
▼ Feedthrough Coaxial SHV Floating Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, SHV connector connection on atmospheric side only
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Ground shield plug mating on one side (5kV, 10kV, 20kV)
Ground shield both side plug mating (5kV)
Floating shield with plugs on both sides (5kV)

▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

※ Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.

Click here to request precision cleaning.

see next
Basic Information
type SHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this subcategory

We have 27 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

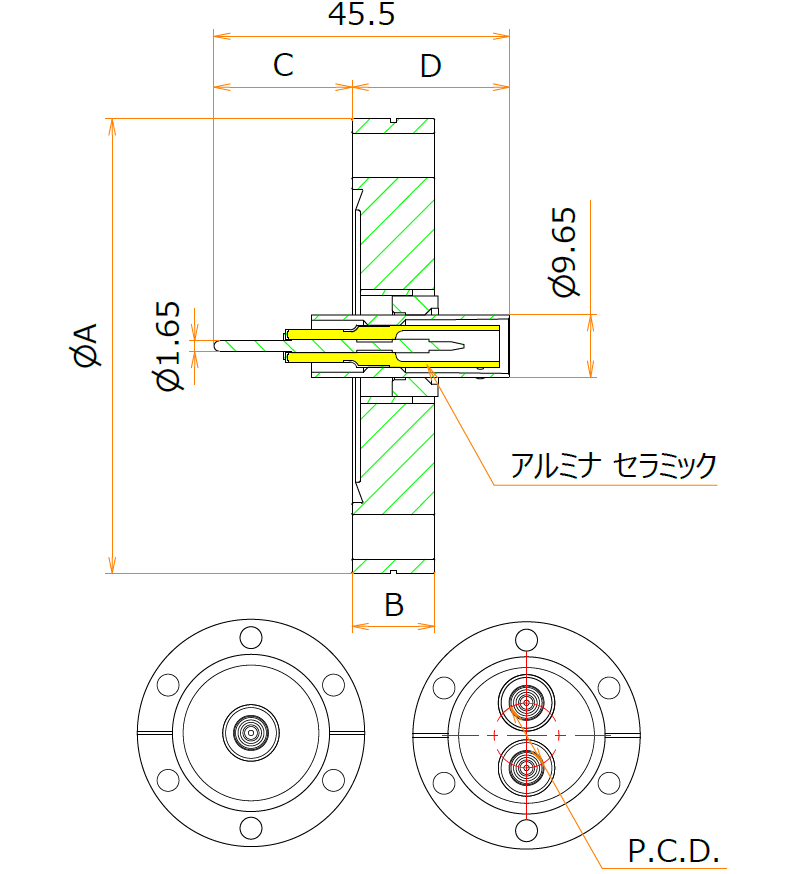

 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11652
N16SHRF1
16 - - - 30 4.8 12.5 33 - 1
stock
4 1-2 Business Days
When out of stock
21 Business Days
58,700JPY (with tax 64,570JPY)
11093
N25SHRF1
25 - - - 40 6 20 25.5 - 1
stock
3 1-2 Business Days
When out of stock
30 Business Days
58,900JPY (with tax 64,790JPY)
11180
N40SHRF1
40 - - - 55 6 20 25.5 - 1
When out of stock
30 Business Days
59,200JPY (with tax 65,120JPY)
11181
N40SHRF2
40 - - - 55 6 20 25.5 20 2
stock
1 1-2 Business Days
When out of stock
30 Business Days
114,600JPY (with tax 126,060JPY)
41057
N50SHRF1
50 - - - 75 6 20 25.5 - 1
When out of stock
30 Business Days
59,700JPY (with tax 65,670JPY)
41058
N50SHRF2
50 - - - 75 6 20 25.5 20 2
When out of stock
30 Business Days
115,100JPY (with tax 126,610JPY)
18585
N50SHRF3
50 - - - 75 6 20 25.5 28 3
When out of stock
21 Business Days
164,700JPY (with tax 181,170JPY)
18586
N50SHRF4
50 - - - 75 6 20 25.5 28 4
When out of stock
21 Business Days
209,400JPY (with tax 230,340JPY)
10633
C34SHRF1
- 34 - - 34 7.5 8.9 36.6 - 1
stock
4 1-2 Business Days
When out of stock
21 Business Days
59,700JPY (with tax 65,670JPY)
10729
C70SHRF1
- 70 - - 70 12.7 20.5 25 - 1
stock
1 1-2 Business Days
When out of stock
30 Business Days
60,900JPY (with tax 66,990JPY)
10730
C70SHRF2
- 70 - - 70 12.7 20.5 25 20 2
stock
1 1-2 Business Days
When out of stock
30 Business Days
116,300JPY (with tax 127,930JPY)
18587
C114SHRF3
- 114 - - 114 17.5 20.5 25 30 3
When out of stock
21 Business Days
171,900JPY (with tax 189,090JPY)
18588
C114SHRF4
- 114 - - 114 17.5 20.5 25 30 4
When out of stock
21 Business Days
216,600JPY (with tax 238,260JPY)
11653
F20SHRF1
- - 20 - 80 8 22.5 23 - 1
When out of stock
30 Business Days
60,700JPY (with tax 66,770JPY)
11654
F25SHRF1
- - 25 - 90 8 22.5 23 - 1
When out of stock
30 Business Days
61,500JPY (with tax 67,650JPY)
12837
F25SHRF2
- - 25 - 90 8 22.5 23 20 2
When out of stock
30 Business Days
116,900JPY (with tax 128,590JPY)
11655
F40SHRF1
- - 40 - 105 10 22.5 23 - 1
When out of stock
30 Business Days
62,500JPY (with tax 68,750JPY)
10859
F40SHRF2
- - 40 - 105 10 22.5 23 20 2
When out of stock
30 Business Days
117,900JPY (with tax 129,690JPY)
12838
F40SHRF3
- - 40 - 105 10 22.5 23 25 3
When out of stock
30 Business Days
167,500JPY (with tax 184,250JPY)
12839
F40SHRF4
- - 40 - 105 10 22.5 23 30 4
When out of stock
30 Business Days
212,200JPY (with tax 233,420JPY)
11656
G20SHRF1
- - - 20 80 8 22.5 23 - 1
stock
1 1-2 Business Days
When out of stock
30 Business Days
60,700JPY (with tax 66,770JPY)
11657
G25SHRF1
- - - 25 90 8 22.5 23 - 1
When out of stock
30 Business Days
61,500JPY (with tax 67,650JPY)
12840
G25SHRF2
- - - 25 90 8 22.5 23 20 2
When out of stock
30 Business Days
116,900JPY (with tax 128,590JPY)
11658
G40SHRF1
- - - 40 105 10 22.5 23 - 1
When out of stock
30 Business Days
62,500JPY (with tax 68,750JPY)
11659
G40SHRF2
- - - 40 105 10 22.5 23 20 2
When out of stock
30 Business Days
117,900JPY (with tax 129,690JPY)
12841
G40SHRF3
- - - 40 105 10 22.5 23 25 3
When out of stock
30 Business Days
167,500JPY (with tax 184,250JPY)
12842
G40SHRF4
- - - 40 105 10 22.5 23 30 4
When out of stock
30 Business Days
212,200JPY (with tax 233,420JPY)
NW/KF ICF VF VG A B C D P.C.D The number of electrode
To detail page Contact Us

Filter by model

stock status

Flange

The number of electrode

フィードスルー 同軸 SHV-R-F フローティングシールド 片側プラグ嵌合 admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Socket Contacts φ1.6 Coaxial/High Voltage Crimped type 10 pcs.
Socket Contacts φ1.6 Coaxial/High Voltage Crimped type 10 pcs.
Product code :15776
Model:SVC16-L18
7,300JPY (with tax 8,030JPY)
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-R/SHV-R-F
Connection parts Vacuum side Cable with connector on one side L=1000 for SHV-R/SHV-R-F
Product code :14435
Model:VCK1000X/SHJ
31,300JPY (with tax 34,430JPY)
For connecting parts atmosphere side plug SHV
For connecting parts atmosphere side plug SHV
Product code :10002
Model:ASP-SHV
3,900JPY (with tax 4,290JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
Connection parts air-side cable SHV for RG-59/U L = 1000
Connection parts air-side cable SHV for RG-59/U L = 1000
Product code :14449
Model:ACV1000SH/XX
500JPY (with tax 550JPY)
