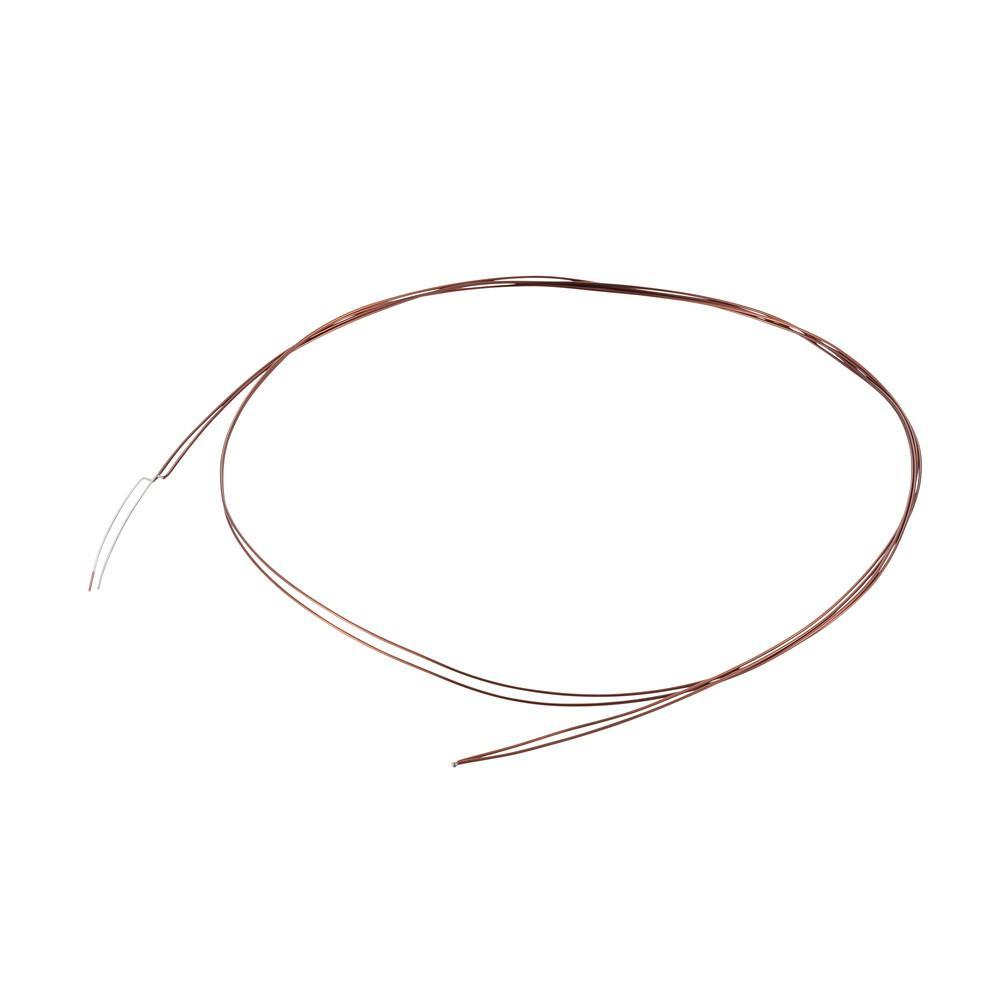

Product code :18843 Model:VK6K2500/XX

▼Thermocouple K type Vacuum side cable
Thermocouple for use in ultra-high vacuum environment
Length: 1000, 2500, 5000
Connects to thermocouple feedthrough.
Temperature can be measured at the welding point of the tip.

▼Coating material
Bare wire only: No coating.
Polyimide (Kapton): Coated cable with low outgassing
Ceramic beads: Protected by insulating beads for high temperatures.

▼How to distinguish
Alumel: Magnetic, with red coloring at the cable end
Chromel: No magnetism

▼About Ceramic bead cables
The end of the cable has a Y-terminal to prevent beads from falling off and for identification purposes. When using the cable, please cut off the Y-terminal and crimp a socket contact or the like.
For positive (Chromel) cables, one side of the Y-terminal is cut off.
The Y-terminal is not cut off for the minus (Alumel).

▼Options
Socket contacts and inserts are also available (List)
Please contact us for the length change of cables and sheathed cables. Please contact us by clicking the "Inquiry" button on the right side of the page.

Click here to request precision cleaning.

Basic Information
type Thermocouple type K
conductor Chromel ®, alumel ®
Pairs of Thermocouple 1
Vacuum and Air For vacuum
RoHS2 corresponding ○
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
Stock & Delivery
front.product.price
front.product.tax_included2
18843
VK6K2500/XX
φ 0.65 0.65 0.77 2500 Kapton ® 250℃ -75℃ None
接続部品 真空側 K熱電対 カプトン®被覆 素線 先端溶接 φ0.65 用 L=2500 admin.label.item.size_image
Wire / cable diameter A B L Cable sheathing Maximum temperature The lowest temperature terminal processing
φ 0.65 0.65 0.77 2500 Kapton ® 250℃ -75℃ None
Vacuum side K thermocouple Kapton® coated bare wire tip welding for φ0.65 L=2500
Product code :18843    Model:VK6K2500/XX
