  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Thermocouple
  4. T thermocouple
  5. T thermocouple BURNDY type
  6. T Thermocouple BURNDY 6-pair VG50 Flange Unguided

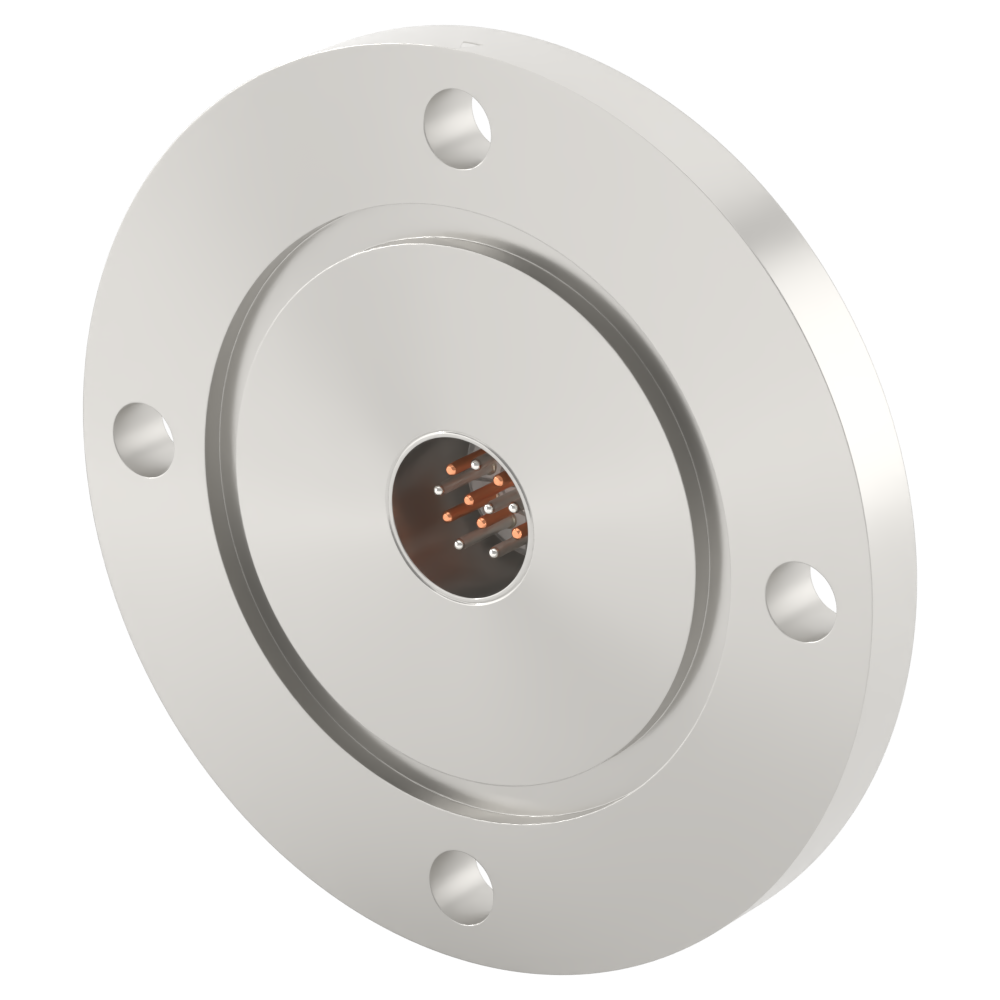

T Thermocouple BURNDY 6-pair VG50 Flange Unguided

T熱電対 BURNDY 6対 VG50 フランジ ガイドなし

Mouse over the image to enlarge it

T熱電対 BURNDY 6対 VG50 フランジ ガイドなし
share the productshare the product
Facebook
LINE
Twitter
Product code :12647 Model:G50TCT6MB

▼BURNDY Thermocouple T Type
Can be mated with bayonet-locking plug
T Type (Copper Constantan®) for temperature measurement
T type is often used in low temperature range
Easy to connect, even in difficult-to-see locations, simply insert along the guide groove to align the orientation
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services.
※ The reference allowable current value for constantan electrodes is 5A (not guaranteed).

▼ The following types are standardized (List)
Pairs: 2, 4, 6, 11
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Other types are available from here.

▼ Custom-made products are also available.
We also accept multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

Basic Information
Pairs of Thermocouple 6
type Thermocouple T type
Withstand voltage: DC Milli
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Copper / constantan ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Inquiry for this product
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
12647
G50TCT6MB
- - - 50 120 10 35 Only flanged terminal
T熱電対 BURNDY 6対 VG50 フランジ ガイドなし admin.label.item.size_image
NW/KF ICF VF VG A B D The contents of goods
- - - 50 120 10 35 Only flanged terminal
T Thermocouple BURNDY 6-pair VG50 Flange Unguided
Product code :12647    Model:G50TCT6MB
Contact Us

Filter by model

フランジ

商品内容

T熱電対 BURNDY 6対 VG50 フランジ ガイドなし admin.label.item.catalog_image
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Thermocouple For T thermocouple Copper Socket contact for φ1.6 (without lance)
Thermocouple For T thermocouple Copper Socket contact for φ1.6 (without lance)
Product code :11367
Model:SVC16CUNL
Thermocouple For T thermocouple Constantan socket contact for φ1.6 (without lance)
Thermocouple For T thermocouple Constantan socket contact for φ1.6 (without lance)
Product code :11368
Model:SVC16CTNL
Connection piece vacuum side T thermocouple Kapton coated wire tip welding φ0.32 L = 1000
Connection piece vacuum side T thermocouple Kapton coated wire tip welding φ0.32 L = 1000
Product code :14513
Model:VT3K1000/XX
Connection part Vacuum side T thermocouple bare wire tip welding for φ0.32 L=1000
Connection part Vacuum side T thermocouple bare wire tip welding for φ0.32 L=1000
Product code :14521
Model:VT3B1000/XX
Connecting parts Vacuum side T thermocouple Ceramic beads Bare wire tip welding for φ0.32 L=10
Connecting parts Vacuum side T thermocouple Ceramic beads Bare wire tip welding for φ0.32 L=10
Product code :14525
Model:VT3A1000/XX
Connection parts ceramic beads O.D. 3.2 / I.D. For 1.4
Connection parts ceramic beads O.D. 3.2 / I.D. For 1.4
Product code :12275
Model:CB3214
L connecting parts thermocouple ceramic insulating tube two holes φ0.32 = 100
L connecting parts thermocouple ceramic insulating tube two holes φ0.32 = 100
Product code :14527
Model:CT1504H2L100
Related products
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Hexagon socket BOLT/NUT/WASHER for VF/VG40 and 50 25 pairs
Product code :25550
Model:BNW-M8X35LB
V70 O-ring for Viton® VF/VG50
V70 O-ring for Viton® VF/VG50
Product code :20265
Model:V70
VF50 Blank flange
VF50 Blank flange
Product code :20269
Model:VF50BK
