Coaxial BNC-R with 3 pcs ICF70 Flange

同軸 BNC-R 3個付き ICF70 フランジ

Mouse over the image to enlarge it

同軸 BNC-R 3個付き ICF70 フランジ
share the productshare the product
Facebook
LINE
Twitter
Product code :10300 Model:C70BR3

Bayonet Naval Connectors
▼ Feedthrough Coaxial BNC Ground Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, BNC connector connection on atmospheric side only
M2 threaded electrode tip
Connection flanges are standardized as NW/KF, ICF, JIS-VF, and JIS-VG

▼ In addition, the following types are standardized
Floating shield
No screw processing
Plug mating on both sides
High voltage 5kV without screw processing

▼ Custom-made products are also available.
We can also accept special flange mounting with different number of poles and various types of terminal combinations.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

Basic Information
type BNC
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
Insulation resistance value 10⁹ ohm
frequency 100 MHz
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
78,600 JPY (with tax 86,460JPY)
stock
3
1-2 Business Days
waiting for completion
2
Arrival on Feb 03,2025
When out of stock
30 Business Days
Inquiry for this product
RoHS2 Download
share the productshare the product
Facebook
LINE
Twitter
front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
10300
C70BR3
- 70 - - 70 12.7 15.8 28 24 3
stock
3 1-2 Business Days
waiting for completion
2 Arrival on Feb 03,2025
When out of stock
30 Business Days
78,600JPY (with tax 86,460JPY)

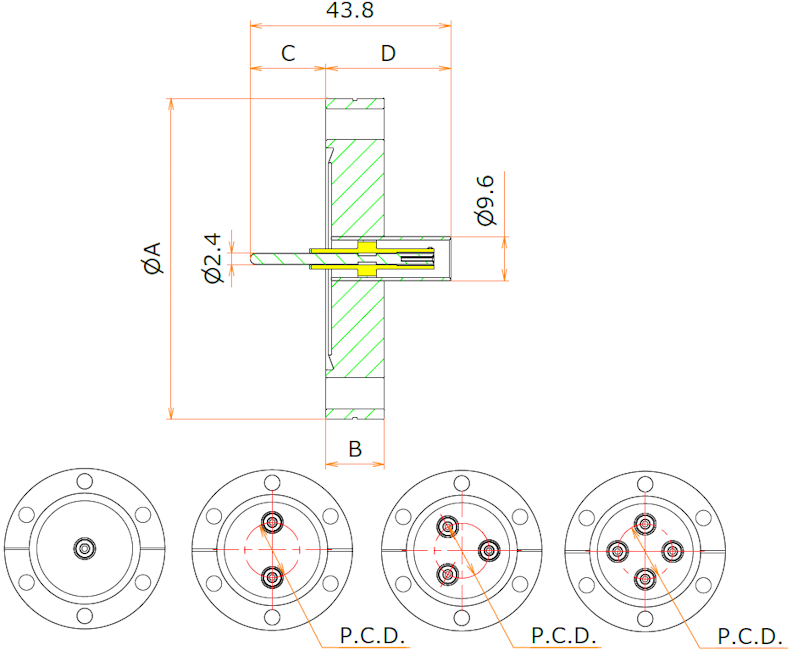

同軸 BNC-R 3個付き ICF70 フランジ admin.label.item.size_image
NW/KF ICF VF VG A B C D P.C.D The number of electrode
- 70 - - 70 12.7 15.8 28 24 3
Coaxial BNC-R with 3 pcs ICF70 Flange
Product code :10300    Model:C70BR3
78,600JPY (with tax 86,460JPY)
Contact Us

Filter by model

フランジ

電極数

同軸 BNC-R 3個付き ICF70 フランジ admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
