  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. High-voltage
  4. Feedthrough high-voltage and medium current 3kV-35A

Feedthrough high-voltage and medium current 3kV-35A Product List Feedthrough

Products 142Matter (61 ~80 )

Displayed results
Display switching
  • Product code :11247
    Model:C23K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    ICF 70
    A 70
    B 13
    C 128.5
    D 61.5
    The number of electrode 1
    26,900JPY (with tax 29,590JPY)
    Inquiry for this product
  • Product code :12121
    Model:C23K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    ICF 70
    A 70
    B 13
    C 128.5
    D 61.5
    P.C.D 20
    The number of electrode 2
    48,500JPY (with tax 53,350JPY)
    Inquiry for this product
  • Product code :12122
    Model:C23K35A3CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    ICF 70
    A 70
    B 13
    C 128.5
    D 61.5
    P.C.D 23
    The number of electrode 3
    64,800JPY (with tax 71,280JPY)
    Inquiry for this product
  • Product code :12123
    Model:C23K35A4CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    ICF 70
    A 70
    B 13
    C 128.5
    D 61.5
    P.C.D 25
    The number of electrode 4
    79,300JPY (with tax 87,230JPY)
    Inquiry for this product

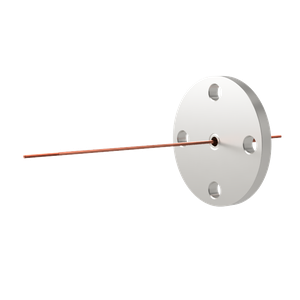

  • Product code :11288
    Model:F23K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 20
    A 80
    B 8
    C 130.5
    D 59.5
    The number of electrode 1
    26,700JPY (with tax 29,370JPY)
    Inquiry for this product
  • Product code :12693
    Model:F23K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 20
    A 80
    B 8
    C 130.5
    D 59.5
    The number of electrode 2
    48,300JPY (with tax 53,130JPY)
    Inquiry for this product
  • Product code :11316
    Model:F33K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 25
    A 90
    B 8
    C 130.5
    D 59.5
    The number of electrode 1
    27,500JPY (with tax 30,250JPY)
    Inquiry for this product
  • Product code :12124
    Model:F33K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 25
    A 90
    B 8
    C 130.5
    D 59.5
    The number of electrode 2
    49,100JPY (with tax 54,010JPY)
    Inquiry for this product
  • Product code :11348
    Model:F43K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 40
    A 105
    B 10
    C 130.5
    D 59.5
    The number of electrode 1
    28,500JPY (with tax 31,350JPY)
    Inquiry for this product
  • Product code :12125
    Model:F43K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 40
    A 105
    B 10
    C 130.5
    D 59.5
    The number of electrode 2
    50,100JPY (with tax 55,110JPY)
    Inquiry for this product
  • Product code :11384
    Model:F53K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 50
    A 120
    B 10
    C 130.5
    D 59.5
    The number of electrode 1
    29,700JPY (with tax 32,670JPY)
    Inquiry for this product
  • Product code :12128

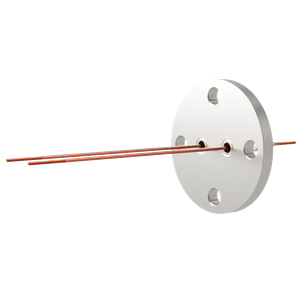

    Model:F53K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VF 50
    A 120
    B 10
    C 130.5
    D 59.5
    The number of electrode 2
    51,300JPY (with tax 56,430JPY)
    Inquiry for this product
  • Product code :11402
    Model:G23K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 20
    A 80
    B 8
    C 130.5
    D 59.5
    The number of electrode 1
    26,700JPY (with tax 29,370JPY)
    Inquiry for this product
  • Product code :12710
    Model:G23K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 20
    A 80
    B 8
    C 130.5
    D 59.5
    The number of electrode 2
    48,300JPY (with tax 53,130JPY)
    Inquiry for this product
  • Product code :11429

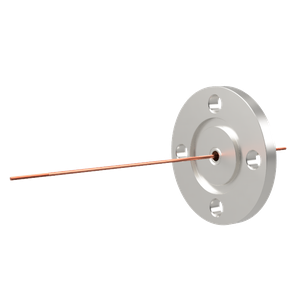

    Model:G33K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 25
    A 90
    B 8
    C 130.5
    D 59.5
    The number of electrode 1
    27,500JPY (with tax 30,250JPY)
    Inquiry for this product
  • Product code :12131
    Model:G33K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 25
    A 90
    B 8
    C 130.5
    D 59.5
    The number of electrode 2
    49,100JPY (with tax 54,010JPY)
    Inquiry for this product
  • Product code :11461
    Model:G43K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 40
    A 105
    B 10
    C 130.5
    D 59.5
    The number of electrode 1
    28,500JPY (with tax 31,350JPY)
    Inquiry for this product
  • Product code :12132
    Model:G43K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 40
    A 105
    B 10
    C 130.5
    D 59.5
    The number of electrode 2
    50,100JPY (with tax 55,110JPY)
    Inquiry for this product
  • Product code :11497
    Model:G53K35A1CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 50
    A 120
    B 10
    C 130.5
    D 59.5
    The number of electrode 1
    29,700JPY (with tax 32,670JPY)
    Inquiry for this product

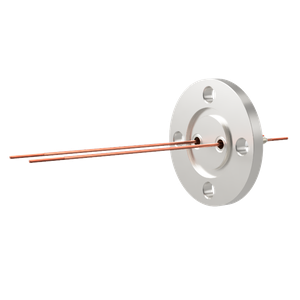

  • Product code :12135
    Model:G53K35A2CUM2N

    ▼ High voltage feedthroughs
    Used in applications such as power, heaters, lamps, etc.
    With threaded tip for convenient connection
    Voltage 3kV to 30kV DC, current 3A to 808A
    Standardized electrode materials: oxygen-free copper, oxygen-free copper + nickel plating, and stainless steel
    Number of electrodes: 1, 2, 3, 4
    Four SUS nuts (M2) for connection are included per electrode

    ▼The following types are standardized (list)
    Electrode with threading: Oxygen-free copper, Oxygen-free copper + Nickel plating, SUS
    Compact type (without electrode threading): Oxygen-free copper (5kV 22A), SUS (5kV 3A)
    Silicon plug type: Oxygen-free copper (3kV 35A, 5kV 110A)
    Flange: NW/KF, ICF, JIS-VF, JIS-VG
    Protective cover for voltage terminals corresponding to ICF70 is also available.

    ▼ Custom-made products are also available.
    We can quickly respond to changes in terminal arrangement, quantity changes, flange standard size changes, welding of multiple products, and custom-ordered products. Please contact us by clicking the "Inquiry" button on the right side of this page.

    For precision cleaning requests, please click here.

    type High-voltage and medium curren
    electrode Oxygen-free copper + Ni platin
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 3 kV
    Electric current / 1 pc. 35 A
    Feedthrough 3 kV / 35 A
    VG 50
    A 120
    B 10
    C 130.5
    D 59.5
    The number of electrode 2
    51,300JPY (with tax 56,430JPY)
    Inquiry for this product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください!

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
