Micro D-Sub (MIL-DTL-83513) Product List Feedthrough
Products 69Matter (61 ~69 )
- Displayed results
- Display switching
-
Product code :16156
Model:C70MMD511▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec ICF 70 The number of electrode 51 A 70 B 12.7 The contents of goods Only flanged terminal -

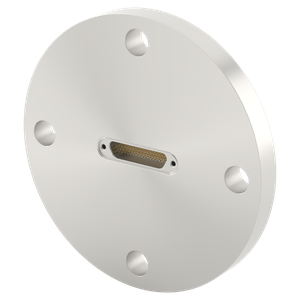

Product code :17496
Model:F40MMD511▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VF 40 The number of electrode 51 A 105 B 10 The contents of goods Only flanged terminal -

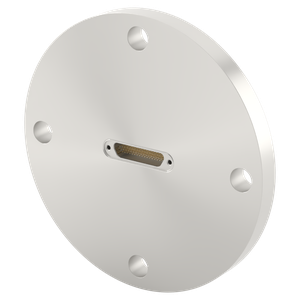

Product code :17497
Model:F50MMD511▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VF 50 The number of electrode 51 A 120 B 10 The contents of goods Only flanged terminal -

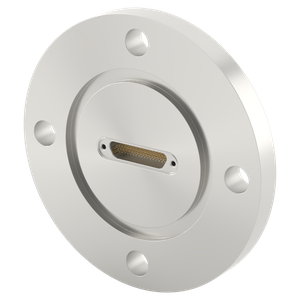

Product code :17498
Model:G40MMD511▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VG 40 The number of electrode 51 A 105 B 10 The contents of goods Only flanged terminal
-

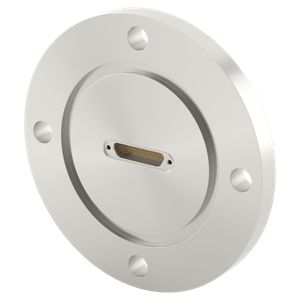

Product code :17499
Model:G50MMD511▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VG 50 The number of electrode 51 A 120 B 10 The contents of goods Only flanged terminal -

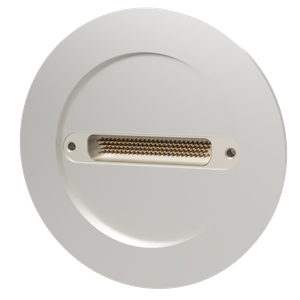

Product code :17500
Model:N50MMD1001▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec NW/KF 50 The number of electrode 100 A 75 B 6 The contents of goods Only flanged terminal -
Product code :16157
Model:C114MMD1001▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec ICF 114 The number of electrode 100 A 114 B 17.5 The contents of goods Only flanged terminal -

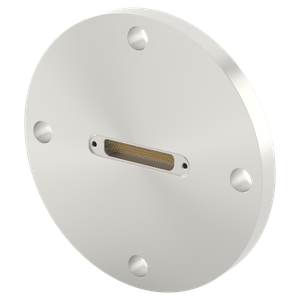

Product code :17501
Model:F50MMD1001▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VF 50 The number of electrode 100 A 120 B 10 The contents of goods Only flanged terminal
-

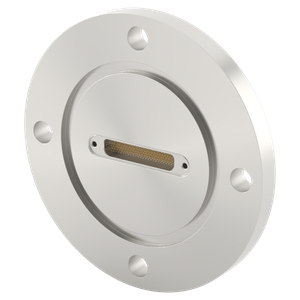

Product code :17502
Model:G50MMD1001▼ Feedthrough Multi-Pin Micro D-Sub (MIL-DTL-83513)
Micro D-sub connector mates with MIL-DTL-83513 equivalent
300V 3A compatible
Pin shape on the vacuum side, socket shape on the atmosphere side
Straight wiring inside the terminal
Atmospheric side connector is here.
▼The following types are standardized (list)
Number of PINs: 9, 15, 21, 25, 31, 37, 51, 100
Flange: ICF, NW/KF, JIS-VF, JIS-VG
▼Custom-made products are also available.
We can change the flange, the number of terminals, and combine multiple types of terminals.
Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.type Micro D-Sub (MIL-DTL-83513) Electric current / 1 pc. 3 A Withstand voltage: DC 300 V Connection type Micro D-Sub (MIL-DTL-83513) electrode beryllium copper Flange material SUS 304L Insulator ceramic Maximum temperature 450℃ The lowest temperature -269℃ Leak rate <1x10<sup>-8</sup>Pa･㎥/sec VG 50 The number of electrode 100 A 120 B 10 The contents of goods Only flanged terminal
