Vacuum Piping Parts Gauge Port/Wilson Seal　Product List Vacuum Component 

Products　203Matter (21 ~40 )

Displayed results
Display switching
  • ゲージポート/ウィルソンシール交換用OリングΦ1/1用
    Gauge port/Wilson seal replacement O-ring for Φ1/1
    Product code :25495
    Model:RO3GP1/1

    Replacement O-ring for gauge port
    For gauge port.
    Material: Viton®.
    Hole diameter (inch): 2, 1-1/2, 1-1/4, 1, 3/4, 1/2, 3/8, 1/4, 1/8
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Number of pieces: 1

    Others
    If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

    For precision cleaning requests, please click here.

    RoHS2 corresponding ○
    Connection diameter (φ) 1/1 inch
    purpose gauge port
    1,300JPY (with tax 1,430JPY)
    Inquiry for this product
  • VF20 ゲージポート1/8インチ（段付き）

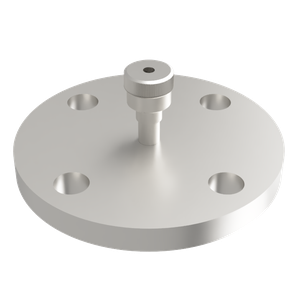

    VF20 Gauge port 1/8" (stepped)
    Product code :27287
    Model:VF20GP1/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 20
    Connection diameter (φ) 1/8 inch
    A 80
    B 14.3
    E 3.18
    L 32
    39,800JPY (with tax 43,780JPY)
    Inquiry for this product
  • VF25 ゲージポート1/8インチ（段付き）

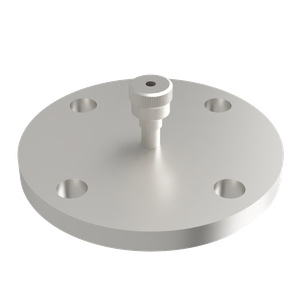

    VF25 Gauge port 1/8" (stepped)
    Product code :27292
    Model:VF25GP1/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 25
    Connection diameter (φ) 1/8 inch
    A 90
    B 14.3
    E 3.18
    L 32
    42,500JPY (with tax 46,750JPY)
    Inquiry for this product
  • VF40 ゲージポート1/8インチ（段付き）

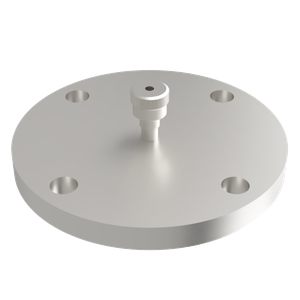

    VF40 Gauge port 1/8" (stepped)
    Product code :27297
    Model:VF40GP1/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 40
    Connection diameter (φ) 1/8 inch
    A 105
    B 14.3
    E 3.18
    L 32
    45,900JPY (with tax 50,490JPY)
    Inquiry for this product
  • VF50 ゲージポート1/8インチ（段付き）

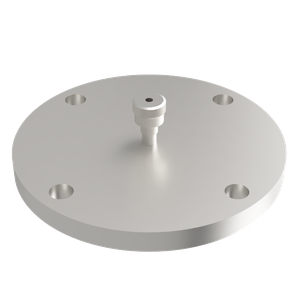

    VF50 Gauge port 1/8" (stepped)
    Product code :27302
    Model:VF50GP1/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 50
    Connection diameter (φ) 1/8 inch
    A 120
    B 14.3
    E 3.18
    L 32
    48,300JPY (with tax 53,130JPY)
    Inquiry for this product
  • VF20 ゲージポート1/4インチ（段付き）

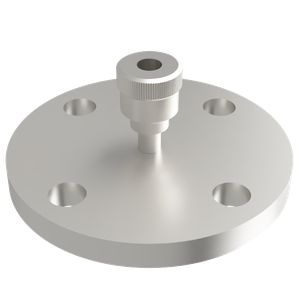

    VF20 Gauge port 1/4" (stepped)
    Product code :27288
    Model:VF20GP1/4

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 20
    Connection diameter (φ) 1/4 inch
    A 80
    B 17.5
    E 6.35
    L 35
    40,300JPY (with tax 44,330JPY)
    Inquiry for this product
  • VF25 ゲージポート1/4インチ（段付き）

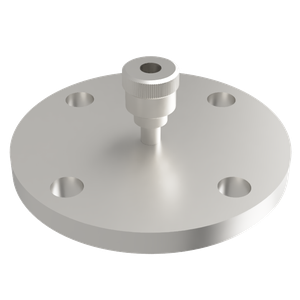

    VF25 Gauge port 1/4" (stepped)
    Product code :27293
    Model:VF25GP1/4

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 25
    Connection diameter (φ) 1/4 inch
    A 90
    B 17.5
    E 6.35
    L 35
    43,000JPY (with tax 47,300JPY)
    Inquiry for this product
  • VF40 ゲージポート1/4インチ（段付き）

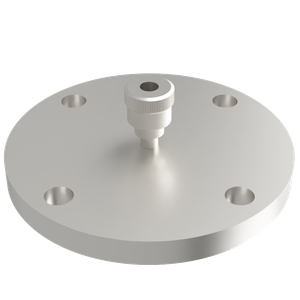

    VF40 Gauge port 1/4" (stepped)
    Product code :27298
    Model:VF40GP1/4

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 40
    Connection diameter (φ) 1/4 inch
    A 105
    B 17.5
    E 6.35
    L 35
    46,400JPY (with tax 51,040JPY)
    Inquiry for this product
  • VF50 ゲージポート1/4インチ（段付き）

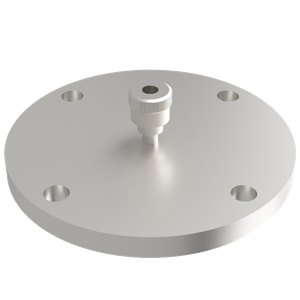

    VF50 Gauge port 1/4" (stepped)
    Product code :27303
    Model:VF50GP1/4

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 50
    Connection diameter (φ) 1/4 inch
    A 120
    B 17.5
    E 6.35
    L 35
    48,800JPY (with tax 53,680JPY)
    Inquiry for this product

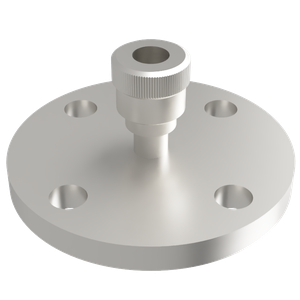

  • VF20 ゲージポート3/8インチ（段付き）
    VF20 Gauge port 3/8" (stepped)
    Product code :27289
    Model:VF20GP3/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 20
    Connection diameter (φ) 3/8 inch
    A 80
    B 20.6
    E 9.53
    L 38
    44,400JPY (with tax 48,840JPY)
    Inquiry for this product

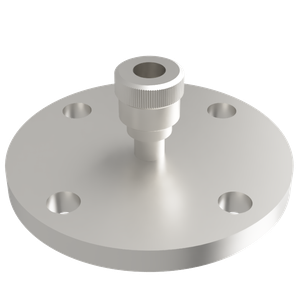

  • VF25 ゲージポート3/8インチ（段付き）
    VF25 Gauge port 3/8" (stepped)
    Product code :27294
    Model:VF25GP3/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 25
    Connection diameter (φ) 3/8 inch
    A 90
    B 20.6
    E 9.53
    L 38
    47,200JPY (with tax 51,920JPY)
    Inquiry for this product

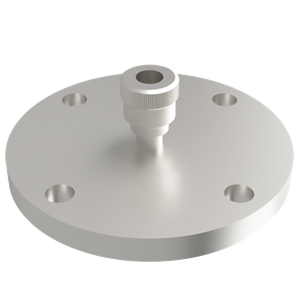

  • VF40 ゲージポート3/8インチ（段付き）
    VF40 Gauge port 3/8" (stepped)
    Product code :27299
    Model:VF40GP3/8

    ▼JIS-VF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size(JIS)：20，25，40，50
    Nominal diameter is the outside diameter of the pipe to be inserted. e.g.) GP10 → φ10 pipe can be inserted.

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    VF 40
    Connection diameter (φ) 3/8 inch
    A 105
    B 20.6
    E 9.53
    L 38
    49,500JPY (with tax 54,450JPY)
    Inquiry for this product

stock status

Filter by specification
products： 203Matter

Flange

Connection diameter (φ)

purpose

Please customers by all means contact us we can not find your favorite product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください！

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
