  1. Cosmotec for Vacuum Components
  2. Vacuum Component
  3. NW / KF standard
  4. Vacuum Piping Parts Gauge Port/Wilson Seal

Vacuum Piping Parts Gauge Port/Wilson Seal　Product List Vacuum Component 

Products　133Matter (21 ~40 )

Displayed results
Display switching
  • ゲージポート/ウィルソンシール交換用OリングΦ1/1用
    Gauge port/Wilson seal replacement O-ring for Φ1/1
    Product code :25495
    Model:RO3GP1/1

    Replacement O-ring for gauge port
    For gauge port.
    Material: Viton®.
    Hole diameter (inch): 2, 1-1/2, 1-1/4, 1, 3/4, 1/2, 3/8, 1/4, 1/8
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Number of pieces: 1

    Others
    If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

    For precision cleaning requests, please click here.

    RoHS2 corresponding ○
    Connection diameter (φ) 1/1 inch
    purpose gauge port
    1,100JPY (with tax 1,210JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ1/8 （ボアードスルー）
    NW16 Gauge port/Wilson seal 1/8 dia. (bored through)
    Product code :25434
    Model:NW16GP1/8BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 1/8 inch
    A 30
    B 14.3
    E 3.18
    L 34
    30,100JPY (with tax 33,110JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ1/4（ボアードスルー）
    NW16 Gauge port/Wilson seal ø1/4 (bored through)
    Product code :23517
    Model:NW16GP1/4BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 1/4 inch
    A 30
    B 28.5
    E 6.4
    L 36
    30,100JPY (with tax 33,110JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ3/8（ボアードスルー）
    NW16 Gauge port/Wilson seal ø3/8 (bored through)
    Product code :23518
    Model:NW16GP3/8BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 3/8 inch
    A 30
    B 22.2
    E 9.5
    L 36
    31,100JPY (with tax 34,210JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ1/2（ボアードスルー）
    NW16 Gauge port/Wilson seal ø1/2 (bored through)
    Product code :23519
    Model:NW16GP1/2BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 1/2 inch
    A 30
    B 22.2
    E 12.7
    L 37
    31,700JPY (with tax 34,870JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ2（ボアードスルー）
    NW16 Gauge port/Wilson seal ø2 (bored through)
    Product code :23068
    Model:NW16GP2BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 2 mm
    A 30
    B 12
    E 2
    L 30
    27,100JPY (with tax 29,810JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ3（ボアードスルー）
    NW16 Gauge port/Wilson seal ø3 (bored through)
    Product code :23069
    Model:NW16GP3BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 3 mm
    A 30
    B 14
    E 3
    L 40
    27,400JPY (with tax 30,140JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ4（ボアードスルー）
    NW16 Gauge port/Wilson seal ø4 (bored through)
    Product code :23070
    Model:NW16GP4BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 4 mm
    A 30
    B 15
    E 4
    L 40
    27,700JPY (with tax 30,470JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ5（ボアードスルー）
    NW16 Gauge port/Wilson seal ø5 (bored through)
    Product code :23071
    Model:NW16GP5BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 5 mm
    A 30
    B 15
    E 5
    L 45
    29,100JPY (with tax 32,010JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ6（ボアードスルー）
    NW16 Gauge port/Wilson seal ø6 (bored through)
    Product code :23072
    Model:NW16GP6BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 6 mm
    A 30
    B 18
    E 6
    L 45
    29,700JPY (with tax 32,670JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ8（ボアードスルー）

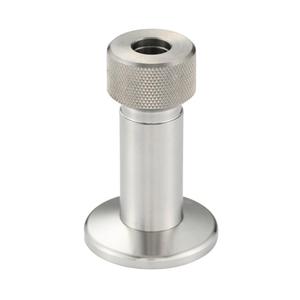

    NW16 Gauge port/Wilson seal ø8 (bored through)
    Product code :23073
    Model:NW16GP8BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 8 mm
    A 30
    B 19
    E 8
    L 46
    31,100JPY (with tax 34,210JPY)
    Inquiry for this product
  • NW16 ゲージポート/ウィルソンシール φ10（ボアードスルー）
    NW16 Gauge port/Wilson seal ø10 (bored through)
    Product code :23064
    Model:NW16GP10BT

    ▼NW/KF Gauge port
    Used to introduce a vacuum gauge, tubing, etc.
    O-ring sealed inside the port
    Step type: Tubes, etc. inserted into the port are not pulled in when a vacuum is pulled out.
    Bored-through type: No step inside. Select this type when you want to introduce tubes, etc. to the inside of the chamber.
    No vacuum grease is required.
    Flange size (NW): 10, 16, 25, 40, 50

    ▼About sheathed thermocouples
    Bored-through type can be used for sheathed thermocouples.
    For φ3.2 sheath = 1/8 inch
    For φ6.4 sheath = 1/4 inch

    ▼The following types are standardized (List)
    Hole diameter (inch): 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
    Hole diameter (mm): 2, 3, 4, 5, 6, 8, 10, 12, 15, 18
    Flange: ICF, NW/KF, JIS-VF, JIS-VG
    *Gauge port stand-alone is here.

    ▼Options
    Sealing plugs are also available while not used as ports.
    We can also change the number of ports and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

    For precision cleaning requests, please click here.

    Seal / gasket material Viton ®
    body SUS 304
    RoHS2 corresponding ○
    NW/KF 16
    Connection diameter (φ) 10 mm
    A 30
    B 23
    E 10
    L 55
    31,400JPY (with tax 34,540JPY)
    Inquiry for this product

stock status

Filter by specification
products： 133Matter

Flange

Connection diameter (φ)

purpose

Please customers by all means contact us we can not find your favorite product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください！

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
