Feedthrough coaxial LM type Product List Feedthrough

Products 158Matter (21 ~40 )

Displayed results
Display switching
  • Product code :10624
    Model:C34LR2

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 34
    A 34
    B 7.5
    C 8
    D 22
    P.C.D 10
    The number of electrode 2
    104,500JPY (with tax 114,950JPY)
    Inquiry for this product
  • Product code :10692
    Model:C70LR1

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    The number of electrode 1
    55,000JPY (with tax 60,500JPY)
    Inquiry for this product
  • Product code :10693
    Model:C70LR2

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 20
    The number of electrode 2
    105,600JPY (with tax 116,160JPY)
    Inquiry for this product
  • Product code :10694
    Model:C70LR3

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 20
    The number of electrode 3
    149,300JPY (with tax 164,230JPY)
    Inquiry for this product
  • Product code :10695
    Model:C70LR4

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 22
    The number of electrode 4
    190,400JPY (with tax 209,440JPY)
    Inquiry for this product
  • Product code :10696
    Model:C70LR5

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 24
    The number of electrode 5
    224,100JPY (with tax 246,510JPY)
    Inquiry for this product
  • Product code :10697
    Model:C70LR6

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 24
    The number of electrode 6
    265,500JPY (with tax 292,050JPY)
    Inquiry for this product
  • Product code :10698
    Model:C70LR7

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    ICF 70
    A 70
    B 12.7
    C 8
    D 22
    P.C.D 24
    The number of electrode 7
    306,900JPY (with tax 337,590JPY)
    Inquiry for this product
  • Product code :11752
    Model:F20LR1

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    The number of electrode 1
    55,000JPY (with tax 60,500JPY)
    Inquiry for this product

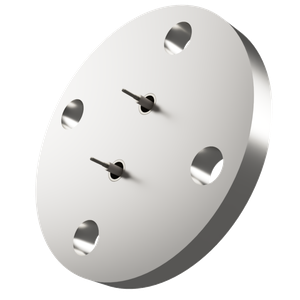

  • Product code :11753
    Model:F20LR2

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 20
    The number of electrode 2
    105,500JPY (with tax 116,050JPY)
    Inquiry for this product

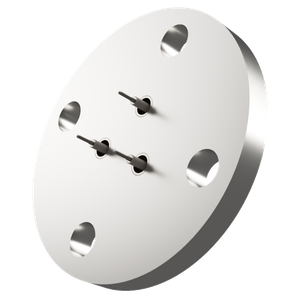

  • Product code :12886
    Model:F20LR3

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 20
    The number of electrode 3
    0JPY (with tax 0JPY)
    Inquiry for this product

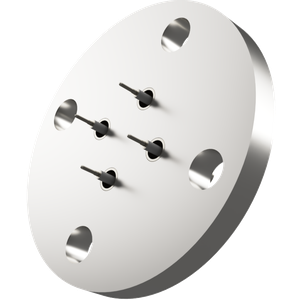

  • Product code :12887
    Model:F20LR4

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 23
    The number of electrode 4
    190,300JPY (with tax 209,330JPY)
    Inquiry for this product
  • Product code :12888
    Model:F20LR5

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 25
    The number of electrode 5
    223,600JPY (with tax 245,960JPY)
    Inquiry for this product

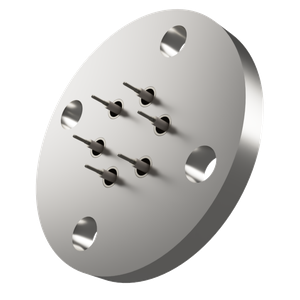

  • Product code :12889
    Model:F20LR6

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 25
    The number of electrode 6
    265,000JPY (with tax 291,500JPY)
    Inquiry for this product

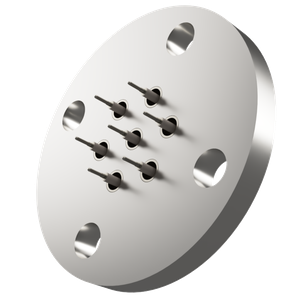

  • Product code :12890
    Model:F20LR7

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 20
    A 80
    B 8
    C 10
    D 20
    P.C.D 27
    The number of electrode 7
    306,400JPY (with tax 337,040JPY)
    Inquiry for this product

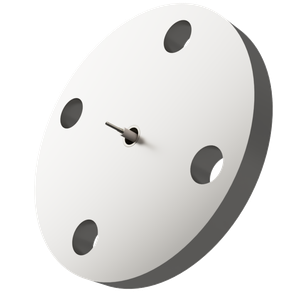

  • Product code :11754
    Model:F25LR1

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 25
    A 90
    B 8
    C 10
    D 20
    The number of electrode 1
    0JPY (with tax 0JPY)
    Inquiry for this product
  • Product code :11755
    Model:F25LR2

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 25
    A 90
    B 8
    C 10
    D 20
    P.C.D 20
    The number of electrode 2
    106,200JPY (with tax 116,820JPY)
    Inquiry for this product
  • Product code :11756
    Model:F25LR3

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 25
    A 90
    B 8
    C 10
    D 20
    P.C.D 20
    The number of electrode 3
    148,900JPY (with tax 163,790JPY)
    Inquiry for this product
  • Product code :11757
    Model:F25LR4

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 25
    A 90
    B 8
    C 10
    D 20
    P.C.D 23
    The number of electrode 4
    191,000JPY (with tax 210,100JPY)
    Inquiry for this product

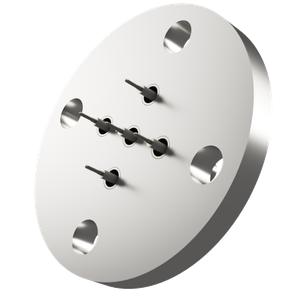

  • Product code :12891
    Model:F25LR5

    ▼ Feedthrough Coaxial LM-00R Ground Shield One Side Plug Mating
    1kV 2A compatible
    For 50Ω transmission
    Ground and continuity
    Electrode on vacuum side, LM connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shield both side plugging
    Floating shield both side plug mating

    ▼ Custom-made products are also available.
    We can also provide special flange mountings with different number of pins and multiple types of terminal combinations.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type LM
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa・㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 1300 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 1 kV
    Electric current / 1 pc. 2 A
    RoHS2 corresponding
    VF 25
    A 90
    B 8
    C 10
    D 20
    P.C.D 25
    The number of electrode 5
    224,500JPY (with tax 246,950JPY)
    Inquiry for this product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください!

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
