Vacuum Components liquid nitrogen introduction machine (NW / KF standard) Product List Vacuum Component
Products 46Matter (41 ~46 )
- Displayed results
- Display switching
-
Product code :26308
Model:NW40LN3/8SS1▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 40 Tube / Fitting Size 3/8 inch Joint standard Swagelok® A 75 B 125 E 42.7 F 37.1 G 53 The number of tube 1 end bilateral fitting -
Product code :26264
Model:NW40LN1/2SS1▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 40 Tube / Fitting Size 1/2 inch Joint standard Swagelok® A 75 B 125 E 42.7 F 37.1 G 53 The number of tube 1 end bilateral fitting -
Product code :21548
Model:NW50LN1/4SS1▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 50 Tube / Fitting Size 1/4 inch Joint standard Swagelok® A 75 B 125 E 60.5 F 54.9 G 53 The number of tube 1 end bilateral fitting -
Product code :21549

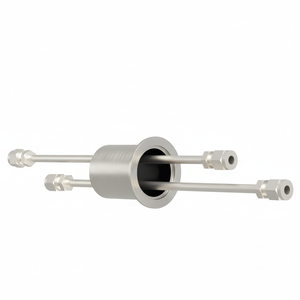

Model:NW50LN1/4SS2▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 50 Tube / Fitting Size 1/4 inch Joint standard Swagelok® A 75 B 175 C 125 D 125 E 60.5 F 54.9 G 53 The number of tube 2 end bilateral fitting
-
Product code :26310
Model:NW50LN3/8SS1▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 50 Tube / Fitting Size 3/8 inch Joint standard Swagelok® A 75 B 125 E 60.5 F 54.9 G 53 The number of tube 1 end bilateral fitting -
Product code :26266
Model:NW50LN1/2SS1▼NW/KF Introducer for liquid nitrogen
Flange for liquid nitrogen introduction
The thermal effect on the flange is minimized
Can also be used for introducing cooling water or gas
▼Size and standard
Tip shape: Tube ends at both ends, with joints on the atmospheric side, with joints at both ends
Flange size (NW): 16, 25, 40, 50
Tube diameter (inch): 1/4, 3/8, 1/2
Type: with 1 tube, with 2 tubes
VCR® joint type, JIS flange type, and other size tube products are also available for water-cooled gas induction units (List)
Only one side through vacuum side type and Water-cooling terminals are also available.
▼Others
Various types of adapters with no penetration on the vacuum side are available here.
We can also change the length of tubes, fittings, and flange sizes. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.Flange material SUS 304 Tubes / Pipes SUS 304 RoHS2 corresponding ○ NW/KF 50 Tube / Fitting Size 1/2 inch Joint standard Swagelok® A 75 B 125 E 60.5 F 54.9 G 53 The number of tube 1 end bilateral fitting
