Feedthrough coaxial MHV type　Product List Feedthrough 

Products　111Matter (41 ~60 )

Displayed results
Display switching
  • 同軸 MHV-R-F 2個付き ICF70 フランジ
    Coaxial MHV-R-F with 2 pcs ICF70 Flange
    Product code :10715
    Model:C70MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    ICF 70
    A 70
    B 12.7
    C 20.5
    D 26.5
    P.C.D 20
    The number of electrode 2
    121,700JPY (with tax 133,870JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 3個付き ICF70 フランジ
    Coaxial MHV-R-F with 3 ICF70 flanges
    Product code :11990
    Model:C70MRF3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    ICF 70
    A 70
    B 12.7
    C 20.5
    D 26.5
    P.C.D 21
    The number of electrode 3
    171,900JPY (with tax 189,090JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 4個付き ICF114 フランジ
    Coaxial MHV-R-F with 4 ICF114 Flange
    Product code :18597
    Model:C114MRF4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    ICF 114
    A 114
    B 17.5
    C 20.5
    D 26.5
    P.C.D 30
    The number of electrode 4
    227,800JPY (with tax 250,580JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き VF20 フランジ
    Coaxial MHV-R-F with 1 VF20 flange
    Product code :10797
    Model:F20MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 20
    A 80
    B 8
    C 22.5
    D 24.5
    The number of electrode 1
    63,500JPY (with tax 69,850JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き VF25 フランジ
    Coaxial MHV-R-F with 1 VF25 flange
    Product code :11686
    Model:F25MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 25
    A 90
    B 8
    C 22.5
    D 24.5
    The number of electrode 1
    64,300JPY (with tax 70,730JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 2個付き VF25 フランジ
    Coaxial MHV-R-F with 2 pcs VF25 flange
    Product code :12855
    Model:F25MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 25
    A 90
    B 8
    C 22.5
    D 24.5
    P.C.D 20
    The number of electrode 2
    122,300JPY (with tax 134,530JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き VF40 フランジ
    Coaxial MHV-R-F with 1 VF40 flange
    Product code :11687
    Model:F40MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 22.5
    D 24.5
    The number of electrode 1
    65,300JPY (with tax 71,830JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 2個付き VF40 フランジ
    Coaxial MHV-R-F with 2 VF40 flanges
    Product code :11688
    Model:F40MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 20
    The number of electrode 2
    123,300JPY (with tax 135,630JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 3個付き VF40 フランジ
    Coaxial MHV-R-F with 3 VF40 flanges
    Product code :11991
    Model:F40MRF3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 25
    The number of electrode 3
    173,500JPY (with tax 190,850JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 4個付き VF40 フランジ
    Coaxial MHV-R-F with 4 VF40 flanges
    Product code :12856
    Model:F40MRF4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VF 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 30
    The number of electrode 4
    223,400JPY (with tax 245,740JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き VG20 フランジ
    Coaxial MHV-R-F with 1 piece VG20 flange
    Product code :11689
    Model:G20MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 20
    A 80
    B 8
    C 22.5
    D 24.5
    The number of electrode 1
    63,500JPY (with tax 69,850JPY)
    Inquiry for this product

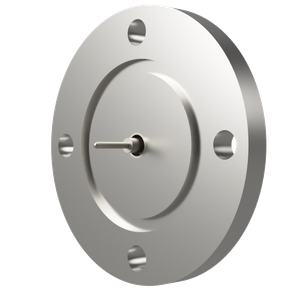

  • 同軸 MHV-R-F 1個付き VG25 フランジ
    Coaxial MHV-R-F with 1 piece VG25 flange
    Product code :11690
    Model:G25MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 25
    A 90
    B 8
    C 22.5
    D 24.5
    The number of electrode 1
    64,300JPY (with tax 70,730JPY)
    Inquiry for this product

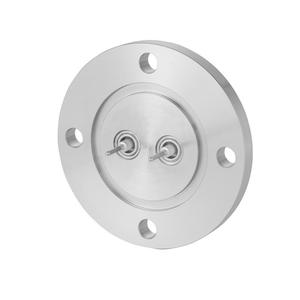

  • 同軸 MHV-R-F 2個付き VG25 フランジ
    Coaxial MHV-R-F with 2 pcs VG25 flange
    Product code :12857
    Model:G25MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 25
    A 90
    B 8
    C 22.5
    D 24.5
    P.C.D 20
    The number of electrode 2
    122,300JPY (with tax 134,530JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 1個付き VG40 フランジ
    Coaxial MHV-R-F with 1 VG40 flange
    Product code :11691
    Model:G40MRF1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 22.5
    D 24.5
    The number of electrode 1
    65,300JPY (with tax 71,830JPY)
    Inquiry for this product
  • 同軸 MHV-R-F 2個付き VG40 フランジ
    Coaxial MHV-R-F with 2 pcs. VG40 flange
    Product code :11692
    Model:G40MRF2

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 20
    The number of electrode 2
    123,300JPY (with tax 135,630JPY)
    Inquiry for this product

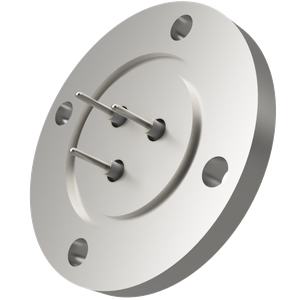

  • 同軸 MHV-R-F 3個付き VG40 フランジ
    Coaxial MHV-R-F with 3 VG40 flanges
    Product code :11992
    Model:G40MRF3

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 25
    The number of electrode 3
    173,500JPY (with tax 190,850JPY)
    Inquiry for this product

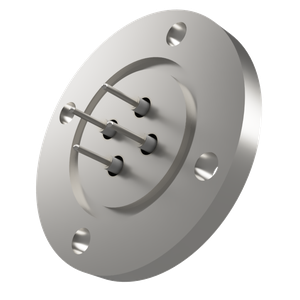

  • 同軸 MHV-R-F 4個付き VG40 フランジ
    Coaxial MHV-R-F with 4 VG40 flanges
    Product code :12858
    Model:G40MRF4

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Floating shield isolated from ground
    Electrode on vacuum side, MHV connector connection on atmospheric side only
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Gland shield single-sided plug mating
    Gland shield double-sided plug fitting
    Floating shield plugging on both sides

    ▼ Custom-made products are also available.
    We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type The atmosphere-side plug-fitti
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Floating shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    VG 40
    A 105
    B 10
    C 22.5
    D 24.5
    P.C.D 30
    The number of electrode 4
    223,400JPY (with tax 245,740JPY)
    Inquiry for this product
  • 同軸 MHV-JJ 1個付き NW/KF16 フランジ
    Coaxial MHV-JJ with 1 piece NW/KF16 flange
    Product code :11053
    Model:N16MJ1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield Both Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    MHV connector connection on both vacuum and atmosphere side
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shielded single-sided plug mating
    Floating shield plugging on one side
    Floating shield plug mating on both sides

    ▼ Custom-made products are also available.
    We can also accept special flange mounting of multiple terminal combinations with different number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type Vacuum side and the atmosphere
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 16
    A 30
    B 4.8
    C 2
    D 34.5
    The number of electrode 1
    70,000JPY (with tax 77,000JPY)
    Inquiry for this product
  • 同軸 MHV-JJ 1個付き NW/KF25 フランジ
    Coaxial MHV-JJ with 1 piece NW/KF25 flange
    Product code :10236
    Model:N25MJ1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield Both Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    MHV connector connection on both vacuum and atmosphere side
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shielded single-sided plug mating
    Floating shield plugging on one side
    Floating shield plug mating on both sides

    ▼ Custom-made products are also available.
    We can also accept special flange mounting of multiple terminal combinations with different number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type Vacuum side and the atmosphere
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 25
    A 40
    B 6
    C 9.5
    D 27
    The number of electrode 1
    70,200JPY (with tax 77,220JPY)
    Inquiry for this product
  • 同軸 MHV-JJ 1個付き NW/KF40 フランジ
    Coaxial MHV-JJ with 1 piece NW/KF40 flange
    Product code :11157
    Model:N40MJ1

    Miniature High Voltage
    ▼ Feedthrough Coaxial MHV Ground Shield Both Side Plug Mating
    5kV 3A compatible
    For 50Ω transmission
    Ground and continuity
    MHV connector connection on both vacuum and atmosphere side
    Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

    ▼ In addition, the following types are standardized
    Ground shielded single-sided plug mating
    Floating shield plugging on one side
    Floating shield plug mating on both sides

    ▼ Custom-made products are also available.
    We can also accept special flange mounting of multiple terminal combinations with different number of poles.
    Please contact us by clicking the "Inquiry" button on the right side of the page.

    Precision cleaning request.

    type MHV
    Connection type Vacuum side and the atmosphere
    electrode Kovar ®
    Flange material SUS 304
    sleeve Kovar ®
    Insulator Alumina ceramic
    Maximum temperature 450℃
    The lowest temperature -196℃
    Leak rate <1.3x10<sup>-10</sup>Pa･㎥/sec
    Classification Flanged terminal
    type Ground shield
    Impedance 50 Ω
    frequency 100 MHz
    Insulation resistance value 10⁹ ohm
    Withstand voltage: DC 5 kV
    Electric current / 1 pc. 3 A
    RoHS2 corresponding ○
    NW/KF 40
    A 55
    B 6
    C 9.5
    D 27
    The number of electrode 1
    70,500JPY (with tax 77,550JPY)
    Inquiry for this product

stock status

Filter by specification
products： 111Matter

Flange

type

Connection type

type

Classification

The number of electrode

Electric current / 1 pc.

Withstand voltage: DC

frequency

Please customers by all means contact us we can not find your favorite product
Shipping accepted on the day on orders until 17:00 Hours 9:00 to 18:00 except Saturdays, Sundays, and holidays
Contact Us
Please fill in the form below.
After confirming the content of your enquiry,
a representative will contact you.

To use this service, please login or register as a member.

Not a member yet?

Registering as a member gives you access to a number of useful features.

ぜひご登録ください！

※ Please note that it may take several days after applying for a member registration until the registration is complete. Please note that we reserve the right to refuse your application at our discretion.
