Safe High Voltage
▼ Coaxial SHV Ground Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, SHV connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
For 10kV and 20kV
Floating shield plug mating on one side (5kV)
Ground shield plugging on both sides (5kV)
Floating shield plug mating on both sides (5kV)
▼ Custom-made products are also available
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.
※Please note that plugs made by other manufacturers may not mate. Please be sure to use our plugs for this product.
Click here to request precision cleaning.
| Basic Information | |
|---|---|
| type | SHV |
| Connection type | Single-Ended |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
| Classification | Flanged terminal |
| type | Ground shield |
| Impedance | 50 Ω |
| frequency | 100 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 5 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |

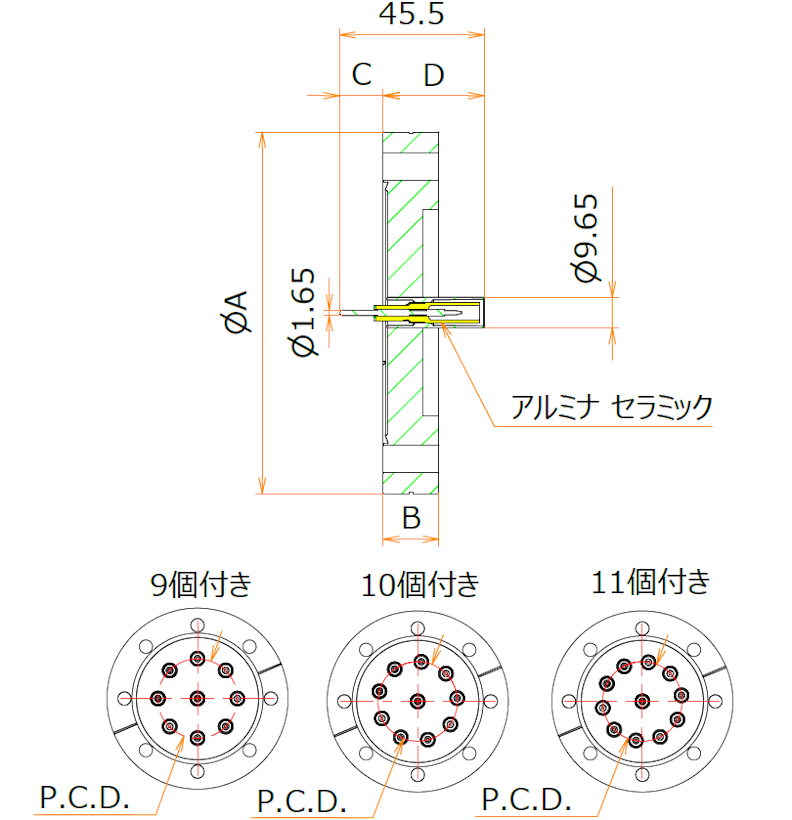

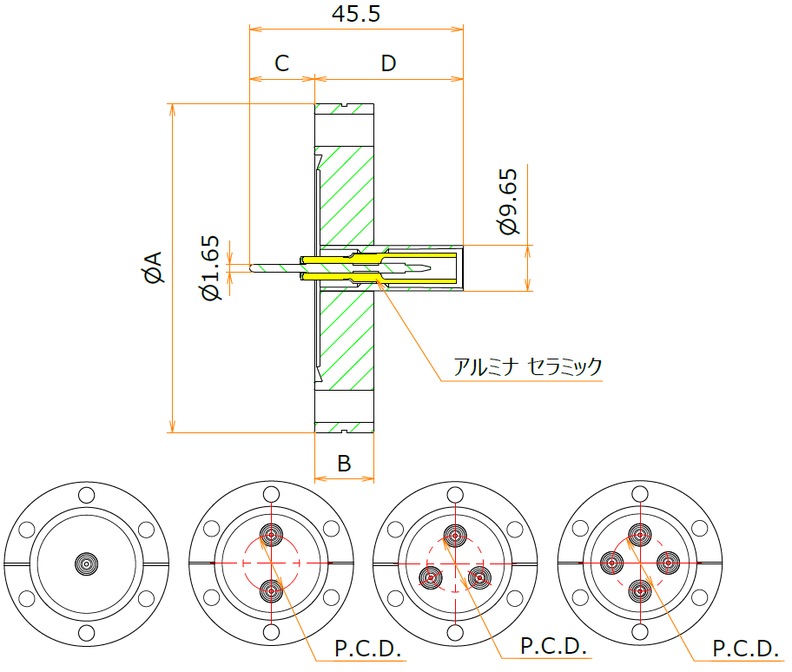

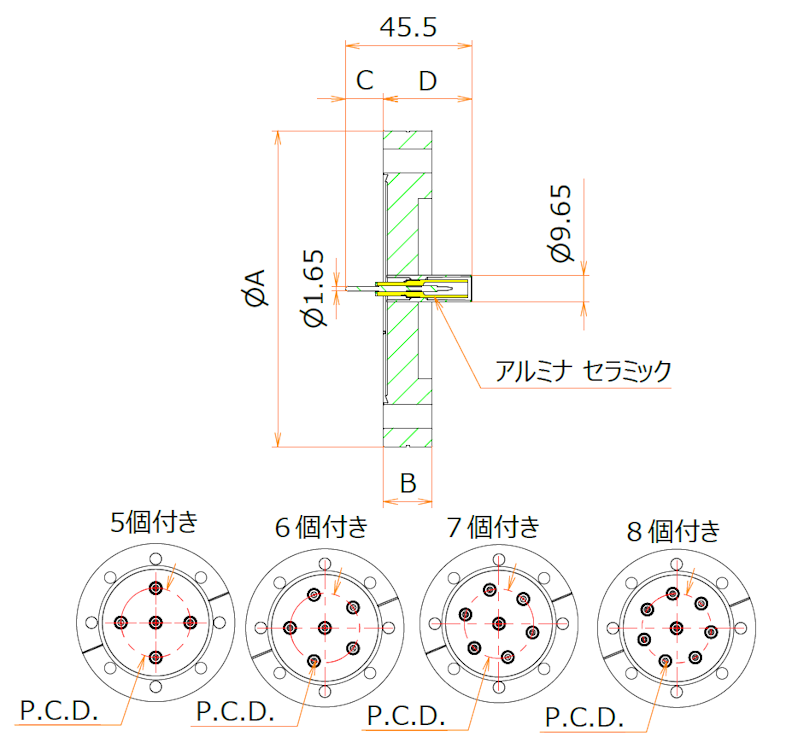

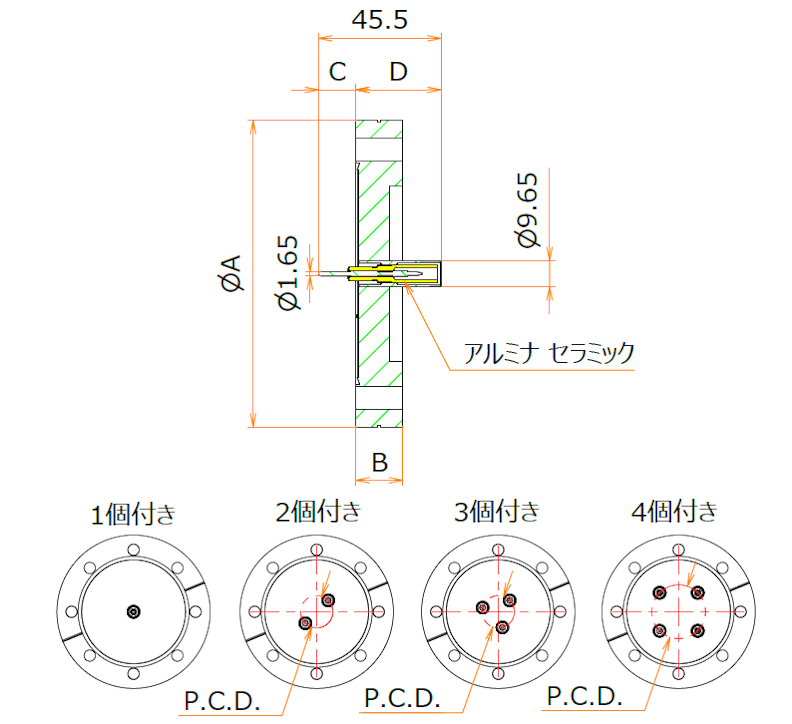

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 6 | 12.5 | 33 | - | 1 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
39,000JPY
(with tax 42,900JPY)
|
|
| 25 | - | - | - | 40 | 6 | 12.5 | 33 | - | 1 |
stock
16
1-2 Business Days
When out of stock
Answered later
|
43,200JPY
(with tax 47,520JPY)
|
|
| 40 | - | - | - | 55 | 6 | 12.5 | 33 | - | 1 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
43,500JPY
(with tax 47,850JPY)
|
|
| 40 | - | - | - | 55 | 6 | 12.5 | 33 | 24 | 2 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
86,800JPY
(with tax 95,480JPY)
|
|
| 40 | - | - | - | 55 | 6 | 12.5 | 33 | 24 | 3 |
When out of stock
Answered later
|
134,100JPY
(with tax 147,510JPY)
|
|
| 40 | - | - | - | 55 | 6 | 12.5 | 33 | 24 | 4 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
181,400JPY
(with tax 199,540JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | - | 1 |
When out of stock
Answered later
|
44,000JPY
(with tax 48,400JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 24 | 2 |
When out of stock
Answered later
|
87,300JPY
(with tax 96,030JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 24 | 3 |
When out of stock
Answered later
|
134,600JPY
(with tax 148,060JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 24 | 4 |
When out of stock
Answered later
|
181,900JPY
(with tax 200,090JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 32 | 5 |
When out of stock
Answered later
|
229,200JPY
(with tax 252,120JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 32 | 6 |
When out of stock
Answered later
|
276,500JPY
(with tax 304,150JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 32 | 7 |
When out of stock
Answered later
|
323,800JPY
(with tax 356,180JPY)
|
|
| 50 | - | - | - | 75 | 6 | 12.5 | 33 | 35 | 8 |
When out of stock
Answered later
|
371,100JPY
(with tax 408,210JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 13 | 32.5 | - | 1 |
stock
7
1-2 Business Days
waiting for completion
10
Arrival on Jan 25,2027
When out of stock
Answered later
|
44,000JPY
(with tax 48,400JPY)
|
|
| - | 34 | - | - | 34 | - | - | - | - | 1 |
stock only
stock
1
1-2 Business Days
|
124,200JPY
(with tax 136,620JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 13 | 32.5 | - | 1 |
stock
6
1-2 Business Days
When out of stock
Answered later
|
45,400JPY
(with tax 49,940JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 13 | 32.5 | 24 | 2 |
stock
5
1-2 Business Days
When out of stock
Answered later
|
89,400JPY
(with tax 98,340JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 13 | 32.5 | 24 | 3 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
136,700JPY
(with tax 150,370JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 13 | 32.5 | 24 | 4 |
stock
5
1-2 Business Days
When out of stock
Answered later
|
184,000JPY
(with tax 202,400JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 32 | - |
When out of stock
Answered later
|
48,600JPY
(with tax 53,460JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 24 | 2 |
When out of stock
Answered later
|
95,900JPY
(with tax 105,490JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 24 | 3 |
When out of stock
Answered later
|
143,200JPY
(with tax 157,520JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 24 | 4 |
When out of stock
Answered later
|
190,500JPY
(with tax 209,550JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 5 |
When out of stock
Answered later
|
237,800JPY
(with tax 261,580JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 6 |
When out of stock
Answered later
|
285,100JPY
(with tax 313,610JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 7 |
When out of stock
Answered later
|
332,400JPY
(with tax 365,640JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 8 |
When out of stock
Answered later
|
379,700JPY
(with tax 417,670JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 9 |
When out of stock
Answered later
|
427,000JPY
(with tax 469,700JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 10 |
When out of stock
Answered later
|
474,300JPY
(with tax 521,730JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 13 | 32.5 | 50 | 11 |
When out of stock
Answered later
|
521,600JPY
(with tax 573,760JPY)
|
|
| - | - | 20 | - | 80 | 8 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
45,100JPY
(with tax 49,610JPY)
|
|
| - | - | 25 | - | 90 | 8 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
46,000JPY
(with tax 50,600JPY)
|
|
| - | - | 25 | - | 90 | 8 | 15 | 30.5 | 24 | 2 |
When out of stock
Answered later
|
89,900JPY
(with tax 98,890JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
47,100JPY
(with tax 51,810JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | 24 | 2 |
When out of stock
Answered later
|
92,000JPY
(with tax 101,200JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | 24 | 3 |
When out of stock
Answered later
|
139,300JPY
(with tax 153,230JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | 24 | 4 |
When out of stock
Answered later
|
186,600JPY
(with tax 205,260JPY)
|
|
| - | - | - | 20 | 80 | 8 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
45,100JPY
(with tax 49,610JPY)
|
|
| - | - | - | 25 | 90 | 8 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
46,000JPY
(with tax 50,600JPY)
|
|
| - | - | - | 25 | 90 | 8 | 15 | 30.5 | 24 | 2 |
When out of stock
Answered later
|
89,900JPY
(with tax 98,890JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | - | 1 |
When out of stock
Answered later
|
47,100JPY
(with tax 51,810JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | 24 | 2 |
When out of stock
Answered later
|
92,000JPY
(with tax 101,200JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | 24 | 5 |
When out of stock
Answered later
|
139,300JPY
(with tax 153,230JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | 24 | 4 |
When out of stock
Answered later
|
186,600JPY
(with tax 205,260JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | 33 | 5 |
When out of stock
Answered later
|
233,900JPY
(with tax 257,290JPY)
|
|
| - | - | - | 40 | 105 | 10 | 15 | 30.5 | 33 | 6 |
When out of stock
Answered later
|
281,200JPY
(with tax 309,320JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | 33 | 5 |
When out of stock
Answered later
|
233,900JPY
(with tax 257,290JPY)
|
|
| - | - | 40 | - | 105 | 10 | 15 | 30.5 | 33 | 6 |
When out of stock
Answered later
|
281,200JPY
(with tax 309,320JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
