  5. Ultra-compact, lightweight ion pump ion pump Assem

Ultra-compact, lightweight ion pump ion pump Assem

Ultra-compact, lightweight ion pump ion pump Assem

● is the ion pump of the ultra-compact and lightweight.
● Since the pump, power supply, cable set is a set, you can immediately use.
● because it contains a cathode, a relatively long you can drive than usual.
● If the remote power supply is required, please contact us.
● flange portion and the length of the pipe is, you can change as a special order.

see next
Basic Information
magnet Samarium cobalt
Long-life cathode Yes
Baking possible temperature (the 100 ℃
Baking possible temperature (pow 350 ℃
The input power voltage 14~20 V DC
The input power current 45~200 mA
Input power frequency 50/60 Hz
The input power power 0.6~2.5 W
Battery backup for the input pow 12±5% V DC
Battery backup for input power c 30~150 mA
Battery backup for the input pow 0.25~2 W
Output power voltage +3500±20%
Output power voltage (short circ 0 to 5 and 8 V DC
Output Power current 800 mA
Output power current (short circ 1 mA
Output Power power 0.6 W max.
Environmental Operating temperat 0~60 ℃
Environmental humidity range (no 0~80 %
Analog output signal recommended >100 KΩ
Bootable pressure 1.3x10-2
Inquiry for this subcategory

We have 1 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
ICF Classification (ion pump) Exhaust rate (L / sec) Ion pump body Power / display unit AC adapter
Stock & Delivery
front.product.price
front.product.tax_included2
34 set 3(窒素) 4E3LT C-1766Q C-0887
When out of stock
Answered later
597,100JPY (with tax 656,810JPY)
ICF Classification (ion pump) Exhaust rate (L / sec) Ion pump body Power / display unit AC adapter

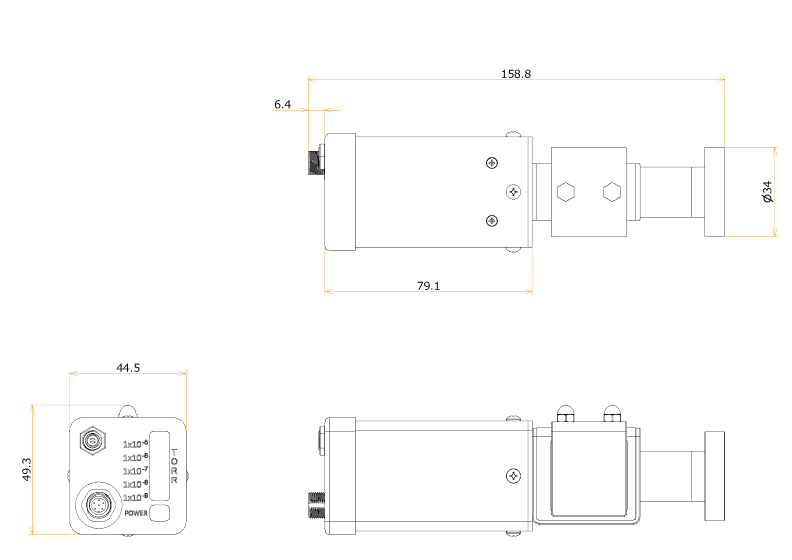

超小型・軽量イオンポンプ イオンポンプ セット品3L admin.label.item.catalog_image
内部構造及びマグネット取り外し方は以下のの画像をクリックしてください。
内部構造及びマグネット取り外し方
