NW / KF, is water-cooled, gas inlet flange of the ICF standards.
NW / KF16 ~ NW / KF40, up to ICF34 ~ ICF70 we have standardized.
Joint types of tube end, Swagelok®, VCR® female, stocks male VCR®.
Size, we have standardized the 1/4 inch, but the 3/8-inch, is also available in 1/2-inch and millimeter size.
Attachment to the VF / VG standards also will respond quickly.
| Basic Information | |
|---|---|
| Fittings | SUS 316 |
| Flange material | SUS 304 |
| Tubes / Pipes | SUS 316L |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |

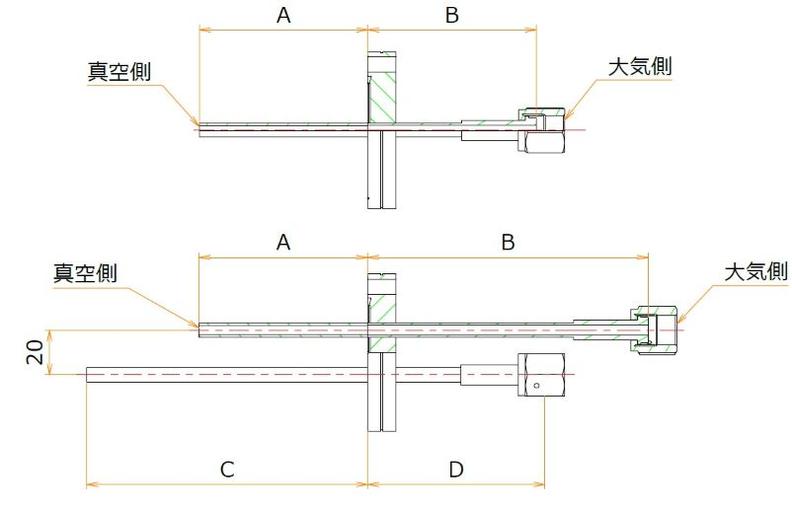

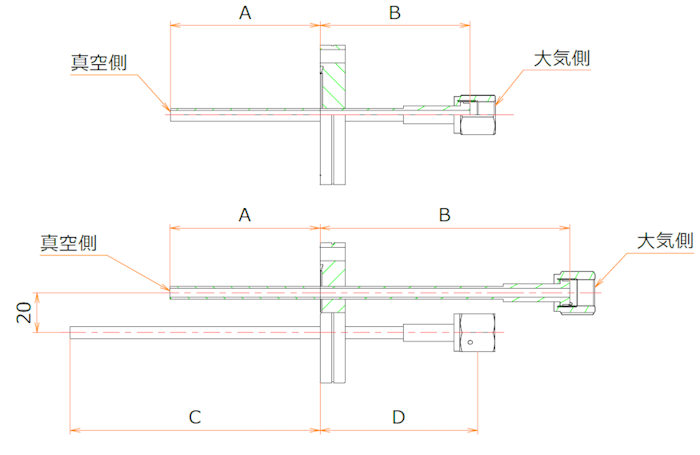

ICF | Tube / Fitting Size | Joint standard | A | B | C | D | The number of tube | Tube thick | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 34 | 1/8 inch | VCR® F | 75 | 75 | - | - | 1 | t0.72 |
stock
2
1-2 Business Days
When out of stock
20 Business Days
|
34,500JPY
(with tax 37,950JPY)
|
|
| 34 | 1/4 inch | VCR® F | 75 | 75 | - | - | 1 | t1 |
stock
7
1-2 Business Days
When out of stock
20 Business Days
|
34,600JPY
(with tax 38,060JPY)
|
|
| 34 | 3/8 inch | VCR® F | 75 | 75 | - | - | 1 | t1 |
stock
1
1-2 Business Days
When out of stock
20 Business Days
|
41,800JPY
(with tax 45,980JPY)
|
|
| 34 | 1/2 inch | VCR® F | 75 | 75 | - | - | 1 | t1.24 |
stock
2
1-2 Business Days
When out of stock
20 Business Days
|
44,200JPY
(with tax 48,620JPY)
|
|
| 70 | 1/8 inch | VCR® F | 75 | 75 | - | - | 1 | t0.72 |
When out of stock
20 Business Days
|
35,900JPY
(with tax 39,490JPY)
|
|
| 70 | 1/8 inch | VCR® F | 75 | 125 | 125 | 75 | 2 | t0.72 |
When out of stock
20 Business Days
|
62,000JPY
(with tax 68,200JPY)
|
|
| 70 | 1/4 inch | VCR® F | 75 | 75 | - | - | 1 | t1 |
stock
2
1-2 Business Days
waiting for completion
2
Arrival on Nov 19,2026
When out of stock
20 Business Days
|
36,000JPY
(with tax 39,600JPY)
|
|
| 70 | 1/4 inch | VCR® F | 100 | 95 | - | - | 4 | t1 |
When out of stock
15 Business Days
|
133,100JPY
(with tax 146,410JPY)
|
|
| 70 | 1/4 inch | VCR® F | 75 | 125 | 125 | 75 | 2 | t1 |
stock
2
1-2 Business Days
When out of stock
20 Business Days
|
62,100JPY
(with tax 68,310JPY)
|
|
| 70 | 3/8 inch | VCR® F | 75 | 75 | - | - | 1 | t1 |
stock
1
1-2 Business Days
When out of stock
20 Business Days
|
43,200JPY
(with tax 47,520JPY)
|
|
| 70 | 1/2 inch | VCR® F | 75 | 75 | - | - | 1 | t1.24 |
stock
1
1-2 Business Days
When out of stock
20 Business Days
|
45,600JPY
(with tax 50,160JPY)
|
| ICF | Tube / Fitting Size | Joint standard | A | B | C | D | The number of tube | Tube thick |
|---|---|---|---|---|---|---|---|---|
