Viewport (window glass replacement type)/window un

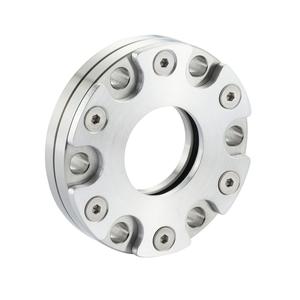

▼Replacable viewport flange
Viewport flange that can replace window.
Replacement of dirty window by new one, or can change materials
The window is sealed with an O-ring.
Includes SUS flange body, 1 O-ring, 1 Teflon window-restraining ring, and fixing screw.
※Window material is not included.
※Please use hex socket cap screws to tighten flanges..
▼About window materials
Quartz glass is available as standard.
Please feel free to contact us if you have any requests for window materials.
▼ Replacement Packing
Replacement packing is available
Breakdown: O-ring for window sealing, Teflon ring for window suppression
With RR in front of the body model is the corresponding replacement packing model
▼Others
We also provide valves for vacuum isolation when replacing windows.
If you have any questions about our products, please feel free to contact us by clicking the "Contact Us" button.
Precision Cleaning Request.
| Basic Information | |
|---|---|
| RoHS2 corresponding | Compliant |
We have 12 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

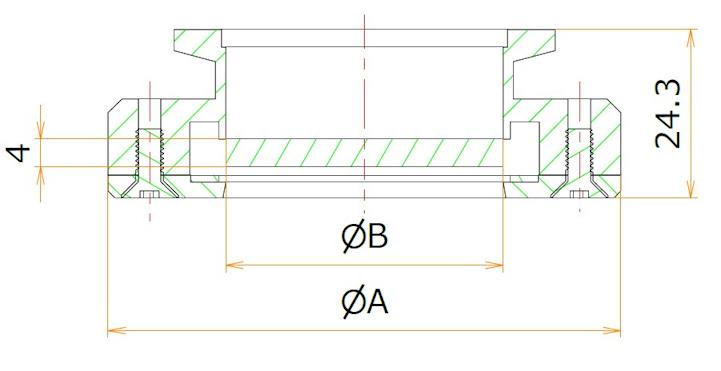

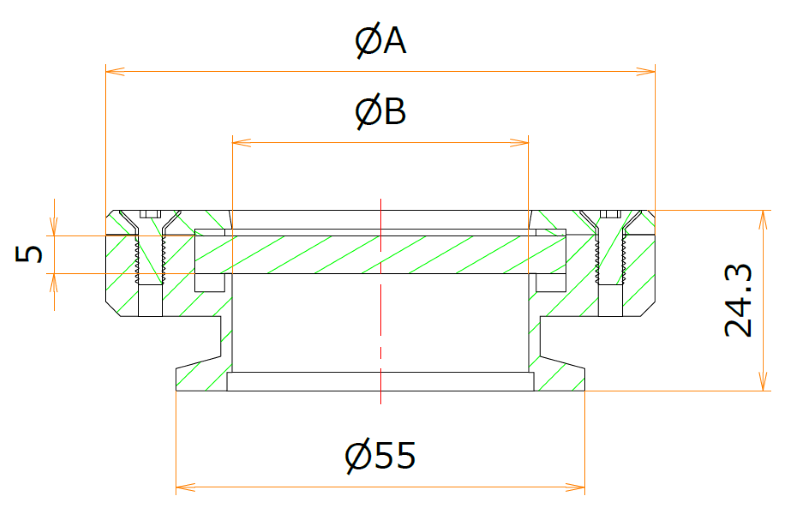

ICF | NW/KF | A | B | T | window | The contents of goods | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|
| - | 40 | 74 | 40 | - | - | body |
stock
2
1-2 Business Days
When out of stock
Answered later
|
79,100JPY
(with tax 87,010JPY)
|
|
| - | 40 | - | - | - | - | O-ring |
When out of stock
15 Business Days
|
Separate estimate
|
|
| - | 40 | 50 | - | 5 | 石英 | window |
stock
9
1-2 Business Days
When out of stock
Answered later
|
27,100JPY
(with tax 29,810JPY)
|
|
| 70 | - | 70 | 30 | - | - | body |
stock
16
1-2 Business Days
When out of stock
15 Business Days
|
59,100JPY
(with tax 65,010JPY)
|
|
| 70 | - | 40 | - | 4 | 石英 | window |
stock
20
1-2 Business Days
When out of stock
Answered later
|
24,100JPY
(with tax 26,510JPY)
|
|
| 70 | - | - | - | - | - | O-ring |
stock
12
1-2 Business Days
When out of stock
15 Business Days
|
4,700JPY
(with tax 5,170JPY)
|
|
| 114 | - | 114 | 64 | - | - | body |
When out of stock
15 Business Days
|
79,700JPY
(with tax 87,670JPY)
|
|
| 114 | - | 74 | - | 8 | 石英 | window |
When out of stock
Answered later
|
59,700JPY
(with tax 65,670JPY)
|
|
| 114 | - | - | - | - | - | O-ring |
When out of stock
15 Business Days
|
Separate estimate
|
|
| 152 | - | 152 | 98 | - | - | body |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
90,700JPY
(with tax 99,770JPY)
|
|
| 152 | - | 110 | - | 10 | 石英 | window |
stock
2
1-2 Business Days
When out of stock
Answered later
|
56,400JPY
(with tax 62,040JPY)
|
|
| 152 | - | - | - | - | - | O-ring |
When out of stock
15 Business Days
|
Separate estimate
|
| ICF | NW/KF | A | B | T | window | The contents of goods |
|---|---|---|---|---|---|---|
・反射率を加味した参考値です
・ARコートのご依頼も承ります
