- Cosmotec for Vacuum Components
- Feedthrough
- High-voltage
- High voltage, high current 6kV-145A
- Feedthrough Withstand voltage: 6kV Current value:
Feedthrough Withstand voltage: 6kV Current value:
see next
| Basic Information | |
|---|---|
| type | High voltage and high current |
| electrode | Oxygen-free copper |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 6 kV |
| Electric current / 1 pc. | 145 A |
| Feedthrough | 6 kV / 145 A |
We have 17 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

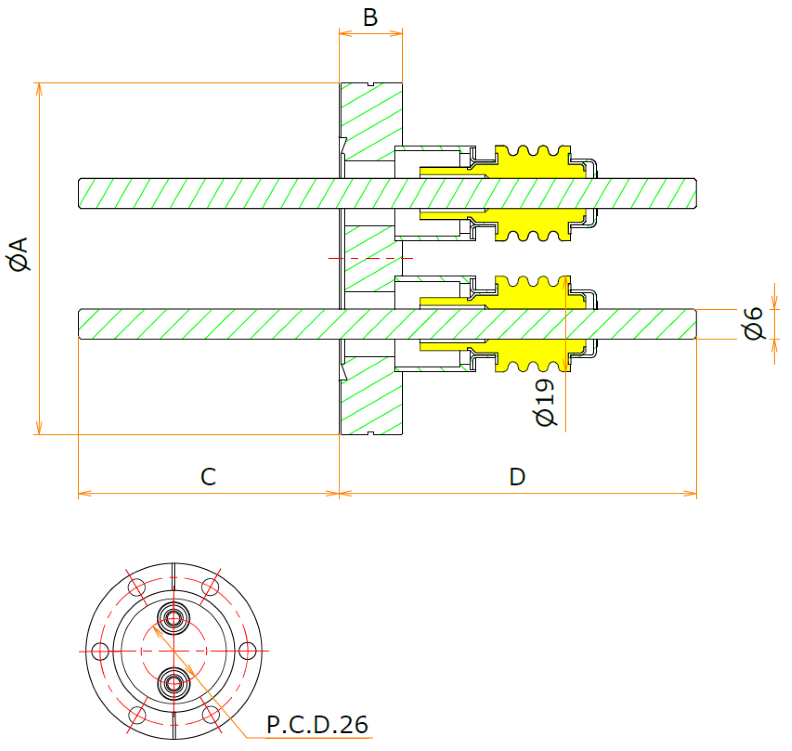

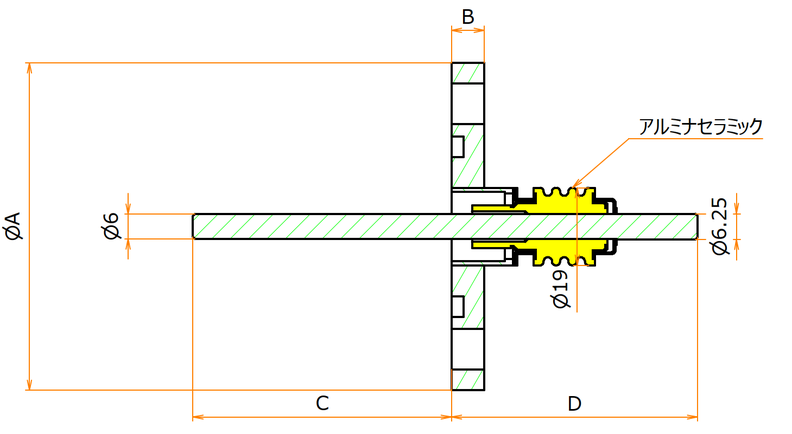

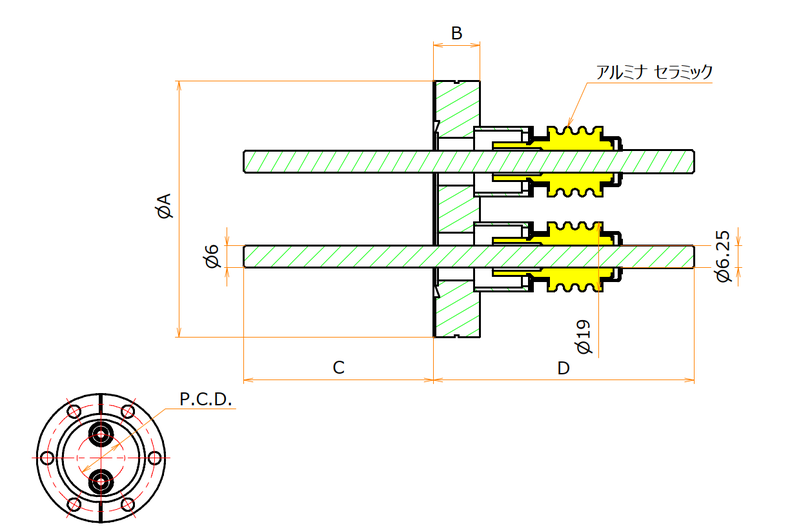

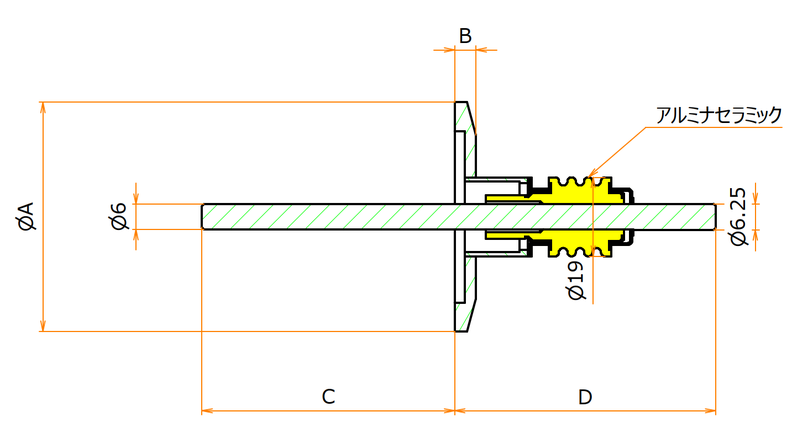

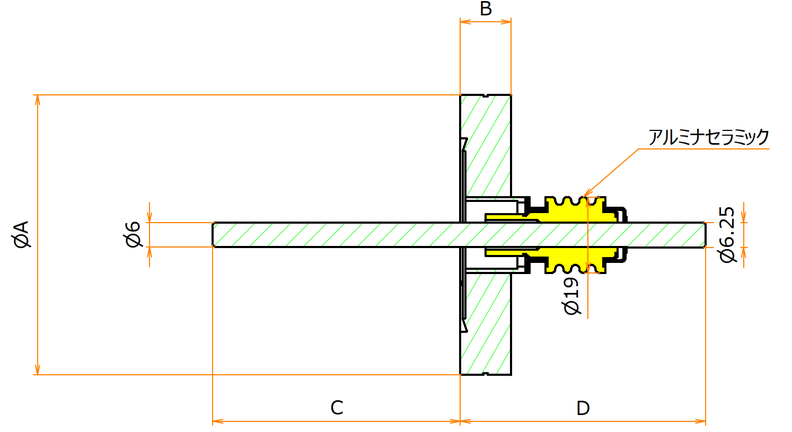

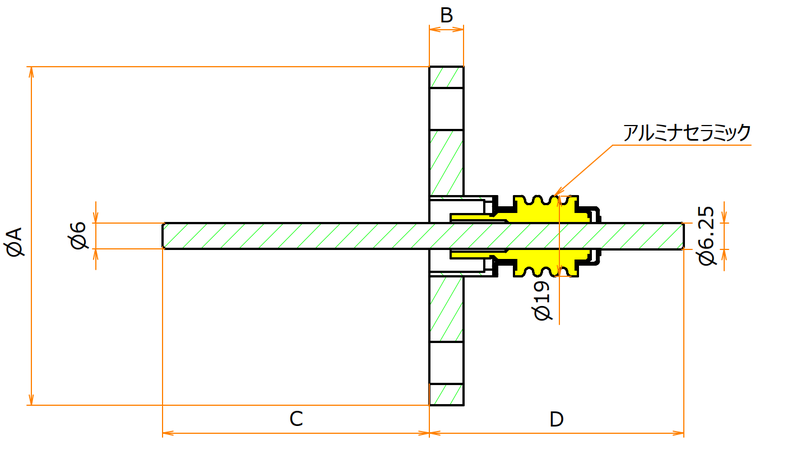

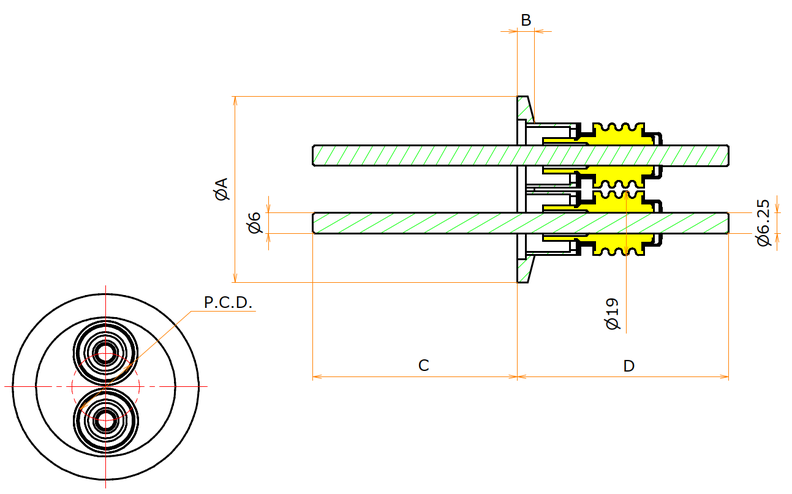

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | pin diameter | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 6 | 53.2 | 69.8 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| 25 | - | - | - | 40 | 6 | 60.5 | 62.5 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| 40 | - | - | - | 55 | 6 | 60.5 | 62.5 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| 40 | - | - | - | 55 | 6 | 60.5 | 62.5 | 26 | 2 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| 50 | - | - | - | 75 | 6 | 60.5 | 62.5 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| 50 | - | - | - | 75 | 6 | 60.5 | 62.5 | 26 | 2 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | 34 | - | - | 34 | 7.5 | 49.8 | 73.2 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | 70 | - | - | 70 | 12.7 | 61.8 | 61.2 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | 70 | - | - | 70 | 12.7 | 51.8 | 71.2 | 26 | 2 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | 20 | - | 80 | 8 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | 25 | - | 90 | 8 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | 40 | - | 105 | 10 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | 50 | - | 120 | 10 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | - | 20 | 80 | 8 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | - | 25 | 90 | 8 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | - | 40 | 105 | 10 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| - | - | - | 50 | 120 | 10 | 63 | 60 | - | 1 | 6 mm / 6.25 mm | You need to sign in to show price and stock Sign in | ||
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | pin diameter |
|---|---|---|---|---|---|---|---|---|---|---|
Connection parts
Product code :10155
Model:SVC64
Model:SVC64
Show price and stock after sign in
