90° elbow + tube/Swagelok®/VCR® adapter
▼NW/KF 90° elbow with Swagelok® adapter
The adapter is welded to the side of the elbow, allowing one-touch conversion with various fittings.
Fittings are welded at 45° to the center of the pipe.
Tube diameter (inch): 1/4
Flange size (NW): 16, 25, 40, 50
The following types are standardized (List)
Adapter shape: Tube, Swagelok®, VCR® (male/female)
Other
Radial port flanges are also available with multiple adapters extending from a single flange.
Adapters attached to the side of the nipple are available here.
Various types of adapters with flanges are available here.
Custom-made products are also available.
We can change the length, fittings, and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| Fittings | SUS 316 |
| Flange material | SUS 304 |
| Tubes / Pipes | SUS 304 |
| The inner surface processing | GBB Processing |
| RoHS2 corresponding | ○ |
We have 24 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

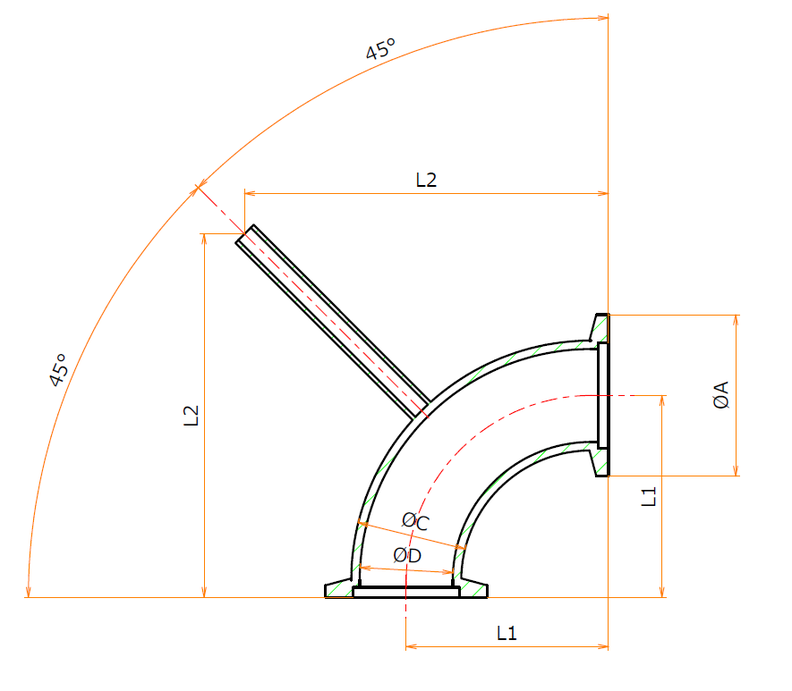

NW/KF | ICF | Tube / Fitting Size | A | C | D | L1 | L2 | Joint standard | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | 1/4 inch | 30 | 21.7 | 16 | 40 | 90 | Tube end |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
16,600JPY
(with tax 18,260JPY)
|
|
| 25 | - | 1/4 inch | 40 | 27.2 | 23 | 50 | 90 | Tube end |
stock
3
1-2 Business Days
When out of stock
21 Business Days
|
17,100JPY
(with tax 18,810JPY)
|
|
| 40 | - | 1/4 inch | 55 | 42.7 | 37.1 | 65 | 90 | Tube end |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
17,800JPY
(with tax 19,580JPY)
|
|
| 50 | - | 1/4 inch | 75 | 60.5 | 54.9 | 80 | 140 | Tube end |
When out of stock
Answered later
|
21,100JPY
(with tax 23,210JPY)
|
|
| 16 | - | 1/4 inch | 30 | 21.7 | 16 | 40 | 80 | Swagelok® |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
18,100JPY
(with tax 19,910JPY)
|
|
| 25 | - | 1/4 inch | 40 | 27.2 | 23 | 50 | 80 | Swagelok® |
stock
3
1-2 Business Days
When out of stock
21 Business Days
|
18,600JPY
(with tax 20,460JPY)
|
|
| 40 | - | 1/4 inch | 55 | 42.7 | 37.1 | 65 | 100 | Swagelok® |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
19,300JPY
(with tax 21,230JPY)
|
|
| 50 | - | 1/4 inch | 75 | 60.5 | 54.9 | 80 | 120 | Swagelok® |
When out of stock
21 Business Days
|
22,600JPY
(with tax 24,860JPY)
|
|
| 16 | - | 1/4 inch | 30 | 21.7 | 16 | 40 | 75 | VCR® M |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
18,600JPY
(with tax 20,460JPY)
|
|
| 25 | - | 1/4 inch | 40 | 27.2 | 23 | 50 | 75 | VCR® M |
stock
2
1-2 Business Days
When out of stock
21 Business Days
|
19,100JPY
(with tax 21,010JPY)
|
|
| 40 | - | 1/4 inch | 55 | 42.7 | 37.1 | 65 | 95 | VCR® M |
When out of stock
21 Business Days
|
19,800JPY
(with tax 21,780JPY)
|
|
| 50 | - | 1/4 inch | 75 | 60.5 | 54.9 | 80 | 115 | VCR® M |
When out of stock
Answered later
|
23,100JPY
(with tax 25,410JPY)
|
|
| 16 | - | 1/4 inch | 30 | 21.7 | 16 | 40 | 75 | VCR® F |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
19,100JPY
(with tax 21,010JPY)
|
|
| 25 | - | 1/4 inch | 40 | 27.2 | 23 | 50 | 75 | VCR® F |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
19,600JPY
(with tax 21,560JPY)
|
|
| 40 | - | 1/4 inch | 55 | 42.7 | 37.1 | 65 | 85 | VCR® F |
When out of stock
Answered later
|
20,300JPY
(with tax 22,330JPY)
|
|
| 50 | - | 1/4 inch | 75 | 60.5 | 54.9 | 80 | 95 | VCR® F |
When out of stock
21 Business Days
|
23,600JPY
(with tax 25,960JPY)
|
|
| - | 34 | 1/4 inch | 34 | 19.1 | 15.7 | 47.7 | 90 | Tube end |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 34 | 1/4 inch | - | - | - | - | - | Swagelok® |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 34 | 1/4 inch | - | - | - | - | - | VCR® M |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 34 | 1/4 inch | - | - | - | - | - | VCR® F |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 70 | 1/4 inch | 70 | 38 | 35 | 54.2 | 90 | Tube end |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 70 | 1/4 inch | - | - | - | - | - | Swagelok® |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 70 | 1/4 inch | - | - | - | - | - | VCR® M |
When out of stock
21 Business Days
|
Separate estimate
|
|
| - | 70 | 1/4 inch | - | - | - | - | - | VCR® F |
When out of stock
21 Business Days
|
Separate estimate
|
| NW/KF | ICF | Tube / Fitting Size | A | C | D | L1 | L2 | Joint standard |
|---|---|---|---|---|---|---|---|---|
