Connecting Components Cable with vacuum side inser
Cable with vacuum side plug for Micro D-sub.
It is covered with PEEK spiral wrap to prevent the cable from coming apart.
The color of the spiral wrap cover is light brown or transparent, but both are PEEK.
Please select the product best suited to your application.
| Basic Information | |
|---|---|
| Withstand voltage: DC | 750 V |
| Electric current / 1 pc. | 3 A |
| AWG # | 28 |
| contact | Beryllium copper + gold-plated |
| Cable sheathing | Kapton ® |
| conductor | Copper wire |
| Insulator | PEEK® |
| Maximum temperature | 200℃ |
| Vacuum and Air | For vacuum |
| RoHS2 corresponding | ○ |
We have 8 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

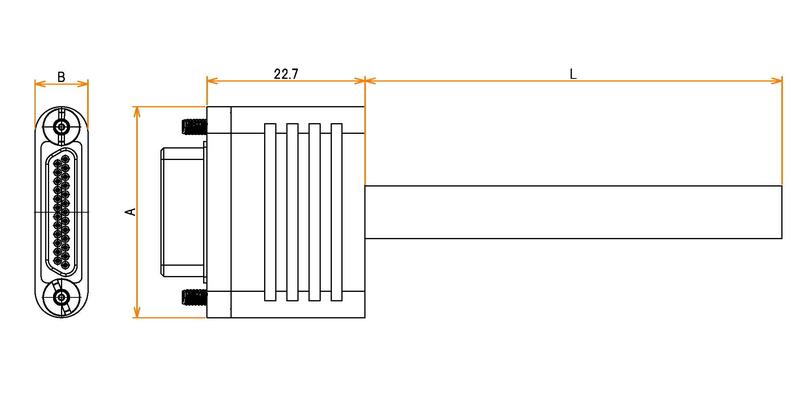

A | B | L | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|
| 20.2 | 7.6 | 600 | 9 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
76,600JPY
(with tax 84,260JPY)
|
|
| 24 | 7.6 | 600 | 15 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
109,700JPY
(with tax 120,670JPY)
|
|
| 27.8 | 7.6 | 600 | 21 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
125,700JPY
(with tax 138,270JPY)
|
|
| 30.4 | 7.6 | 900 | 25 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
274,100JPY
(with tax 301,510JPY)
|
|
| 34.2 | 7.6 | 600 | 31 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
138,300JPY
(with tax 152,130JPY)
|
|
| 38 | 7.6 | 900 | 37 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
347,600JPY
(with tax 382,360JPY)
|
|
| 36.7 | 8.7 | 600 | 51 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
237,200JPY
(with tax 260,920JPY)
|
|
| 52.2 | 9.8 | 600 | 100 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
418,400JPY
(with tax 460,240JPY)
|
| A | B | L | The number of electrode |
|---|---|---|---|
