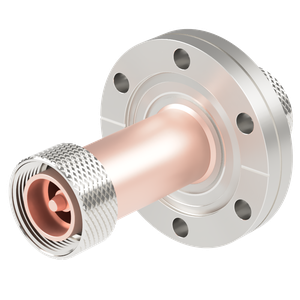

Feedthrough Coax 7/16 Ground Shield Both Side Plug

Feedthrough Coax 7/16 Ground Shield Both Side Plug

7/16 connector.
Double-sided connector connection type with ground and continuity is available.
Please select the most suitable connecting flange from NW/KF, ICF, and JIS standards.

see next
Basic Information
type 7/16
Connection type Vacuum side and the atmosphere
Flange material SUS 304
Maximum temperature 400℃
The lowest temperature -100℃
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 7.5 GHz
Withstand voltage: DC 2.7 kV
Inquiry for this subcategory

We have 7 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
 NW/KF ICF VF VG A B C D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
17593
N40F716J1
40 - - - 55 6 61 40.6 1
17594
N50F716J1
50 - - - 75 6 61 40.6 1
16116
C70F716J1
- 70 - - 70 12.7 61 40.6 1
17595
F40F716J1
- - 40 - 105 10 63.5 38.1 1
17596
F50F716J1
- - 50 - 120 10 63.5 38.1 1
17597
G40F716J1
- - - 40 105 10 63.5 38.1 1
17598
G50F716J1
- - - 50 120 10 63.5 38.1 1
NW/KF ICF VF VG A B C D The number of electrode
To detail page Contact Us

Filter by model

Flange

The number of electrode

フィードスルー 同軸 7/16 グランドシールド 両側プラグ嵌合 admin.label.item.catalog_image
