NW / KF-inch tube adapter SUS

NW / KF-inch tube adapter SUS

▼NW/KF Inch Tube Adapter
A wide variety of highly versatile inch tubes are lined up.
Tube diameter (inch): 1/16, 1/8, 1/4, 3/8, 1/2, 3/4, 1
Flange size (NW): 16, 25, 40, 50
Metric tube is here.
2 tubes are available here.

▼The following types of tube adapters are standardized (list)
Tubing: inch, mm
Fittings: Swagelok®, VCR®, V®-Lok, UJR®, VCO®, tapered thread, parallel thread, NPT
Flange: ICF, NW/KF, JIS-VF, JIS-VG
Flange-typed: 1 port, 2 ports
Nipple-typed: 1 port, 2 ports (angle, straight)
Tubes with penetrating vacuum side are also available (tubes, with joints at both ends, with joints on one side, with penetrating vacuum on one side, etc.)
We also offer radial port flanges with multiple adapters extending from a single flange.

▼Custom-made products are also available.
We can also accommodate changes in length, fittings, and flange size. Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

see next
Basic Information
Flange material SUS 304
Tubes / Pipes SUS 304
RoHS2 corresponding Compliant
Joint standard Tube end
Inquiry for this subcategory

We have 28 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

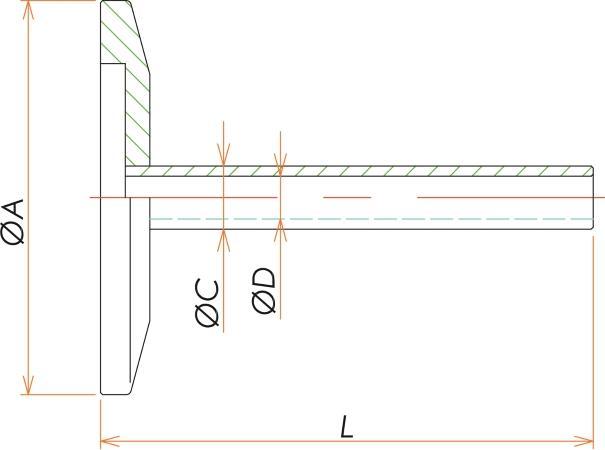

 NW/KF Tube / Fitting Size A C D L
Stock & Delivery
front.product.price
front.product.tax_included2
22819
NW16TA1/16
16 1/16 inch 30 1.58 0.5 50
stock
2 1-2 Business Days
When out of stock
20 Business Days
25,800JPY (with tax 28,380JPY)
22820
NW25TA1/16
25 1/16 inch 40 1.58 0.5 50
stock
2 1-2 Business Days
When out of stock
29 Business Days
44,900JPY (with tax 49,390JPY)
22821
NW40TA1/16
40 1/16 inch 55 1.58 0.5 50
stock
2 1-2 Business Days
When out of stock
30 Business Days
26,500JPY (with tax 29,150JPY)
22822
NW50TA1/16
50 1/16 inch 75 1.58 0.5 50
When out of stock
30 Business Days
23,400JPY (with tax 25,740JPY)
22457
NW16TA1/8
16 1/8 inch 30 3.18 1.74 50
stock
8 1-2 Business Days
When out of stock
Answered later
23,400JPY (with tax 25,740JPY)
22458
NW25TA1/8
25 1/8 inch 40 3.18 1.74 50
stock
1 1-2 Business Days
When out of stock
Answered later
25,600JPY (with tax 28,160JPY)
22459
NW40TA1/8
40 1/8 inch 55 3.18 1.74 50
stock
10 1-2 Business Days
When out of stock
15 Business Days
20,000JPY (with tax 22,000JPY)
28153
ZNW40TA1/8
40 1/8 inch 55 3.18 1.74 55
stock only
stock
1 1-2 Business Days
17,100JPY (with tax 18,810JPY)
22460
NW50TA1/8
50 1/8 inch 75 3.18 1.74 50
stock
3 1-2 Business Days
When out of stock
Answered later
24,600JPY (with tax 27,060JPY)
20142
NW16TA1/4
16 1/4 inch 30 6.35 4.35 50
stock
47 1-2 Business Days
When out of stock
20 Business Days
14,700JPY (with tax 16,170JPY)
20194
NW25TA1/4
25 1/4 inch 40 6.35 4.35 50
stock
144 1-2 Business Days
When out of stock
20 Business Days
14,900JPY (with tax 16,390JPY)
20229
NW40TA1/4
40 1/4 inch 55 6.35 4.35 50
stock
55 1-2 Business Days
When out of stock
20 Business Days
15,000JPY (with tax 16,500JPY)
20511
NW50TA1/4
50 1/4 inch 75 6.35 4.35 50
stock
16 1-2 Business Days
When out of stock
20 Business Days
15,300JPY (with tax 16,830JPY)
20143
NW16TA3/8
16 3/8 inch 30 9.52 7.52 50
stock
32 1-2 Business Days
When out of stock
20 Business Days
14,900JPY (with tax 16,390JPY)
20195
NW25TA3/8
25 3/8 inch 40 9.52 7.52 50
stock
71 1-2 Business Days
When out of stock
20 Business Days
15,100JPY (with tax 16,610JPY)
20230
NW40TA3/8
40 3/8 inch 55 9.52 7.52 50
stock
17 1-2 Business Days
When out of stock
20 Business Days
15,200JPY (with tax 16,720JPY)
20396
NW50TA3/8
50 3/8 inch 75 9.52 7.52 50
stock
5 1-2 Business Days
When out of stock
20 Business Days
15,500JPY (with tax 17,050JPY)
20141
NW16TA1/2
16 1/2 inch 30 12.7 10.22 50
stock
30 1-2 Business Days
When out of stock
20 Business Days
14,900JPY (with tax 16,390JPY)
20193
NW25TA1/2
25 1/2 inch 40 12.7 10.22 50
stock
94 1-2 Business Days
When out of stock
20 Business Days
15,500JPY (with tax 17,050JPY)
20276
NW40TA1/2
40 1/2 inch 55 12.7 10.22 50
stock
8 1-2 Business Days
When out of stock
20 Business Days
15,800JPY (with tax 17,380JPY)
20347
NW50TA1/2
50 1/2 inch 75 12.7 10.22 50
stock
8 1-2 Business Days
When out of stock
20 Business Days
18,100JPY (with tax 19,910JPY)
23038
NW16TA3/4
16 3/4 inch 30 19.05 15.75 50
stock
5 1-2 Business Days
When out of stock
20 Business Days
15,200JPY (with tax 16,720JPY)
23039
NW25TA3/4
25 3/4 inch 40 19.05 15.75 50
stock
16 1-2 Business Days
When out of stock
20 Business Days
15,400JPY (with tax 16,940JPY)
23040
NW40TA3/4
40 3/4 inch 55 19.05 15.75 50.4
stock
5 1-2 Business Days
When out of stock
20 Business Days
16,300JPY (with tax 17,930JPY)
23041
NW50TA3/4
50 3/4 inch 75 19.05 15.75 50
When out of stock
20 Business Days
17,500JPY (with tax 19,250JPY)
21301
NW25TA1/1
25 1 inch 40 25.4 22.1 50
stock
10 1-2 Business Days
When out of stock
Answered later
19,200JPY (with tax 21,120JPY)
21302
NW40TA1/1
40 1 inch 55 25.4 22.1 50
stock
26 1-2 Business Days
When out of stock
Answered later
20,100JPY (with tax 22,110JPY)
21303
NW50TA1/1
50 1 inch 75 25.4 22.1 50
stock
2 1-2 Business Days
When out of stock
20 Business Days
19,900JPY (with tax 21,890JPY)
NW/KF Tube / Fitting Size A C D L
