NW / KF, ICF, JIS-VF / VG standards, tube end, various types of general-purpose joint end (Swagelok®, VCR®, tapered screw) stocks conversion adapter of various standards such as the type as a standard product.
Quickly it can also be accommodated with respect to special order items such as conversion and change of the tube size of the catalog with no standard.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| The inner surface processing | Machined (Ra3.2 equivalent) |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |

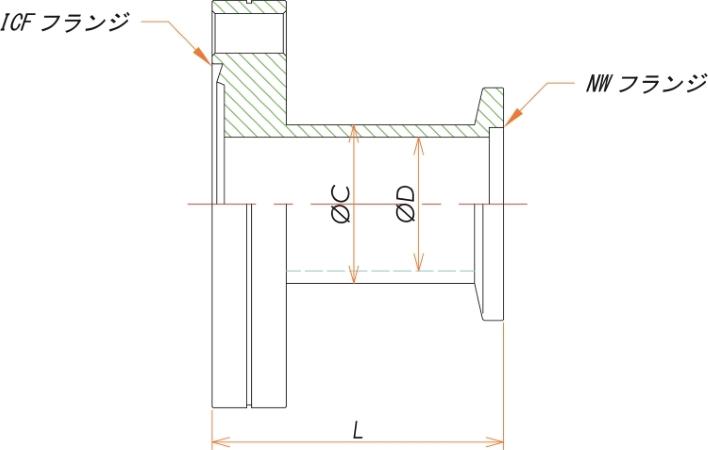

ICF | NW/KF | C | D | L | shape | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|
| 34 | 10 | 13.8 | 10 | 33 | Staight |
When out of stock
15 Business Days
|
14,900JPY
(with tax 16,390JPY)
|
|
| 34 | 16 | 17 | 13 | 33 | Staight |
stock
32
1-2 Business Days
waiting for completion
10
Arrival on Dec 24,2026
When out of stock
Answered later
|
10,700JPY
(with tax 11,770JPY)
|
|
| 34 | 25 | 17 | 13 | 33 | Staight |
stock
64
1-2 Business Days
waiting for completion
15
Arrival on Nov 26,2026
When out of stock
Answered later
|
11,000JPY
(with tax 12,100JPY)
|
|
| 34 | 25 | - | - | 44 | conical |
When out of stock
Answered later
|
17,100JPY
(with tax 18,810JPY)
|
|
| 54 (foreign) | 25 | 25.4 | 22.1 | 45 | Staight |
stock
2
1-2 Business Days
When out of stock
Answered later
|
19,100JPY
(with tax 21,010JPY)
|
|
| 54 | 25 | 27.2 | 23 | 54 | Staight |
stock
4
1-2 Business Days
When out of stock
15 Business Days
|
19,800JPY
(with tax 21,780JPY)
|
|
| 70 | 16 | 21.7 | 17.5 | 36 | Staight |
stock
6
1-2 Business Days
waiting for completion
10
Arrival on Jan 25,2027
When out of stock
Answered later
|
11,700JPY
(with tax 12,870JPY)
|
|
| 70 | 16 | - | - | 70 | conical |
When out of stock
Answered later
|
19,100JPY
(with tax 21,010JPY)
|
|
| 70 | 25 | 27.2 | 23 | 36 | Staight |
stock
62
1-2 Business Days
waiting for completion
50
Arrival on Apr 26,2027
When out of stock
Answered later
|
12,700JPY
(with tax 13,970JPY)
|
|
| 70 | 25 | - | - | 70 | conical |
When out of stock
Answered later
|
21,100JPY
(with tax 23,210JPY)
|
|
| 70 | 40 | 44.5 | 40.5 | 50 | Staight |
stock
62
1-2 Business Days
waiting for completion
10
Arrival on Nov 26,2026
When out of stock
Answered later
|
13,700JPY
(with tax 15,070JPY)
|
|
| 70 | 50 | 42.7 | 39.4 | 53 | Staight |
stock
23
1-2 Business Days
When out of stock
Answered later
|
27,700JPY
(with tax 30,470JPY)
|
|
| 70 | 50 | - | - | 70 | conical |
When out of stock
Answered later
|
41,100JPY
(with tax 45,210JPY)
|
|
| 70 | 50 | - | - | 70 | conical |
stock only
stock
4
1-2 Business Days
|
20,600JPY
(with tax 22,660JPY)
|
|
| 86 | 50 | 38.1 | 34 | 46 | Staight |
stock
4
1-2 Business Days
When out of stock
Answered later
|
27,100JPY
(with tax 29,810JPY)
|
|
| 114 | 16 | 21.7 | 17.5 | 53 | Staight |
stock
2
1-2 Business Days
When out of stock
Answered later
|
26,400JPY
(with tax 29,040JPY)
|
|
| 114 | 16 | - | - | - | conical |
When out of stock
Answered later
|
49,100JPY
(with tax 54,010JPY)
|
|
| 114 | 25 | 29 | 23 | 50 | Staight |
stock
33
1-2 Business Days
When out of stock
Answered later
|
26,000JPY
(with tax 28,600JPY)
|
|
| 114 | 25 | - | - | 74 | conical |
When out of stock
Answered later
|
49,100JPY
(with tax 54,010JPY)
|
|
| 114 | 40 | 44.5 | 40.5 | 50 | Staight |
stock
54
1-2 Business Days
When out of stock
Answered later
|
27,600JPY
(with tax 30,360JPY)
|
|
| 114 | 40 | - | - | 74 | conical |
When out of stock
Answered later
|
54,100JPY
(with tax 59,510JPY)
|
|
| 114 | 40 | - | - | 74 | conical |
stock only
stock
5
1-2 Business Days
|
27,100JPY
(with tax 29,810JPY)
|
|
| 114 | 50 | 60.5 | 54.9 | 50 | Staight |
stock
27
1-2 Business Days
When out of stock
Answered later
|
28,600JPY
(with tax 31,460JPY)
|
|
| 114 | 50 | - | - | 74 | conical |
When out of stock
Answered later
|
57,100JPY
(with tax 62,810JPY)
|
|
| 152 | 16 | 21.7 | 17.5 | 53 | Staight |
stock
7
1-2 Business Days
When out of stock
Answered later
|
45,100JPY
(with tax 49,610JPY)
|
|
| 152 | 16 | - | - | - | conical |
When out of stock
Answered later
|
67,700JPY
(with tax 74,470JPY)
|
|
| 152 | 25 | 29 | 23 | 50 | Staight |
stock
29
1-2 Business Days
When out of stock
Answered later
|
45,700JPY
(with tax 50,270JPY)
|
|
| 152 | 25 | - | - | - | conical |
When out of stock
Answered later
|
71,100JPY
(with tax 78,210JPY)
|
|
| 152 | 40 | 44.5 | 40.5 | 50 | Staight |
stock
14
1-2 Business Days
When out of stock
Answered later
|
47,100JPY
(with tax 51,810JPY)
|
|
| 152 | 40 | - | - | - | conical |
When out of stock
Answered later
|
74,100JPY
(with tax 81,510JPY)
|
|
| 152 | 50 | 60.5 | 54.9 | 50 | Staight |
stock
16
1-2 Business Days
When out of stock
Answered later
|
54,100JPY
(with tax 59,510JPY)
|
|
| 152 | 50 | - | - | 107 | conical |
When out of stock
Answered later
|
77,100JPY
(with tax 84,810JPY)
|
|
| 203 | 16 | 21.7 | 17.5 | 53 | Staight |
When out of stock
Answered later
|
45,700JPY
(with tax 50,270JPY)
|
|
| 203 | 16 | - | - | - | conical |
When out of stock
Answered later
|
91,100JPY
(with tax 100,210JPY)
|
|
| 203 | 25 | 29 | 23 | 50 | Staight |
When out of stock
Answered later
|
47,100JPY
(with tax 51,810JPY)
|
|
| 203 | 25 | - | - | - | conical |
When out of stock
Answered later
|
94,100JPY
(with tax 103,510JPY)
|
|
| 203 | 40 | 44.5 | 40.5 | 50 | Staight |
stock
4
1-2 Business Days
waiting for completion
6
Arrival on Nov 26,2026
When out of stock
Answered later
|
59,700JPY
(with tax 65,670JPY)
|
|
| 203 | 40 | 42.7 | 37.1 | 50 | Staight |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
37,300JPY
(with tax 41,030JPY)
|
|
| 203 | 50 | 60.5 | 54.9 | 50 | Staight |
stock
1
1-2 Business Days
When out of stock
Answered later
|
51,100JPY
(with tax 56,210JPY)
|
|
| 203 | 40 | - | - | - | conical |
When out of stock
Answered later
|
97,100JPY
(with tax 106,810JPY)
|
|
| 203 | 50 | - | - | - | conical |
When out of stock
Answered later
|
141,100JPY
(with tax 155,210JPY)
|
|
| 253 | 16 | 21.7 | 17.5 | 53 | Staight |
When out of stock
Answered later
|
72,000JPY
(with tax 79,200JPY)
|
|
| 253 | 25 | 27.2 | 23 | 53 | Staight |
When out of stock
Answered later
|
74,800JPY
(with tax 82,280JPY)
|
|
| 253 | 40 | 42.7 | 37.1 | 53 | Staight |
When out of stock
Answered later
|
78,300JPY
(with tax 86,130JPY)
|
|
| 253 | 50 | 60.5 | 54.9 | 53 | Staight |
When out of stock
Answered later
|
81,700JPY
(with tax 89,870JPY)
|
| ICF | NW/KF | C | D | L | shape |
|---|---|---|---|---|---|
