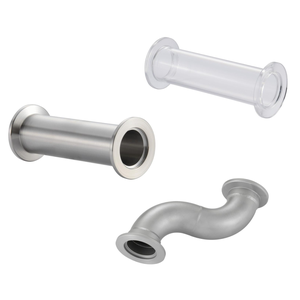

NW/KF Nipple SUS/Acrylic
▼NW/KF Nipple
Can be used for length adjustment of piping.
▼SUS type
Flange size (NW): 10, 16, 25, 40, 50
▼ S-shape type
・S-shape piping with two 90 degree bends
・Flange size (NW): 16, 25, 40, 50
▼Acrylic type
Acrylic type is resistant to breakage.
Visualization of piping lines
Flange size (NW) : 10, 16, 25, 40, 50
Length : 100
Avoid stainless steel clamps and use aluminum or plastic clamps.
*To prevent cracking, do not over-tighten the clamp.
Tighten the thumbscrews until resistance begins to appear on your fingers.
▼Others
Short and long flanges for welding (list), tees and crosses various types of piping are also available in various sizes.
We can also provide products with different flange sizes, lengths, and materials. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, click here.
| Basic Information | |
|---|---|
| RoHS2 corresponding | Compliant |
We have 18 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | Flange material | A | B | C | D | L | L2 | shape | The inner surface processing | Maximum temperature | The lowest temperature | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | SUS 304 | 30 | 12.2 | 13.8 | 10 | 40 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
3
1-2 Business Days
When out of stock
Answered later
|
5,700JPY
(with tax 6,270JPY)
|
|
| 10 | SUS 304 | 30 | 12.2 | 13.8 | 10 | 60 | - | Staight | GBB Processing | - | - |
stock
7
1-2 Business Days
When out of stock
Answered later
|
6,900JPY
(with tax 7,590JPY)
|
|
| 16 | SUS 304 | 30 | 17.2 | 21.7 | 17.2 | 40 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
When out of stock
Answered later
|
5,400JPY
(with tax 5,940JPY)
|
|
| 16 | SUS 304 | 30 | 17.2 | 21.7 | 17.5 | 100 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
41
1-2 Business Days
When out of stock
Answered later
|
6,600JPY
(with tax 7,260JPY)
|
|
| 16 | acrylic | 30 | 17.2 | 21.7 | 17.5 | 100 | - | Staight | nashi (Pyrus pyrifolia, esp. v | 70℃ | -40℃ |
stock
9
1-2 Business Days
When out of stock
30 Business Days
|
44,700JPY
(with tax 49,170JPY)
|
|
| 16 | SUS 304 | 30 | - | 21.7 | 17.2 | 58.1 | 53.1 | S | GBB Processing | - | - |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
19,100JPY
(with tax 21,010JPY)
|
|
| 25 | SUS 304 | 40 | 26.2 | 27.2 | 23 | 100 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
147
1-2 Business Days
waiting for completion
100
Arrival on Apr 05,2027
When out of stock
Answered later
|
7,200JPY
(with tax 7,920JPY)
|
|
| 25 | acrylic | 40 | 26.2 | 27.2 | 23 | 100 | - | Staight | nashi (Pyrus pyrifolia, esp. v | 70℃ | -40℃ |
stock
13
1-2 Business Days
When out of stock
30 Business Days
|
47,100JPY
(with tax 51,810JPY)
|
|
| 25 | SUS 304 | 40 | 26.2 | 27.2 | 23 | 40 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
53
1-2 Business Days
When out of stock
Answered later
|
6,300JPY
(with tax 6,930JPY)
|
|
| 25 | SUS 304 | 40 | - | 27.2 | 23 | 43.5 | 53.5 | S | GBB Processing | - | - |
stock
1
1-2 Business Days
When out of stock
15 Business Days
|
27,100JPY
(with tax 29,810JPY)
|
|
| 40 | SUS 304 | 55 | 41.2 | 42.7 | 37.1 | 40 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
44
1-2 Business Days
When out of stock
Answered later
|
8,700JPY
(with tax 9,570JPY)
|
|
| 40 | SUS 304 | 55 | 41.2 | 42.7 | 37.1 | 100 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
43
1-2 Business Days
When out of stock
Answered later
|
10,300JPY
(with tax 11,330JPY)
|
|
| 40 | acrylic | 55 | 41.2 | 42.7 | 37.1 | 100 | - | Staight | nashi (Pyrus pyrifolia, esp. v | 70℃ | -40℃ |
stock
14
1-2 Business Days
When out of stock
30 Business Days
|
51,100JPY
(with tax 56,210JPY)
|
|
| 40 | SUS 304 | 55 | - | 42.7 | 37.1 | 67.6 | 75.1 | S | GBB Processing | - | - |
stock
8
1-2 Business Days
When out of stock
15 Business Days
|
29,100JPY
(with tax 32,010JPY)
|
|
| 50 | SUS 304 | 75 | 52.2 | 60.5 | 52.2 | 40 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
10
1-2 Business Days
When out of stock
Answered later
|
7,700JPY
(with tax 8,470JPY)
|
|
| 50 | SUS 304 | 75 | 52.2 | 60.5 | 54.9 | 100 | - | Staight | Machined (Ra3.2 equivalent) | - | - |
stock
16
1-2 Business Days
waiting for completion
10
Arrival on Nov 26,2026
When out of stock
Answered later
|
12,700JPY
(with tax 13,970JPY)
|
|
| 50 | acrylic | 75 | 52.2 | 60.5 | 54.9 | 100 | - | Staight | nashi (Pyrus pyrifolia, esp. v | 70℃ | -40℃ |
stock
8
1-2 Business Days
When out of stock
30 Business Days
|
54,100JPY
(with tax 59,510JPY)
|
|
| 50 | SUS 304 | 75 | - | 60.5 | 55 | 96.2 | 113.7 | S | GBB Processing | - | - |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
41,100JPY
(with tax 45,210JPY)
|
| NW/KF | Flange material | A | B | C | D | L | L2 | shape | The inner surface processing | Maximum temperature | The lowest temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|
