ICF two-sided edge perforated flange SUS
It is an ultra-high vacuum compatible standard flange.
And subjecting the sealed portion to the knife edge shape, installed between the flange facing the metal gasket, it jamming with a knife edge portion, is the principle of securing the airtightness by tightening a bolt from the outside.
Up to ICF 34 ~ ICF 253 will have been standardized.
In addition there is also the handling of the ICF 305 or more sizes.
The fixed flange and the rotating flange are available, respectively, blank flange, and stocks perforated flange for standard pipe connection, drilled hole, the tap hole type.
Zero-length flanges of the size conversion, both sides edge flanges of the same size are also available.
Material SUS316L are also available.
| Basic Information | |
|---|---|
| Flange material | SUS 304 |
| RoHS2 corresponding | ○ |
| Fixed/Rotatable | pierced |
| Fixed/rotating | fix |
We have 7 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |

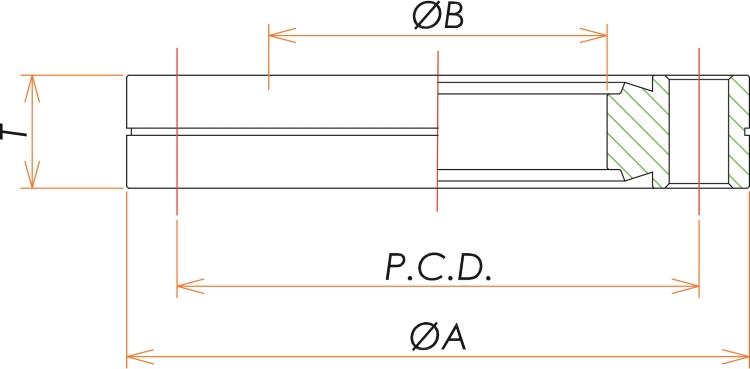

ICF | A | B | T | P.C.D | Hole diameter(depth) | Number of holes | Thru or Tap | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 34 | 34 | 15.9 | 7.5 | 27 | φ4.4 | 6 | Through |
stock
46
1-2 Business Days
When out of stock
Answered later
|
5,900JPY
(with tax 6,490JPY)
|
|
| 70 | 70 | 38.4 | 12.7 | 58.7 | φ6.8 | 6 | Through |
stock
25
1-2 Business Days
When out of stock
Answered later
|
9,100JPY
(with tax 10,010JPY)
|
|
| 114 | 114 | 63.8 | 17.5 | 92.2 | φ8.4 | 8 | Through |
stock
6
1-2 Business Days
waiting for completion
10
Arrival on Mar 05,2025
When out of stock
Answered later
|
23,500JPY
(with tax 25,850JPY)
|
|
| 152 | 152 | 101.9 | 20 | 130.3 | φ8.4 | 16 | Through |
stock
3
1-2 Business Days
waiting for completion
10
Arrival on Mar 05,2025
When out of stock
Answered later
|
39,300JPY
(with tax 43,230JPY)
|
|
| 203 | 203 | 153 | 22 | 181 | φ8.4 | 20 | Through |
stock
9
1-2 Business Days
When out of stock
Answered later
|
57,300JPY
(with tax 63,030JPY)
|
|
| 253 | 253 | 203 | 25 | 231.8 | φ8.4 | 24 | Through |
stock
4
1-2 Business Days
When out of stock
Answered later
|
92,900JPY
(with tax 102,190JPY)
|
|
| 305 | 305 | 254.5 | 25.9 | 284 | φ8.5 | 32 | Through |
stock
4
1-2 Business Days
When out of stock
Answered later
|
141,100JPY
(with tax 155,210JPY)
|
| ICF | A | B | T | P.C.D | Hole diameter(depth) | Number of holes | Thru or Tap |
|---|---|---|---|---|---|---|---|
