▼NW/KF Short flange/Long flange
NW/KF Short flange and Long flange
Material: SUS304, Aluminum

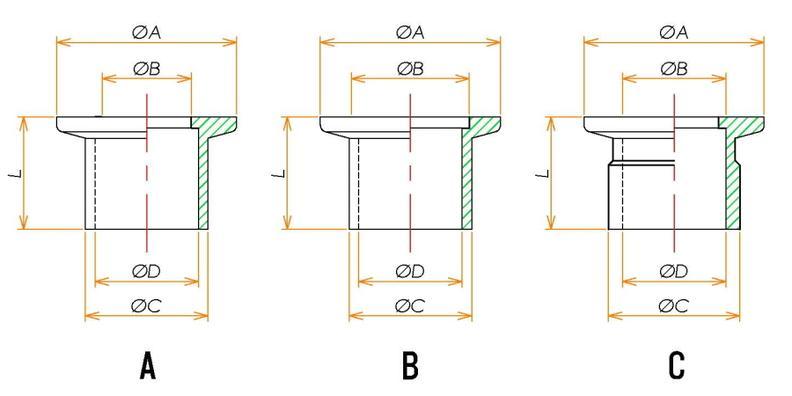

*Shapes differ depending on flange size. Please see drawings for details.
▼SUS type
Material: SUS304
Flange size (NW): 10, 16, 25, 40, 50
Length: 10, 20, 50, 70, 230, 480
▼Aluminum type
Material: Aluminum (A5052)
Flange size (NW): 10, 16, 25, 40, 50
Length :50
▼Other
Blank flanges for sealing and processing, and flanges with holes for welding are also available in a wide variety of sizes.
We are also available for consultation regarding additional processing and material changes to products. Please contact us by clicking the "Inquiry" button on the right side of the page.
For precision cleaning requests, please click here.
| Basic Information | |
|---|---|
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | Dimensions type | A | B | C | D | E | L | Flange material | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | B | 30 | 12.2 | 13.8 | 10 | - | 10 | SUS 304 |
When out of stock
30 Business Days
|
1,900JPY
(with tax 2,090JPY)
|
|
| 10 | B | 30 | 12.2 | 13.8 | 10 | - | 20 | SUS 304 |
stock
17
1-2 Business Days
When out of stock
21 Business Days
|
2,400JPY
(with tax 2,640JPY)
|
|
| 10 | B | 30 | 12.2 | 13.8 | 10 | - | 50 | SUS 304 |
stock
3
1-2 Business Days
When out of stock
Answered later
|
4,500JPY
(with tax 4,950JPY)
|
|
| 10 | B | 30 | 12.2 | 13.8 | 10 | - | 70 | SUS 304 |
When out of stock
Answered later
|
9,400JPY
(with tax 10,340JPY)
|
|
| 16 | A | 30 | 17.2 | 21.7 | 17.5 | - | 10 | SUS 304 |
stock
17
1-2 Business Days
When out of stock
30 Business Days
|
1,500JPY
(with tax 1,650JPY)
|
|
| 16 | C | 30 | 17.2 | 21.7 | 17.5 | - | 20 | SUS 304 |
stock
58
1-2 Business Days
When out of stock
30 Business Days
|
1,800JPY
(with tax 1,980JPY)
|
|
| 16 | C | 30 | 17.2 | 21.7 | 17.5 | - | 50 | SUS 304 |
stock
188
1-2 Business Days
When out of stock
30 Business Days
|
2,800JPY
(with tax 3,080JPY)
|
|
| 16 | C | 30 | 17.2 | 21.7 | 17.5 | - | 50 | Aluminum(A5052) |
stock
5
1-2 Business Days
When out of stock
30 Business Days
|
17,100JPY
(with tax 18,810JPY)
|
|
| 16 | C | 30 | 17.2 | 21.7 | 17.5 | - | 70 | SUS 304 |
stock
20
1-2 Business Days
When out of stock
30 Business Days
|
2,900JPY
(with tax 3,190JPY)
|
|
| 16 | A | 30 | 17.2 | 21.7 | 17.5 | - | 230 | SUS 304 |
stock
6
1-2 Business Days
When out of stock
15 Business Days
|
24,700JPY
(with tax 27,170JPY)
|
|
| 16 | A | 30 | 17.2 | 21.7 | 17.5 | - | 480 | SUS 304 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
27,100JPY
(with tax 29,810JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 10 | SUS 304 |
stock
30
1-2 Business Days
waiting for completion
100
Arrival on Nov 26,2026
When out of stock
30 Business Days
|
2,000JPY
(with tax 2,200JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 20 | SUS 304 |
stock
188
1-2 Business Days
waiting for completion
100
Arrival on Dec 24,2026
When out of stock
30 Business Days
|
2,300JPY
(with tax 2,530JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 50 | SUS 304 |
waiting for completion
127
Arrival on Nov 26,2026
When out of stock
30 Business Days
|
3,100JPY
(with tax 3,410JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 50 | Aluminum(A5052) |
stock
11
1-2 Business Days
When out of stock
30 Business Days
|
17,700JPY
(with tax 19,470JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 70 | SUS 304 |
stock
18
1-2 Business Days
When out of stock
30 Business Days
|
5,700JPY
(with tax 6,270JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 230 | SUS 304 |
stock
7
1-2 Business Days
When out of stock
Answered later
|
27,100JPY
(with tax 29,810JPY)
|
|
| 25 | B | 40 | 26.2 | 27.2 | 23 | - | 480 | SUS 304 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
29,100JPY
(with tax 32,010JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 10 | SUS 304 |
waiting for completion
55
Arrival on Nov 26,2026
When out of stock
30 Business Days
|
2,700JPY
(with tax 2,970JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 20 | SUS 304 |
stock
86
1-2 Business Days
waiting for completion
50
Arrival on Nov 26,2026
When out of stock
30 Business Days
|
3,500JPY
(with tax 3,850JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 50 | SUS 304 |
stock
348
1-2 Business Days
When out of stock
30 Business Days
|
4,900JPY
(with tax 5,390JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 50 | Aluminum(A5052) |
stock
11
1-2 Business Days
When out of stock
30 Business Days
|
19,700JPY
(with tax 21,670JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 70 | SUS 304 |
stock
26
1-2 Business Days
When out of stock
30 Business Days
|
9,000JPY
(with tax 9,900JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 230 | SUS 304 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
31,100JPY
(with tax 34,210JPY)
|
|
| 40 | B | 55 | 41.2 | 42.7 | 37.1 | - | 480 | SUS 304 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
34,100JPY
(with tax 37,510JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 54.9 | - | 10 | SUS 304 |
stock
40
1-2 Business Days
When out of stock
30 Business Days
|
3,400JPY
(with tax 3,740JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 55 | - | 20 | SUS 304 |
stock
62
1-2 Business Days
When out of stock
Answered later
|
5,000JPY
(with tax 5,500JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 54.9 | - | 50 | SUS 304 |
waiting for completion
29
Arrival on Apr 05,2027
When out of stock
30 Business Days
|
5,700JPY
(with tax 6,270JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 55 | - | 230 | SUS 304 |
stock
3
1-2 Business Days
When out of stock
15 Business Days
|
74,700JPY
(with tax 82,170JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 55 | - | 480 | SUS 304 |
stock
2
1-2 Business Days
When out of stock
15 Business Days
|
81,100JPY
(with tax 89,210JPY)
|
|
| 50 | A | 75 | 52.2 | 60.5 | 54.9 | - | 50 | Aluminum(A5052) |
stock
3
1-2 Business Days
When out of stock
30 Business Days
|
24,100JPY
(with tax 26,510JPY)
|
|
| 63 | D | 87 | 70.2 | 76.3 | - | - | 20 | SUS 304 |
stock
5
1-2 Business Days
When out of stock
30 Business Days
|
7,900JPY
(with tax 8,690JPY)
|
|
| 63 | D | 87 | 70.2 | 76.3 | - | - | 50 | SUS 304 |
stock
7
1-2 Business Days
waiting for completion
3
Arrival on Apr 08,2027
When out of stock
Answered later
|
9,100JPY
(with tax 10,010JPY)
|
|
| 80 | D | 114 | 83.2 | 89.1 | - | - | 20 | SUS 304 |
stock
16
1-2 Business Days
waiting for completion
5
Arrival on Jan 26,2027
When out of stock
30 Business Days
|
9,100JPY
(with tax 10,010JPY)
|
|
| 100 | A | 134 | 102.2 | 114.3 | 108.3 | - | 20 | SUS 304 |
stock
4
1-2 Business Days
When out of stock
30 Business Days
|
11,100JPY
(with tax 12,210JPY)
|
|
| 125 | E | 161 | 127.2 | 144 | 140.8 | 5 | 20 | SUS 304 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
24,100JPY
(with tax 26,510JPY)
|
|
| 160 | A | 190 | 153.2 | 165.2 | 158.4 | - | 20 | SUS 304 |
stock
3
1-2 Business Days
When out of stock
30 Business Days
|
27,100JPY
(with tax 29,810JPY)
|
|
| 200 | E | 252 | 213.3 | 236 | 217.8 | 5 | 20 | SUS 304 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
37,100JPY
(with tax 40,810JPY)
|
|
| 250 | E | 301 | 261.3 | 285 | 269 | 5 | 20 | SUS 304 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
114,100JPY
(with tax 125,510JPY)
|
| NW/KF | Dimensions type | A | B | C | D | E | L | Flange material |
|---|---|---|---|---|---|---|---|---|
