ICF gasket

ICF gasket

▼ICF Gasket
For Ultra-High Vacuum
Metal seals for ICF flanges
Corrosion-resistant plated products are also available.
Please select according to operating temperature, pressure range, and application.
5 pieces per pack (except Viton®,and In some sizes of Copper or Nickel gaskets )

▼Annealed Gaskets
These gaskets are heat-treated to be softer than standard types, reducing stress on the viewport.

▼The following types are standardized
Applicable flanges (ICF): 34, 54, 70, 86, 114, 117, 152, 203, 253, 305, 356，406
Material: Oxygen-free copper, oxygen-free copper + silver plating, oxygen-free copper + gold plating, aluminum, nickel, Viton®.
※Only Viton® can be used up to 10 times, up to high vacuum.
※ICF54 size copper gasket is available in two types: "for domestic specifications" and "for overseas specifications.

▼Others
We also offer gasket holders (for ICF70 and above), which are convenient for installation on flanges such as wall surfaces.
If you have any questions about our products, please feel free to contact us from the "Inquiry" button.

Precision Cleaning Request.

see next
Basic Information
RoHS2 corresponding ○
Inquiry for this subcategory

We have 53 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

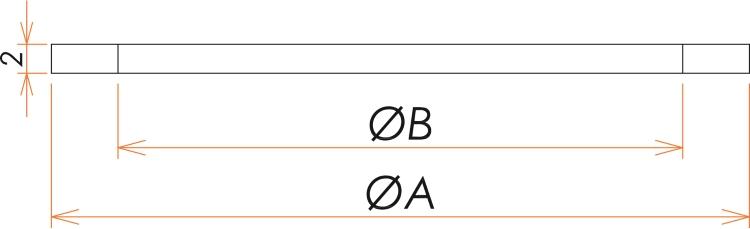

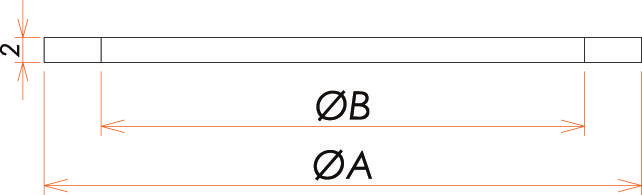

 ICF A B Materials and Finishes type Maximum temperature Quantity T
Stock & Delivery
front.product.price
front.product.tax_included2
20056
ICF34GCU
34 21.3 16 Oxygen-free copper Generally 450℃ 5 2
40985
ICF34GCUA
34 21 16 Oxygen-free copper + annealed Annealed 450℃ 5 2
22095
ICF34GCUGP
34 21.3 16.3 Oxygen-free copper + gold-plat Generally - 5 2
20409
ICF34GCUSP
34 21.3 16 Copper with silver plating Generally - 5 2
20055
ICF34GAL
34 21.3 16.3 Aluminum A1050 Generally 150℃ 5 2
24018
ICF34GNI
34 21.2 16.3 Ni + annealed Generally 400℃ 5 2
20991
ICF54GCUAA
54 (foreign) 32.8 25.7 Oxygen-free copper Generally 450℃ 5 2
24127
ICF54GCUB
54 34.8 26 Oxygen-free copper Generally 450℃ 5 2
24019
ICF54GNI
54 34.8 26 Ni + annealed Generally 400℃ 1 2
20086
ICF70GCU
70 48.2 39 Oxygen-free copper Generally 450℃ 5 2
40986
ICF70GCUA
70 48 37 Oxygen-free copper + annealed Annealed 450℃ 5 2
22096
ICF70GCUGP
70 48.2 39 Oxygen-free copper + gold-plat Generally - 5 2
20420
ICF70GCUSP
70 48.2 39 Copper with silver plating Generally - 5 2
20085
ICF70GAL
70 48.2 39 Aluminum A1050 Generally 150℃ 5 2
24020
ICF70GNI
70 48.1 39 Ni + annealed Generally 400℃ 5 2
21341
ICF86GCU
86 61.6 51 Oxygen-free copper Generally 450℃ 5 2
20012
ICF114GCU
114 82.4 63.6 Oxygen-free copper Generally 450℃ 5 2
40987
ICF114GCUA
114 82 63 Oxygen-free copper + annealed Annealed 450℃ 5 2
22097
ICF114GCUGP
114 82.4 64 Oxygen-free copper + gold-plat Generally - 5 2
20669
ICF114GCUSP
114 82.4 63.6 Copper with silver plating Generally - 5 2
40199
953-5015
114 - - Oxygen-free copper - - 5 -
20011
ICF114GAL
114 / 114 82.4 / 82.4 64 / 64 Aluminum A1050 / Aluminum A1050 Generally / Generally 150℃ / 150℃ 5 / 5 2 / 2
24021
ICF114GNI
114 82.3 64 Ni + annealed Generally 400℃ 1 2
24051
ICF117GCU
117 91.4 76.5 Oxygen-free copper Generally 450℃ 5 2
20028
ICF152GCU
152 120.5 101.8 Oxygen-free copper Generally 450℃ 5 2
40988
ICF152GCUA
152 120 101 Oxygen-free copper + annealed Annealed 450℃ 5 2
22098
ICF152GCUGP
152 120.5 102 Oxygen-free copper + gold-plat Generally - 5 2
20408
ICF152GCUSP
152 120.5 101.8 Copper with silver plating Generally - 5 2
20027
ICF152GAL
152 120.5 102 Aluminum A1050 Generally 150℃ 5 2
24022
ICF152GNI
152 120.4 102 Ni + annealed Generally 400℃ 1 2
20036
ICF203GCU
203 171.3 152.6 Oxygen-free copper Generally 450℃ 5 2
40989
ICF203GCUA
203 171 152 Oxygen-free copper + annealed Annealed 450℃ 5 2
22099
ICF203GCUGP
203 171.3 153 Oxygen-free copper + gold-plat Generally - 5 2
20462
ICF203GCUSP
203 171.3 152.7 Copper with silver plating Generally - 5 2
20400
ICF203GAL
203 171.3 153 Aluminum A1050 Generally 150℃ 5 2
24023
ICF203GNI
203 171.2 153 Ni + annealed Generally 400℃ 1 2
20043
ICF253GCU
253 222.1 203.2 Oxygen-free copper Generally 450℃ 5 2
22100
ICF253GCUGP
253 222.1 204 Oxygen-free copper + gold-plat Generally - 5 2
20463
ICF253GCUSP
253 222.1 204 Copper with silver plating Generally - 5 2
26185
ICF305GCUSP
305 272.9 254.2 Copper with silver plating Generally - 5 2
20381
ICF253GAL
253 222.1 204 Aluminum A1050 Generally 150℃ 5 2
24024
ICF253GNI
253 222 204 Ni + annealed Generally 400℃ 1 2
40990
ICF253GCUA
253 222 204 Oxygen-free copper + annealed Annealed 450℃ 5 2
20519
ICF305GCU
305 272.9 254.2 Oxygen-free copper Generally 450℃ 5 2
22448
ICF356GCU
356 313 300 Oxygen-free copper Generally 450℃ 5 2
24300
ICF406GCU
406 369 351 Oxygen-free copper Generally 450℃ 1 2
27976
ICF34GCUP
34 21.3 18.5 Oxygen-free copper IPD 450℃ 5 2
27977
ICF70GCUP
70 48.1 43.1 Oxygen-free copper IPD 450℃ 5 2.5
27978
ICF114GCUP
114 82.4 78.4 Oxygen-free copper IPD 450℃ 5 2.5
27979
ICF152GCUP
152 120.4 116.3 Oxygen-free copper IPD 450℃ 5 2.5
27980
ICF203GCUP
203 171.2 167 Oxygen-free copper IPD 450℃ 5 2.5
27981
ICF253GCUP
253 222 218.1 Oxygen-free copper IPD 450℃ 5 2.5
28163
ICF305GCUP
305 272.9 268.5 Oxygen-free copper IPD 450℃ 5 3
ICF A B Materials and Finishes type Maximum temperature Quantity T
To detail page Contact Us

Filter by model

stock status

Flange

type

T

Materials and Finishes

Flange

type

T

Materials and Finishes

ICF ガスケット admin.label.item.catalog_image
・ICF54GCUAA
　主に海外仕様
　ガスケット外径：Φ32.8
　取付フランジのボルト穴数：４個

・ICF54GCUB
　主に国内仕様
　ガスケット外径：Φ34.8
　取付フランジのボルト穴数：6個
　コスモ・テック型式：ICF54F用
https://static.cosmotec-co.jp/html/template/default/assets/pdf/info/catalog/cosmotec/cosmotec_catalog_icf.pdf#page=2
トルク値
