  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. Coaxial SMA type
  5. Feedthrough coaxial SMA-JJ ground shield on both s

Feedthrough coaxial SMA-JJ ground shield on both s

Feedthrough coaxial SMA-JJ ground shield on both s

Sub Miniature Type-A
▼ Feedthrough Coaxial SMA-JJ Ground Shield Both Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
SMA connector connection on both vacuum and atmospheric side
Connection flanges standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized(List)
Ground shielded single-sided plug mating
Floating shield plugging on one side
Floating shield plug mating on both sides

▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

see next
Basic Information
type SMA
Connection type Double-Ended
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa・㎥/sec
Classification Flanged terminal
type Ground shield
Impedance 50 Ω
frequency 6500 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 1 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding Compliant
Inquiry for this subcategory

We have 34 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

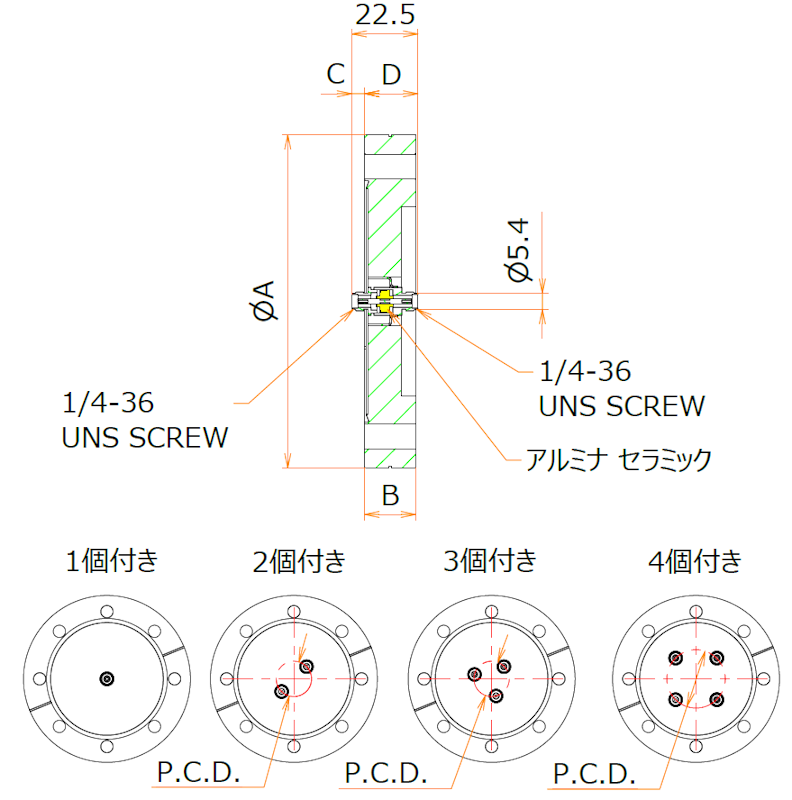

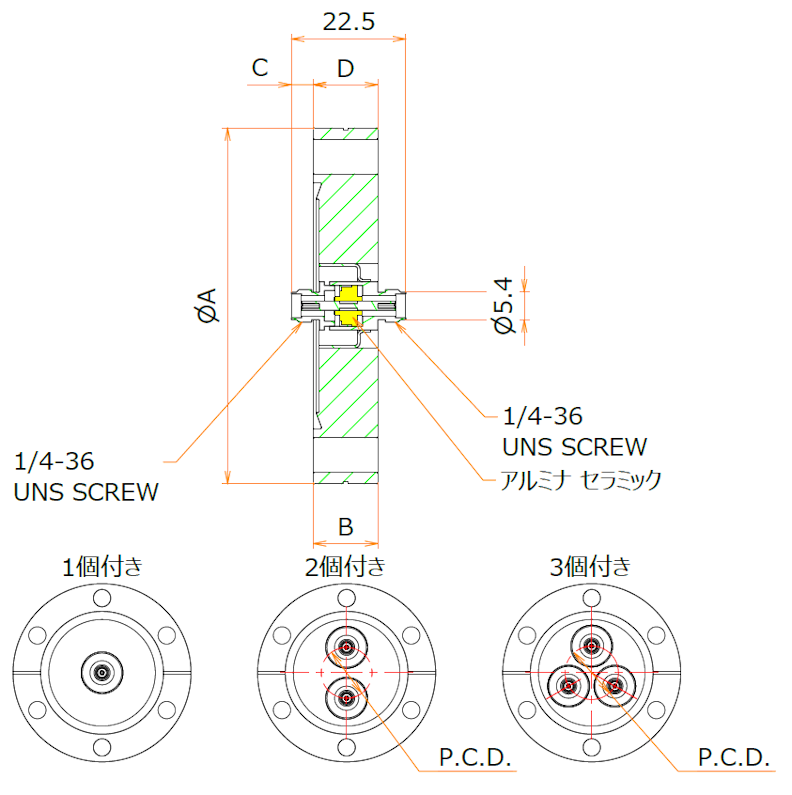

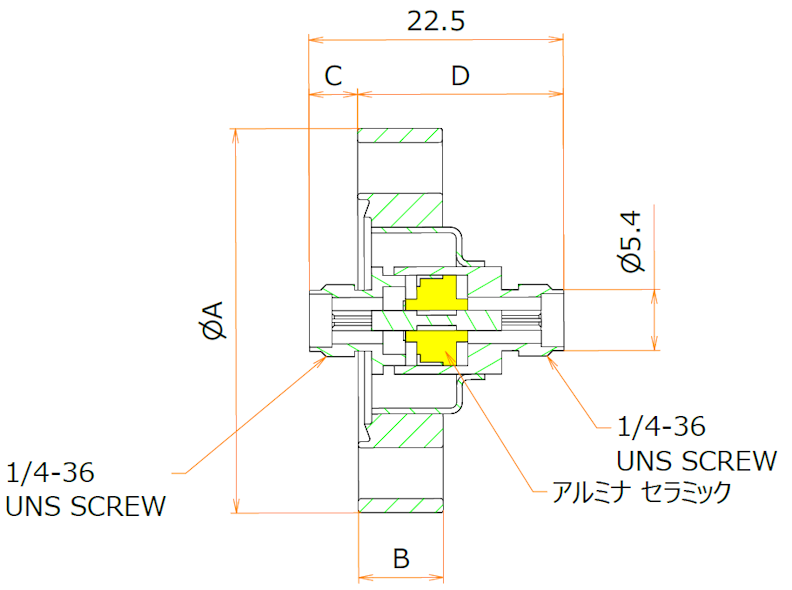

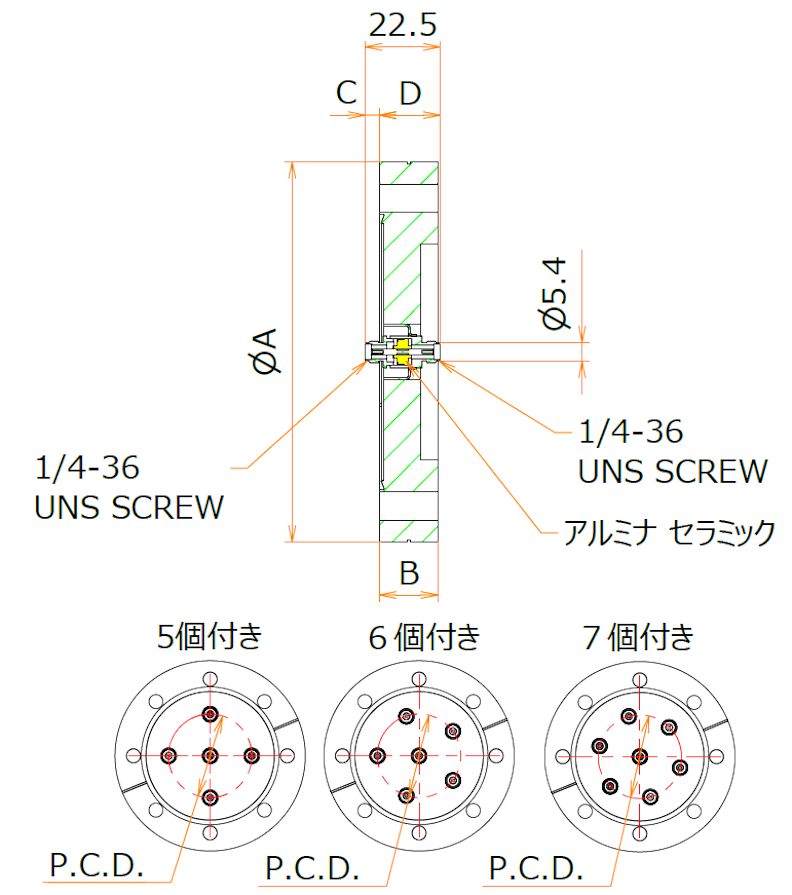

NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
16 - - - 30 6 3 20 - 1
stock
13 1-2 Business Days
When out of stock
Answered later
72,100JPY (with tax 79,310JPY)
25 - - - 40 6 3 19.5 - 1
stock
5 1-2 Business Days
When out of stock
Answered later
72,300JPY (with tax 79,530JPY)
40 - - - 55 6 3 19.5 - 1
When out of stock
Answered later
72,600JPY (with tax 79,860JPY)
40 - - - 55 6 3 19.5 20 2
stock
2 1-2 Business Days
When out of stock
Answered later
135,500JPY (with tax 149,050JPY)
40 - - - 55 6 3 19.5 21 3
stock
3 1-2 Business Days
When out of stock
Answered later
198,400JPY (with tax 218,240JPY)
50 - - - 75 6 3 19.5 - 1
When out of stock
Answered later
73,100JPY (with tax 80,410JPY)
50 - - - 75 6 3 19.5 20 2
When out of stock
Answered later
136,000JPY (with tax 149,600JPY)
50 - - - 75 6 3 19.5 21 3
When out of stock
Answered later
198,900JPY (with tax 218,790JPY)
50 - - - 75 6 3 19.5 28 4
When out of stock
15 Business Days
261,800JPY (with tax 287,980JPY)
- 34 - - 34 7.5 3.5 19 - 1
stock
13 1-2 Business Days
When out of stock
Answered later
73,400JPY (with tax 80,740JPY)
- 70 - - 70 12.7 3.5 19 - 1
stock
7 1-2 Business Days
When out of stock
Answered later
74,800JPY (with tax 82,280JPY)
- 70 - - 70 12.7 3.5 19 20 2
stock
1 1-2 Business Days
When out of stock
Answered later
137,700JPY (with tax 151,470JPY)
- 70 - - 70 12.7 3.5 19 21 3
stock
7 1-2 Business Days
When out of stock
Answered later
200,600JPY (with tax 220,660JPY)
- 114 - - 114 17.5 3.5 19 - 1
When out of stock
15 Business Days
81,700JPY (with tax 89,870JPY)
- 114 - - 114 17.5 3.5 19 30 2
When out of stock
15 Business Days
144,600JPY (with tax 159,060JPY)
- 114 - - 114 17.5 3.5 19 30 3
When out of stock
15 Business Days
207,500JPY (with tax 228,250JPY)
- 114 - - 114 17.5 3.5 19 39 4
When out of stock
15 Business Days
270,400JPY (with tax 297,440JPY)
- 114 - - 114 17.5 3.5 19 44 5
When out of stock
15 Business Days
333,300JPY (with tax 366,630JPY)
- 114 - - 114 17.5 3.5 19 44 6
When out of stock
15 Business Days
396,200JPY (with tax 435,820JPY)
- 114 - - 114 17.5 3.5 19 44 7
When out of stock
15 Business Days
459,100JPY (with tax 505,010JPY)
- - 20 - 80 8 5.5 17 - 1
When out of stock
Answered later
74,200JPY (with tax 81,620JPY)
- - 25 - 90 8 5.5 17 - 1
When out of stock
Answered later
75,100JPY (with tax 82,610JPY)
- - 25 - 90 8 5.5 17 20 2
When out of stock
Answered later
137,800JPY (with tax 151,580JPY)
- - 40 - 105 10 5.5 17 - 1
When out of stock
Answered later
76,200JPY (with tax 83,820JPY)
- - 40 - 105 10 5.5 17 20 2
When out of stock
Answered later
138,800JPY (with tax 152,680JPY)
- - 40 - 105 10 5.5 17 25 3
When out of stock
Answered later
201,700JPY (with tax 221,870JPY)
- - 40 - 105 10 5.5 17 30 4
stock
1 1-2 Business Days
When out of stock
Answered later
264,600JPY (with tax 291,060JPY)
- - - 20 80 8 5.5 17 - 1
When out of stock
Answered later
74,200JPY (with tax 81,620JPY)
- - - 25 90 8 5.5 17 - 1
When out of stock
Answered later
75,100JPY (with tax 82,610JPY)
- - - 25 90 8 5.5 17 20 2
When out of stock
Answered later
137,800JPY (with tax 151,580JPY)
- - - 40 105 10 5.5 17 - 1
When out of stock
Answered later
76,200JPY (with tax 83,820JPY)
- - - 40 105 10 5.5 17 20 2
When out of stock
Answered later
138,800JPY (with tax 152,680JPY)
- - - 40 105 10 5.5 17 25 3
When out of stock
Answered later
201,700JPY (with tax 221,870JPY)
- - - 40 105 10 5.5 17 30 4
When out of stock
Answered later
264,600JPY (with tax 291,060JPY)
NW/KF ICF VF VG A B C D P.C.D The number of electrode
