Sub Miniature Type-A
▼ Feedthrough Coaxial SMA-R Ground Shield One Side Plug Mating
1kV 3A compatible
For 50Ω transmission
Ground and continuity
Electrode on vacuum side, SMA connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized(List)
Floating shield single-sided plug mating
Gland shield plugging on both sides
Floating shield plugging on both sides
▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | SMA |
| Connection type | Single-Ended |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa・㎥/sec |
| Classification | Flanged terminal |
| type | Ground shield |
| Impedance | 50 Ω |
| frequency | 6500 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 1 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | Compliant |
※ Please click on the product code or model for more information.
front.product.product_code Model |

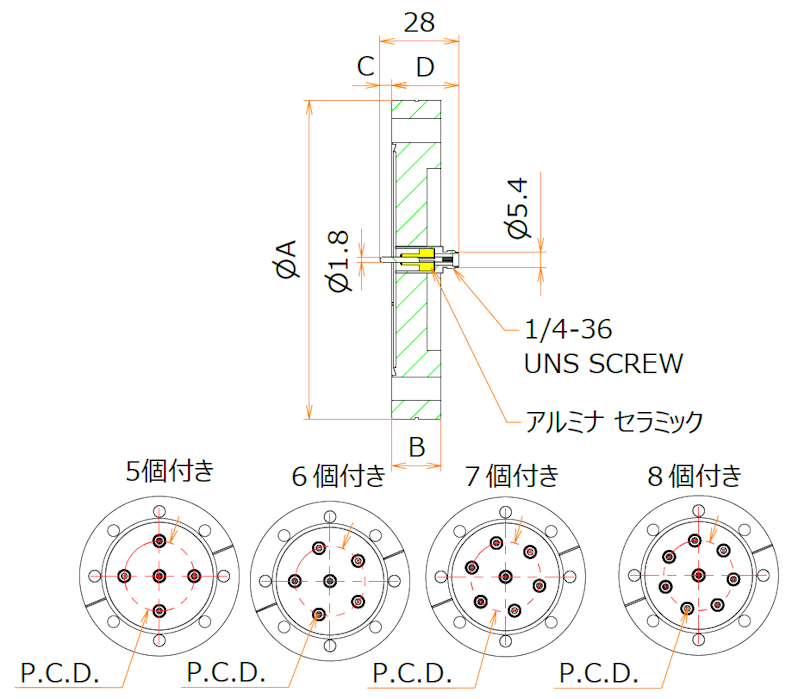

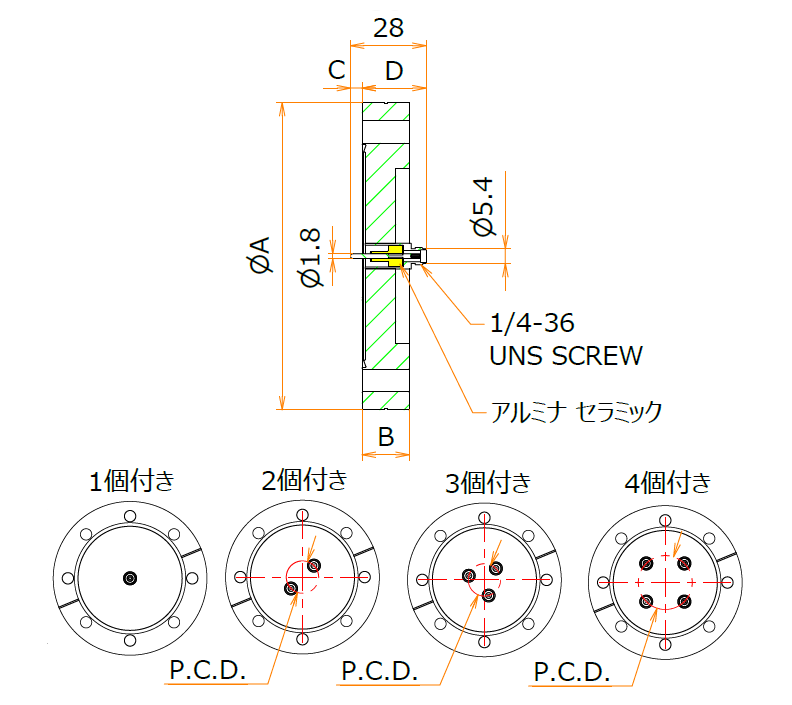

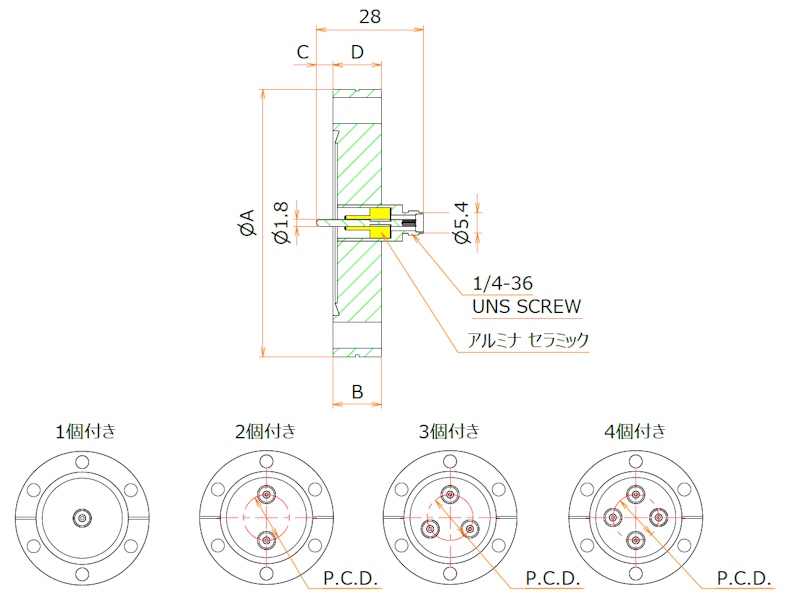

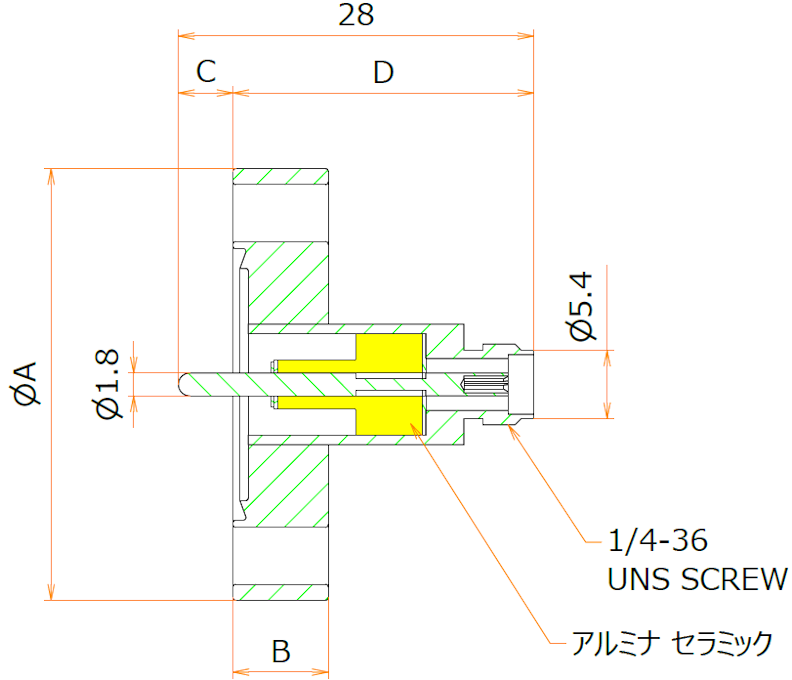

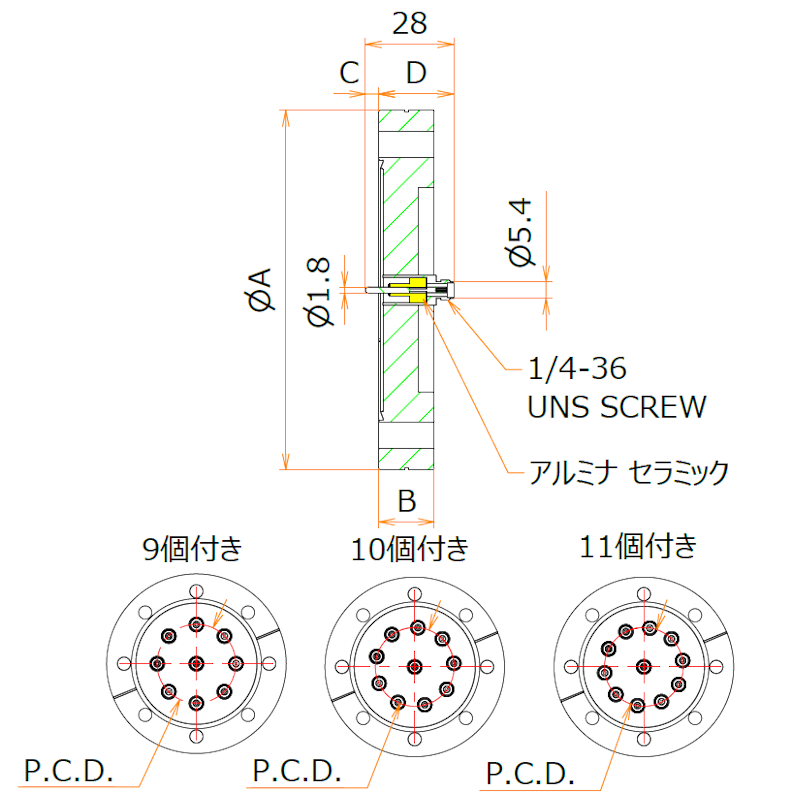

NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 6 | 3 | 25 | - | 1 |
stock
6
1-2 Business Days
When out of stock
Answered later
|
45,900JPY
(with tax 50,490JPY)
|
|
| 25 | - | - | - | 40 | 6 | 3 | 25 | - | 1 |
When out of stock
Answered later
|
46,100JPY
(with tax 50,710JPY)
|
|
| 40 | - | - | - | 55 | 6 | 3 | 25 | - | 1 |
When out of stock
Answered later
|
46,400JPY
(with tax 51,040JPY)
|
|
| 40 | - | - | - | 55 | 6 | 3 | 25 | 24 | 2 |
When out of stock
Answered later
|
92,900JPY
(with tax 102,190JPY)
|
|
| 40 | - | - | - | 55 | 6 | 3 | 25 | 24 | 3 |
When out of stock
Answered later
|
139,400JPY
(with tax 153,340JPY)
|
|
| 40 | - | - | - | 55 | 6 | 3 | 25 | 24 | 4 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
185,900JPY
(with tax 204,490JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | - | 1 |
When out of stock
Answered later
|
46,900JPY
(with tax 51,590JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 24 | 2 |
When out of stock
Answered later
|
93,400JPY
(with tax 102,740JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 24 | 3 |
When out of stock
Answered later
|
139,900JPY
(with tax 153,890JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 24 | 4 |
When out of stock
Answered later
|
186,400JPY
(with tax 205,040JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 36 | 5 |
When out of stock
15 Business Days
|
232,900JPY
(with tax 256,190JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 36 | 6 |
When out of stock
15 Business Days
|
279,400JPY
(with tax 307,340JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 36 | 7 |
When out of stock
15 Business Days
|
325,900JPY
(with tax 358,490JPY)
|
|
| 50 | - | - | - | 75 | 6 | 3 | 25 | 40 | 8 |
When out of stock
15 Business Days
|
372,400JPY
(with tax 409,640JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 3.5 | 24.5 | - | 1 |
stock
2
1-2 Business Days
When out of stock
Answered later
|
47,200JPY
(with tax 51,920JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 3.5 | 24.5 | - | 1 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
48,600JPY
(with tax 53,460JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 3.5 | 24.5 | 24 | 2 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
95,100JPY
(with tax 104,610JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 3.5 | 24.5 | 24 | 3 |
When out of stock
Answered later
|
141,600JPY
(with tax 155,760JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 3.5 | 24.5 | 24 | 4 |
stock
1
1-2 Business Days
When out of stock
Answered later
|
188,100JPY
(with tax 206,910JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 32 | - |
When out of stock
15 Business Days
|
55,500JPY
(with tax 61,050JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 32 | 2 |
When out of stock
15 Business Days
|
102,000JPY
(with tax 112,200JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 32 | 3 |
When out of stock
15 Business Days
|
148,500JPY
(with tax 163,350JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 40 | 4 |
When out of stock
15 Business Days
|
195,000JPY
(with tax 214,500JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 5 |
When out of stock
15 Business Days
|
241,500JPY
(with tax 265,650JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 6 |
When out of stock
15 Business Days
|
288,000JPY
(with tax 316,800JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 7 |
When out of stock
15 Business Days
|
334,500JPY
(with tax 367,950JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 8 |
When out of stock
15 Business Days
|
381,000JPY
(with tax 419,100JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 9 |
When out of stock
15 Business Days
|
427,500JPY
(with tax 470,250JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 10 |
When out of stock
15 Business Days
|
474,000JPY
(with tax 521,400JPY)
|
|
| - | 114 | - | - | 114 | 17.5 | 3.5 | 24.5 | 50 | 11 |
When out of stock
15 Business Days
|
520,500JPY
(with tax 572,550JPY)
|
|
| - | - | 20 | - | 80 | 8 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
48,000JPY
(with tax 52,800JPY)
|
|
| - | - | 20 | - | 80 | 8 | 5.5 | 22.5 | 20 | 2 |
When out of stock
Answered later
|
94,400JPY
(with tax 103,840JPY)
|
|
| - | - | 25 | - | 90 | 8 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
48,900JPY
(with tax 53,790JPY)
|
|
| - | - | 25 | - | 90 | 8 | 5.5 | 22.5 | 24 | 2 |
When out of stock
Answered later
|
95,200JPY
(with tax 104,720JPY)
|
|
| - | - | 25 | - | 90 | 8 | 5.5 | 22.5 | 24 | 3 |
When out of stock
Answered later
|
141,700JPY
(with tax 155,870JPY)
|
|
| - | - | 25 | - | 90 | 8 | 5.5 | 22.5 | 24 | 4 |
When out of stock
Answered later
|
188,200JPY
(with tax 207,020JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
50,000JPY
(with tax 55,000JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | 24 | 2 |
When out of stock
Answered later
|
96,200JPY
(with tax 105,820JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | 24 | 3 |
When out of stock
Answered later
|
142,700JPY
(with tax 156,970JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | 24 | 4 |
When out of stock
Answered later
|
189,200JPY
(with tax 208,120JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | 33 | 5 |
When out of stock
15 Business Days
|
235,700JPY
(with tax 259,270JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | 33 | 6 |
When out of stock
15 Business Days
|
282,200JPY
(with tax 310,420JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | 33 | 5 |
When out of stock
15 Business Days
|
235,700JPY
(with tax 259,270JPY)
|
|
| - | - | 40 | - | 105 | 10 | 5.5 | 22.5 | 33 | 6 |
When out of stock
15 Business Days
|
282,200JPY
(with tax 310,420JPY)
|
|
| - | - | - | 20 | 80 | 8 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
48,000JPY
(with tax 52,800JPY)
|
|
| - | - | - | 20 | 80 | 8 | 5.5 | 22.5 | 20 | 2 |
When out of stock
Answered later
|
94,400JPY
(with tax 103,840JPY)
|
|
| - | - | - | 25 | 90 | 8 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
48,900JPY
(with tax 53,790JPY)
|
|
| - | - | - | 25 | 90 | 8 | 5.5 | 22.5 | 24 | 2 |
When out of stock
Answered later
|
95,200JPY
(with tax 104,720JPY)
|
|
| - | - | - | 25 | 90 | 8 | 5.5 | 22.5 | 24 | 3 |
When out of stock
Answered later
|
141,700JPY
(with tax 155,870JPY)
|
|
| - | - | - | 25 | 90 | 8 | 5.5 | 22.5 | 24 | 4 |
When out of stock
Answered later
|
188,200JPY
(with tax 207,020JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | - | 1 |
When out of stock
Answered later
|
50,000JPY
(with tax 55,000JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | 24 | 2 |
When out of stock
Answered later
|
96,200JPY
(with tax 105,820JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | 24 | 3 |
When out of stock
Answered later
|
142,700JPY
(with tax 156,970JPY)
|
|
| - | - | - | 40 | 105 | 10 | 5.5 | 22.5 | 24 | 4 |
When out of stock
Answered later
|
189,200JPY
(with tax 208,120JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
