- Cosmotec for Vacuum Components
- Feedthrough
- Coaxial
- MHV type
- Feedthrough coaxial MHV-JJ ground shield on both s
Feedthrough coaxial MHV-JJ ground shield on both s
Miniature High Voltage
▼ Feedthrough Coaxial MHV Ground Shield Both Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Ground and continuity
MHV connector connection on both vacuum and atmosphere side

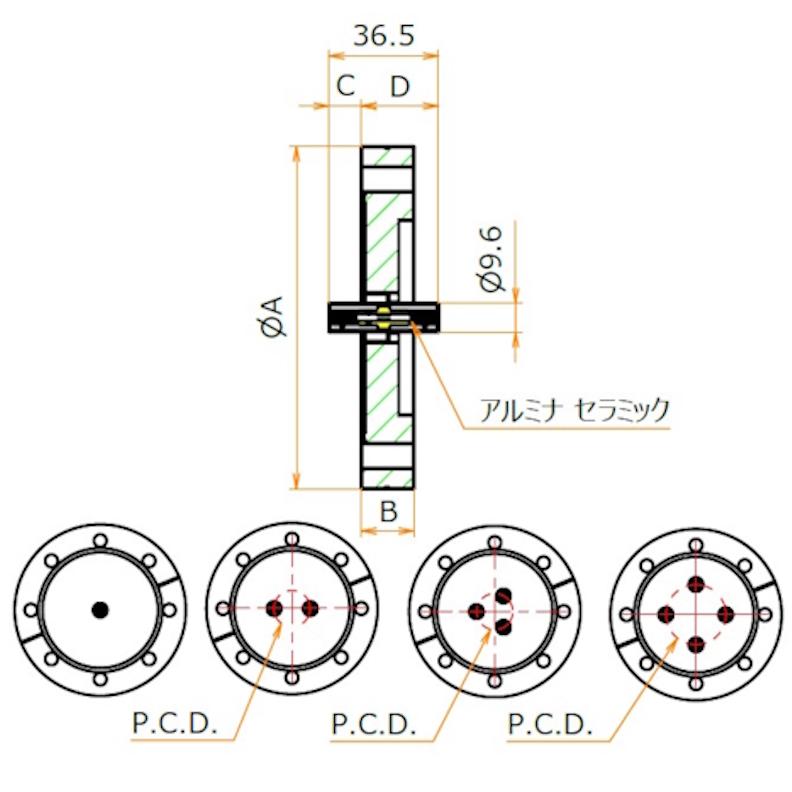

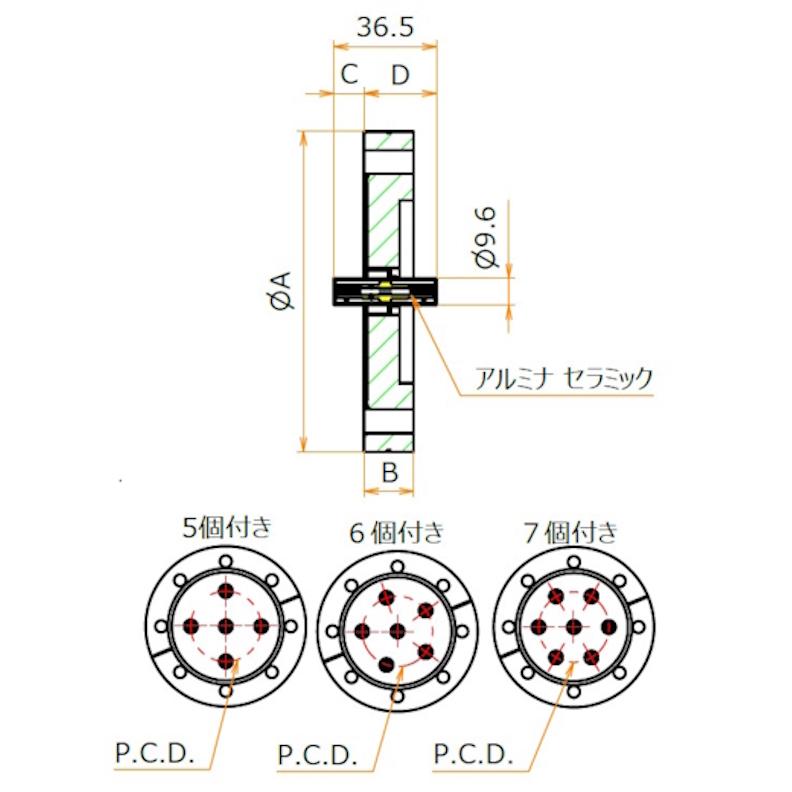

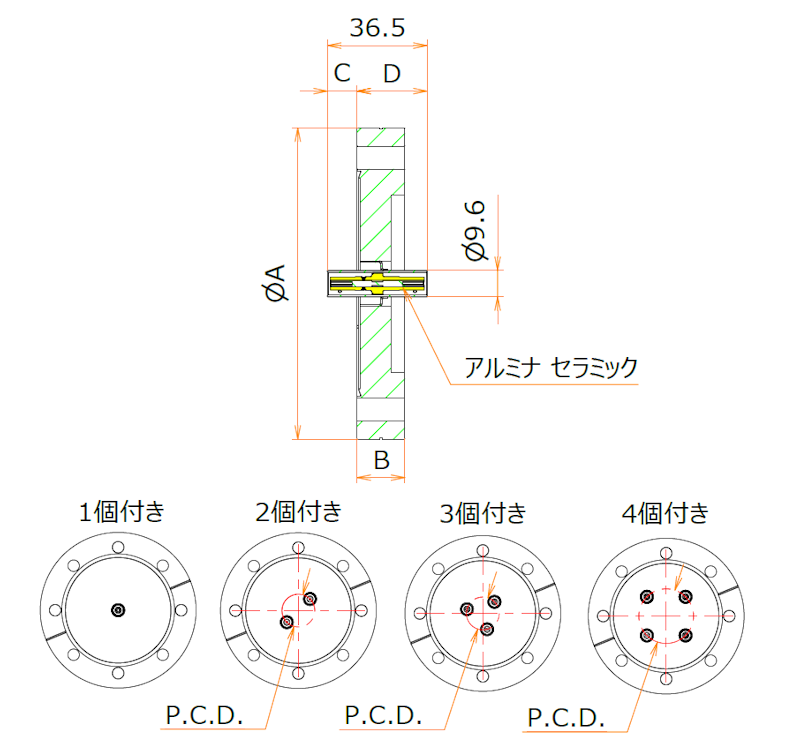

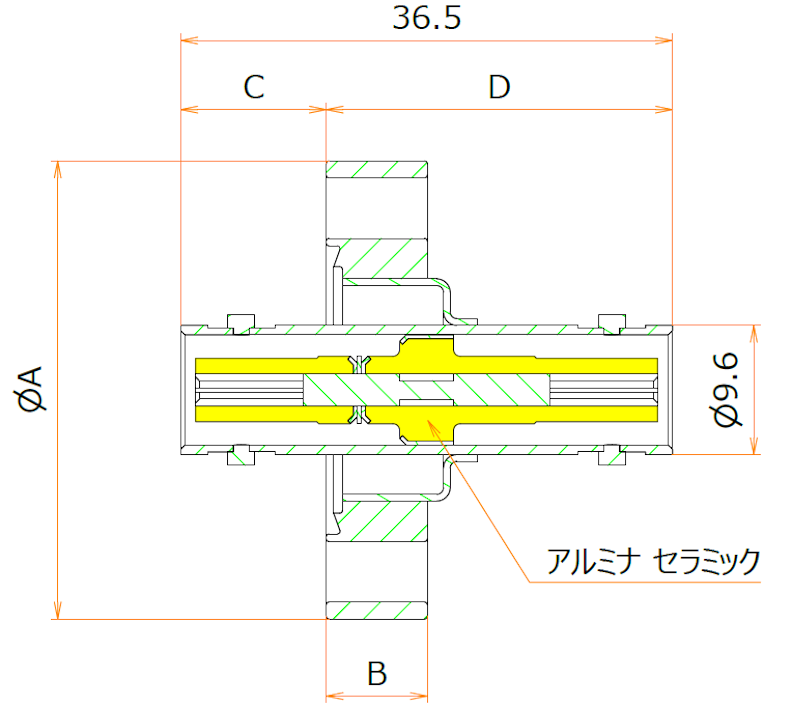

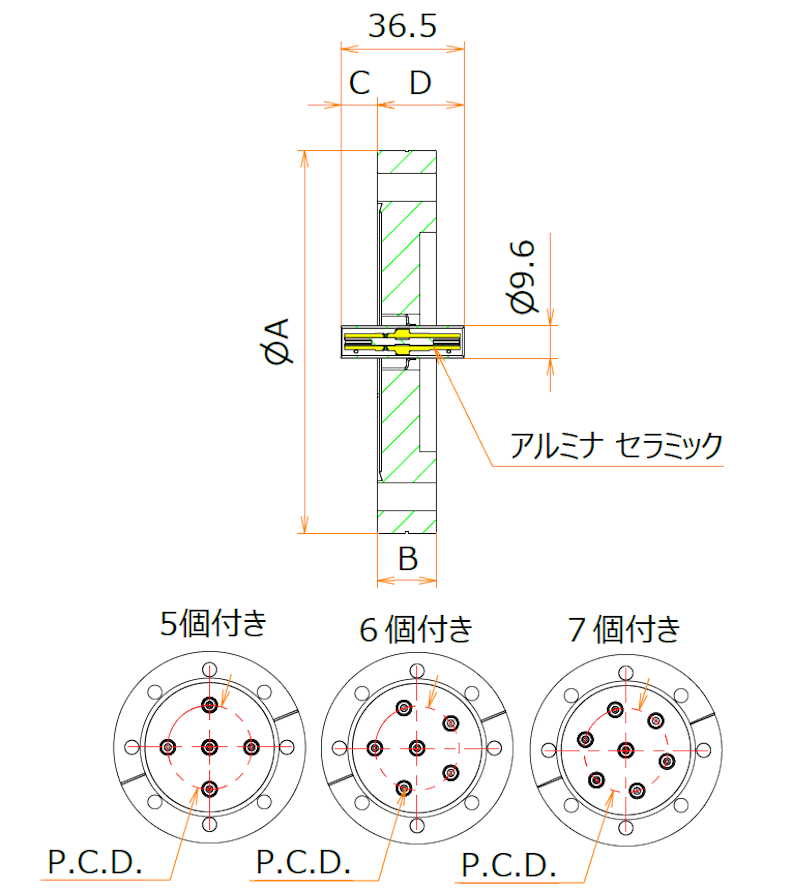

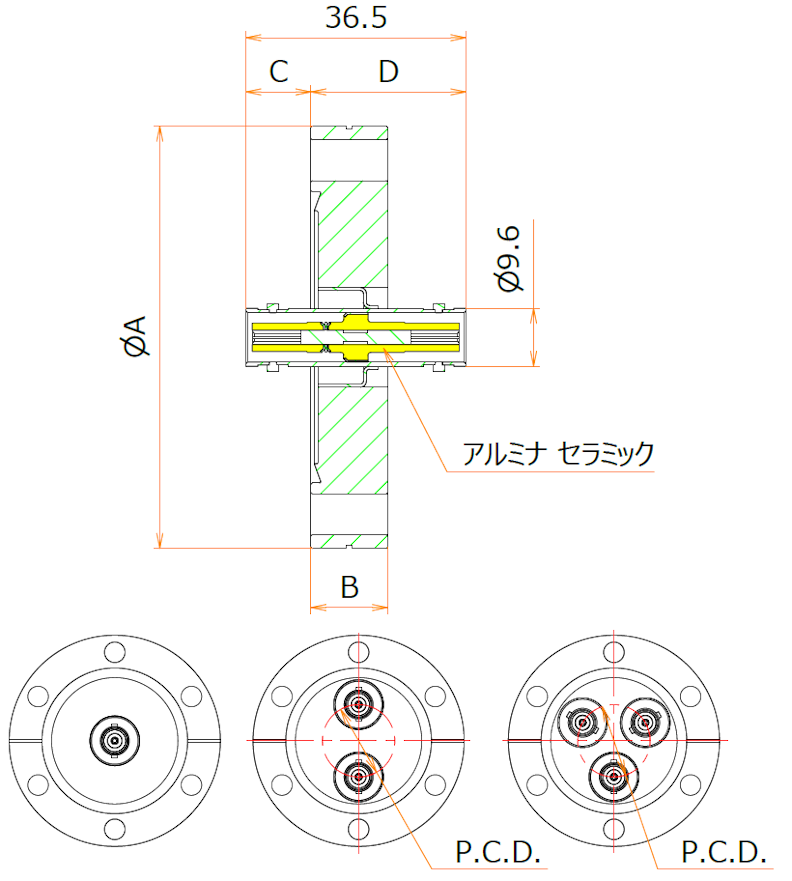

Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG
▼ In addition, the following types are standardized
Ground shielded single-sided plug mating
Floating shield plugging on one side
Floating shield plug mating on both sides
▼ Custom-made products are also available.
We can also accept special flange mounting of multiple terminal combinations with different number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.
Precision cleaning request.
| Basic Information | |
|---|---|
| type | MHV |
| Connection type | Vacuum side and the atmosphere |
| electrode | Kovar ® |
| Flange material | SUS 304 |
| sleeve | Kovar ® |
| Insulator | Alumina ceramic |
| Maximum temperature | 450℃ |
| The lowest temperature | -196℃ |
| Leak rate | <1.3x10-10Pa･㎥/sec |
| Classification | Flanged terminal |
| type | Ground shield |
| Impedance | 50 Ω |
| frequency | 100 MHz |
| Insulation resistance value | 10⁹ ohm |
| Withstand voltage: DC | 5 kV |
| Electric current / 1 pc. | 3 A |
| RoHS2 corresponding | ○ |
We have 26 type candidate
※ Please click on the product code or model for more information.
front.product.product_code Model |
NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode | Stock & Delivery |
front.product.price front.product.tax_included2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | - | - | - | 30 | 4.8 | 2 | 34.5 | - | 1 |
stock
1
1-2 Business Days
When out of stock
21 Business Days
|
70,000JPY
(with tax 77,000JPY)
|
|
| 25 | - | - | - | 40 | 6 | 9.5 | 27 | - | 1 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
70,200JPY
(with tax 77,220JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | - | 1 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
70,500JPY
(with tax 77,550JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | 20 | 2 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
137,300JPY
(with tax 151,030JPY)
|
|
| 40 | - | - | - | 55 | 6 | 9.5 | 27 | 21 | 3 |
When out of stock
30 Business Days
|
196,200JPY
(with tax 215,820JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | - | 1 |
When out of stock
30 Business Days
|
71,000JPY
(with tax 78,100JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | 20 | 2 |
When out of stock
30 Business Days
|
137,800JPY
(with tax 151,580JPY)
|
|
| 50 | - | - | - | 75 | 6 | 9.5 | 27 | 21 | 3 |
When out of stock
30 Business Days
|
196,700JPY
(with tax 216,370JPY)
|
|
| - | 34 | - | - | 34 | 7.5 | 10 | 26.5 | - | 1 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
71,000JPY
(with tax 78,100JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 10 | 26.5 | - | 1 |
stock
3
1-2 Business Days
When out of stock
30 Business Days
|
72,200JPY
(with tax 79,420JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 10 | 26.5 | 20 | 2 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
139,000JPY
(with tax 152,900JPY)
|
|
| - | 70 | - | - | 70 | 12.7 | 10 | 26.5 | 21 | 3 |
stock
1
1-2 Business Days
When out of stock
30 Business Days
|
197,900JPY
(with tax 217,690JPY)
|
|
| - | - | 20 | - | 80 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
72,000JPY
(with tax 79,200JPY)
|
|
| - | - | 25 | - | 90 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
72,800JPY
(with tax 80,080JPY)
|
|
| - | - | 25 | - | 90 | 8 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
139,600JPY
(with tax 153,560JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
73,800JPY
(with tax 81,180JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
140,600JPY
(with tax 154,660JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 25 | 3 |
When out of stock
30 Business Days
|
199,500JPY
(with tax 219,450JPY)
|
|
| - | - | 40 | - | 105 | 10 | 12 | 24.5 | 30 | 4 |
stock
2
1-2 Business Days
When out of stock
30 Business Days
|
257,400JPY
(with tax 283,140JPY)
|
|
| - | - | - | 20 | 80 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
72,000JPY
(with tax 79,200JPY)
|
|
| - | - | - | 25 | 90 | 8 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
72,800JPY
(with tax 80,080JPY)
|
|
| - | - | - | 25 | 90 | 8 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
139,600JPY
(with tax 153,560JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | - | 1 |
When out of stock
30 Business Days
|
73,800JPY
(with tax 81,180JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 20 | 2 |
When out of stock
30 Business Days
|
140,600JPY
(with tax 154,660JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 25 | 3 |
When out of stock
30 Business Days
|
199,500JPY
(with tax 219,450JPY)
|
|
| - | - | - | 40 | 105 | 10 | 12 | 24.5 | 30 | 4 |
When out of stock
30 Business Days
|
257,400JPY
(with tax 283,140JPY)
|
| NW/KF | ICF | VF | VG | A | B | C | D | P.C.D | The number of electrode |
|---|---|---|---|---|---|---|---|---|---|
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Product code :14442
Model:VCK1000MP/MP
Model:VCK1000MP/MP
58,000JPY
(with tax 63,800JPY)
Product code :14443
Model:VCK1000X/MP
Model:VCK1000X/MP
34,000JPY
(with tax 37,400JPY)
Product code :12654
Model:ASP-MHV
Model:ASP-MHV
4,800JPY
(with tax 5,280JPY)
Product code :14428
Model:VCK1000/XX
Model:VCK1000/XX
12,100JPY
(with tax 13,310JPY)
Product code :14429
Model:VCP1000/XX
Model:VCP1000/XX
3,900JPY
(with tax 4,290JPY)
Product code :10152
Model:SVC24S
Model:SVC24S
17,700JPY
(with tax 19,470JPY)
Product code :14427
Model:SVC24CU
Model:SVC24CU
4,700JPY
(with tax 5,170JPY)
Product code :14452
Model:ACV1000M/XX
Model:ACV1000M/XX
500JPY
(with tax 550JPY)
Product code :14466
Model:ACV1000MP/MP
Model:ACV1000MP/MP
11,300JPY
(with tax 12,430JPY)
Product code :14583
Model:PVC16
Model:PVC16
9,700JPY
(with tax 10,670JPY)
