  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Coaxial
  4. MHV type
  5. Feedthrough coaxial MHV-R-F floating shield one si

Feedthrough coaxial MHV-R-F floating shield one si

Feedthrough coaxial MHV-R-F floating shield one si

Miniature High Voltage
▼ Feedthrough Coaxial MHV Floating Shield One Side Plug Mating
5kV 3A compatible
For 50Ω transmission
Floating shield isolated from ground
Electrode on vacuum side, MHV connector connection on atmospheric side only
Connection flanges are standardized as NW/KF, ICF, JIS-VF, JIS-VG

▼ In addition, the following types are standardized
Gland shield single-sided plug mating
Gland shield double-sided plug fitting
Floating shield plugging on both sides

▼ Custom-made products are also available.
We can also provide special flange mounting with a combination of multiple types of terminals with a change in the number of poles.
Please contact us by clicking the "Inquiry" button on the right side of the page.

Precision cleaning request.

see next
Basic Information
type MHV
Connection type The atmosphere-side plug-fitti
electrode Kovar ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Classification Flanged terminal
type Floating shield
Impedance 50 Ω
frequency 100 MHz
Insulation resistance value 10⁹ ohm
Withstand voltage: DC 5 kV
Electric current / 1 pc. 3 A
RoHS2 corresponding ○
Inquiry for this subcategory

We have 28 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model
 NW/KF ICF VF VG A B C D P.C.D The number of electrode
Stock & Delivery
front.product.price
front.product.tax_included2
11055
N16MRF1
16 - - - 30 4.8 12.5 34.5 - 1
When out of stock
21 Business Days
61,500JPY (with tax 67,650JPY)
11089
N25MRF1
25 - - - 40 6 20 27 - 1
When out of stock
30 Business Days
61,700JPY (with tax 67,870JPY)
11166
N40MRF1
40 - - - 55 6 20 27 - 1
When out of stock
30 Business Days
62,000JPY (with tax 68,200JPY)
11167
N40MRF2
40 - - - 55 6 20 27 20 2
When out of stock
30 Business Days
120,000JPY (with tax 132,000JPY)
11989
N40MRF3
40 - - - 55 6 20 27 21 3
When out of stock
30 Business Days
170,200JPY (with tax 187,220JPY)
41067
N50MRF1
50 - - - 75 6 20 27 - 1
When out of stock
30 Business Days
62,500JPY (with tax 68,750JPY)
41068
N50MRF2
50 - - - 75 6 20 27 20 2
When out of stock
30 Business Days
120,500JPY (with tax 132,550JPY)
41069
N50MRF3
50 - - - 75 6 20 27 21 3
When out of stock
30 Business Days
170,700JPY (with tax 187,770JPY)
18596
N50MRF4
50 - - - 75 6 20 27 28 4
When out of stock
21 Business Days
220,600JPY (with tax 242,660JPY)
10631
C34MRF1
- 34 - - 34 7.5 8.9 38.1 - 1
stock
1 1-2 Business Days
When out of stock
21 Business Days
62,500JPY (with tax 68,750JPY)
10714
C70MRF1
- 70 - - 70 12.7 20.5 26.5 - 1
When out of stock
30 Business Days
63,700JPY (with tax 70,070JPY)
10715
C70MRF2
- 70 - - 70 12.7 20.5 26.5 20 2
When out of stock
30 Business Days
121,700JPY (with tax 133,870JPY)
11990
C70MRF3
- 70 - - 70 12.7 20.5 26.5 21 3
When out of stock
30 Business Days
171,900JPY (with tax 189,090JPY)
18597
C114MRF4
- 114 - - 114 17.5 20.5 26.5 30 4
When out of stock
21 Business Days
227,800JPY (with tax 250,580JPY)
10797
F20MRF1
- - 20 - 80 8 22.5 24.5 - 1
When out of stock
30 Business Days
63,500JPY (with tax 69,850JPY)
11686
F25MRF1
- - 25 - 90 8 22.5 24.5 - 1
When out of stock
30 Business Days
64,300JPY (with tax 70,730JPY)
12855
F25MRF2
- - 25 - 90 8 22.5 24.5 20 2
When out of stock
30 Business Days
122,300JPY (with tax 134,530JPY)
11687
F40MRF1
- - 40 - 105 10 22.5 24.5 - 1
When out of stock
30 Business Days
65,300JPY (with tax 71,830JPY)
11688
F40MRF2
- - 40 - 105 10 22.5 24.5 20 2
When out of stock
30 Business Days
123,300JPY (with tax 135,630JPY)
11991
F40MRF3
- - 40 - 105 10 22.5 24.5 25 3
When out of stock
30 Business Days
173,500JPY (with tax 190,850JPY)
12856
F40MRF4
- - 40 - 105 10 22.5 24.5 30 4
When out of stock
30 Business Days
223,400JPY (with tax 245,740JPY)
11689
G20MRF1
- - - 20 80 8 22.5 24.5 - 1
stock
1 1-2 Business Days
When out of stock
30 Business Days
63,500JPY (with tax 69,850JPY)
11690
G25MRF1
- - - 25 90 8 22.5 24.5 - 1
When out of stock
30 Business Days
64,300JPY (with tax 70,730JPY)
12857
G25MRF2
- - - 25 90 8 22.5 24.5 20 2
When out of stock
30 Business Days
122,300JPY (with tax 134,530JPY)
11691
G40MRF1
- - - 40 105 10 22.5 24.5 - 1
When out of stock
30 Business Days
65,300JPY (with tax 71,830JPY)
11692
G40MRF2
- - - 40 105 10 22.5 24.5 20 2
When out of stock
30 Business Days
123,300JPY (with tax 135,630JPY)
11992
G40MRF3
- - - 40 105 10 22.5 24.5 25 3
When out of stock
30 Business Days
173,500JPY (with tax 190,850JPY)
12858
G40MRF4
- - - 40 105 10 22.5 24.5 30 4
When out of stock
30 Business Days
223,400JPY (with tax 245,740JPY)

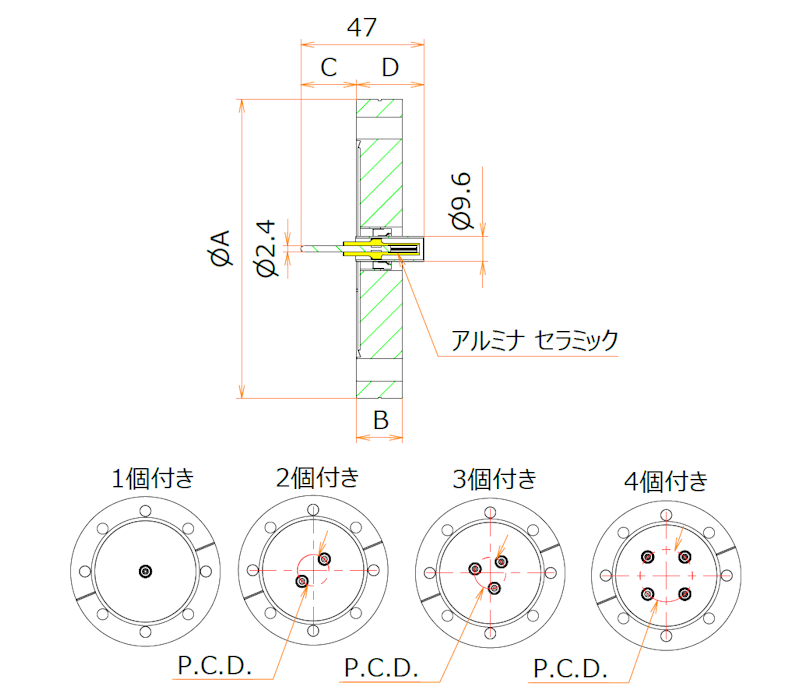

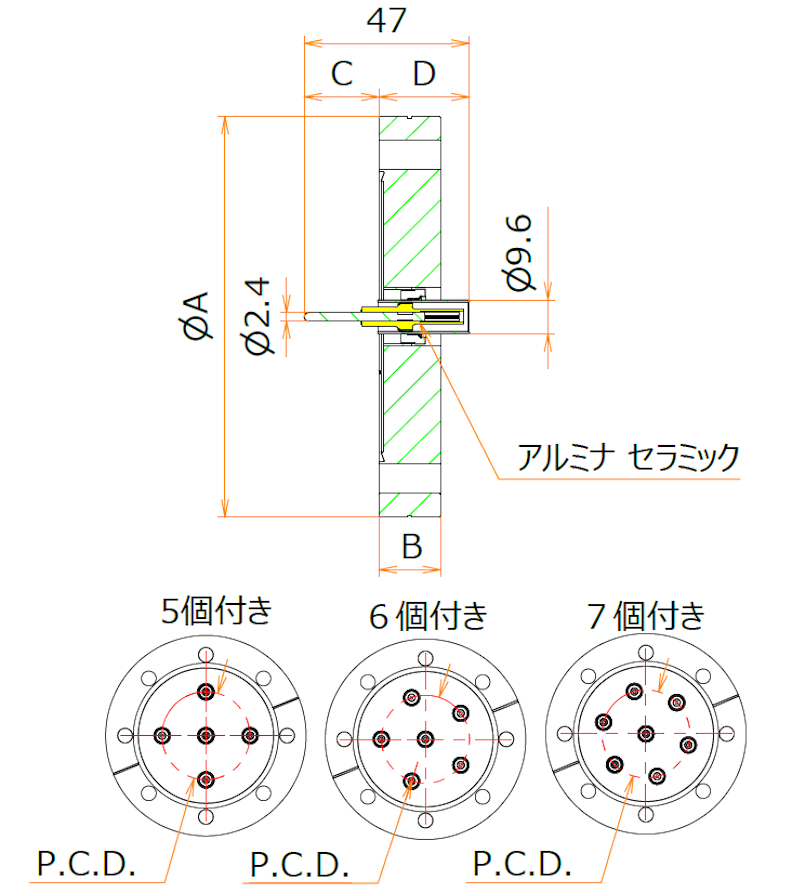

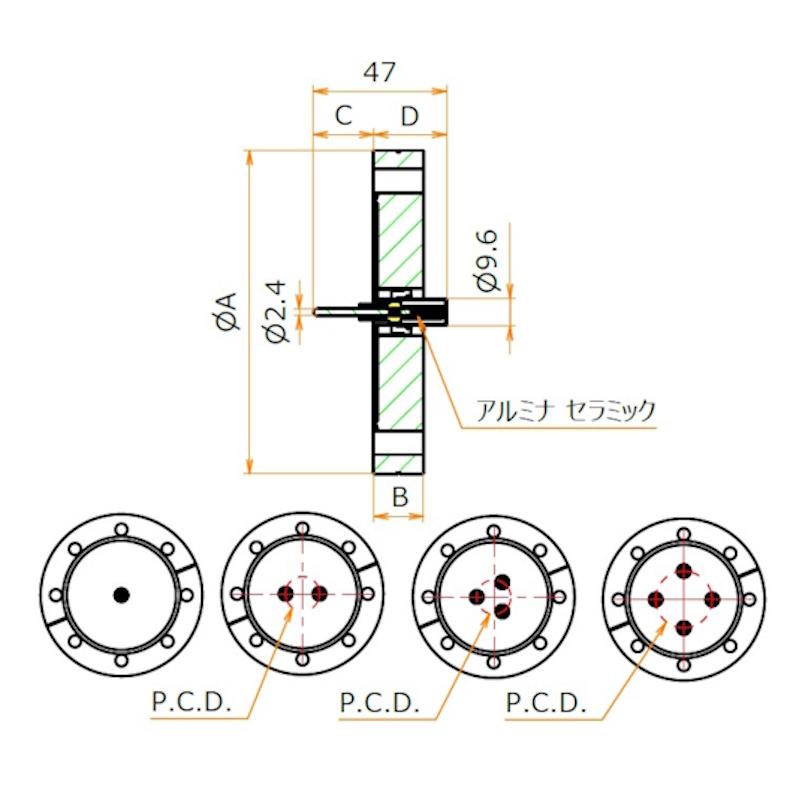

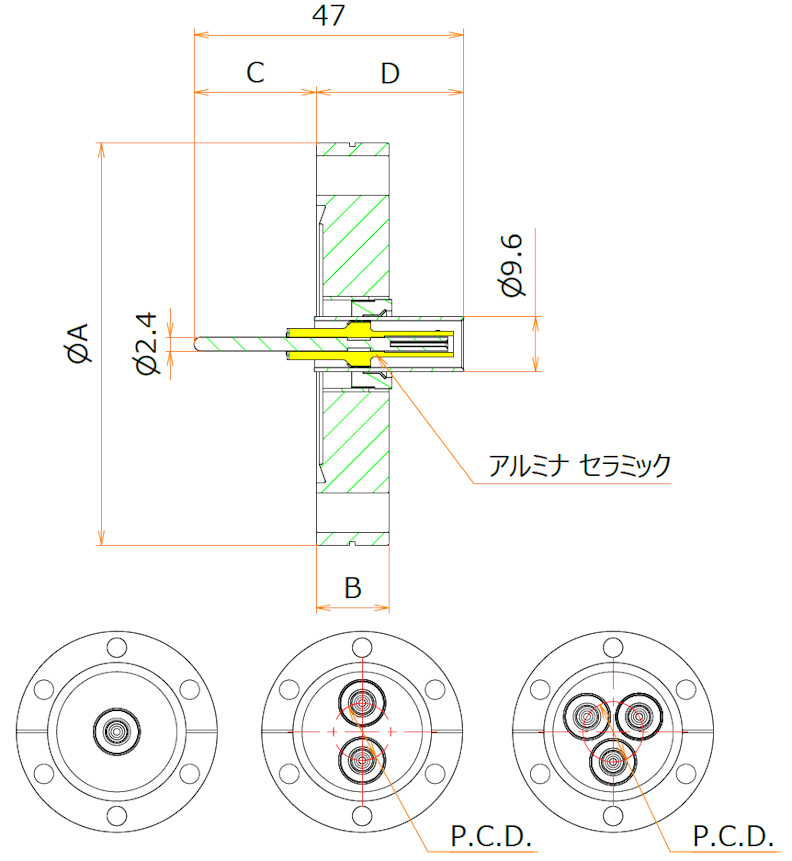

NW/KF ICF VF VG A B C D P.C.D The number of electrode
To detail page Contact Us

Filter by model

stock status

Flange

The number of electrode

フィードスルー 同軸 MHV-R-F フローティングシールド 片側プラグ嵌合 admin.label.item.catalog_image
グランド及びフローティングタイプの違いについては以下を参照ください。
https://www.cosmotec-co.jp/info/case/1483/
Connection parts
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Push-on type 10 pieces for connecting parts vacuum side socket contacts φ2.4
Product code :10152
Model:SVC24S
17,700JPY (with tax 19,470JPY)
Vacuum side socket contact crimp type Fai2.4 1 pcs
Vacuum side socket contact crimp type Fai2.4 1 pcs
Product code :14427
Model:SVC24CU
4,700JPY (with tax 5,170JPY)
Connecting parts Vacuum side Cable with one side connector for MHV-R/MHV-R-F L=1000
Connecting parts Vacuum side Cable with one side connector for MHV-R/MHV-R-F L=1000
Product code :14441
Model:VCK1000X/MJ
27,600JPY (with tax 30,360JPY)
For connecting parts atmosphere side plug MHV
For connecting parts atmosphere side plug MHV
Product code :12654
Model:ASP-MHV
4,800JPY (with tax 5,280JPY)
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Connection piece vacuum side Kapton coated cables AWG # for 26 coaxial L = 1000
Product code :14428
Model:VCK1000/XX
12,100JPY (with tax 13,310JPY)
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Connection piece vacuum side PEEK® sheathed cable AWG # 28 coaxial for L = 1000
Product code :14429
Model:VCP1000/XX
3,900JPY (with tax 4,290JPY)
Connecting parts Atmosphere side cable RG-59/U for MHV L=1000
Connecting parts Atmosphere side cable RG-59/U for MHV L=1000
Product code :14452
Model:ACV1000M/XX
500JPY (with tax 550JPY)
Connection parts atmosphere side both sides with a plug cable MHV for L = 1000
Connection parts atmosphere side both sides with a plug cable MHV for L = 1000
Product code :14466
Model:ACV1000MP/MP
11,300JPY (with tax 12,430JPY)
Crimping type 10 pieces for connecting parts vacuum side pin contact φ1.6
Crimping type 10 pieces for connecting parts vacuum side pin contact φ1.6
Product code :14583
Model:PVC16
9,700JPY (with tax 10,670JPY)
