  1. Cosmotec for Vacuum Components
  2. Feedthrough
  3. Thermocouple
  4. T thermocouple
  5. T thermocouple BURNDY type
  6. Feedthrough thermocouple T type BURNDY® 11 pairs

Feedthrough thermocouple T type BURNDY® 11 pairs

Feedthrough thermocouple T type BURNDY® 11 pairs

▼BURNDY Thermocouple T Type
Can be mated with bayonet-locking plug
T Type (Copper Constantan®) for temperature measurement
T type is often used in low temperature range
Easy to connect, even in difficult-to-see locations, simply insert along the guide groove to align the orientation
In addition to vacuum/atmosphere side connection parts and tools, we also offer pre-assembled products and assembly services.
※ The reference allowable current value for constantan electrodes is 5A (not guaranteed).

▼ The following types are standardized (List)
Pairs: 2, 4, 6, 11
Flange: NW/KF, ICF, JIS-VF, JIS-VG
Other types are available from here.

▼ Custom-made products are also available.
We also accept multiple terminal combinations, flange size changes, and mounting on special flanges.
Please contact us by clicking the "Inquiry" button on the right side of the page.

For precision cleaning requests, please click here.

see next
Basic Information
Pairs of Thermocouple 11
type Thermocouple T type
Withstand voltage: DC Milli
Insulation resistance value 10⁹ ohm
frequency 10 MHz
Connection type BURNDY
electrode Copper / constantan ®
Flange material SUS 304
sleeve Kovar ®
Insulator Alumina ceramic
Maximum temperature 450℃
The lowest temperature -196℃
Leak rate <1.3x10-10Pa･㎥/sec
Inquiry for this subcategory

We have 10 type candidate

※ Please click on the product code or model for more information.

front.product.product_code
Model

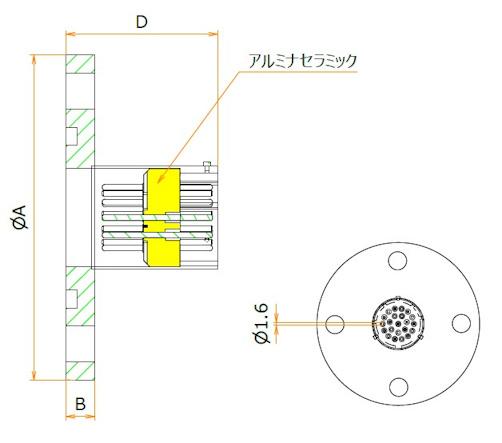

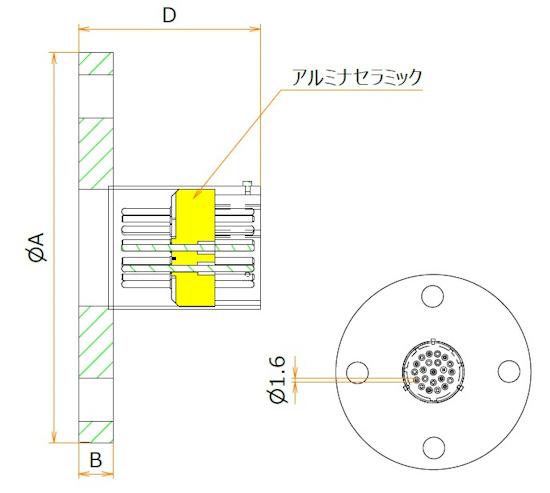

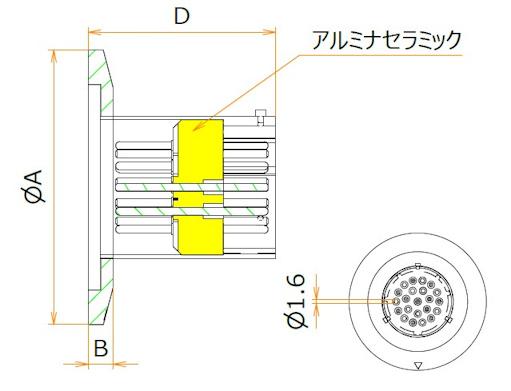

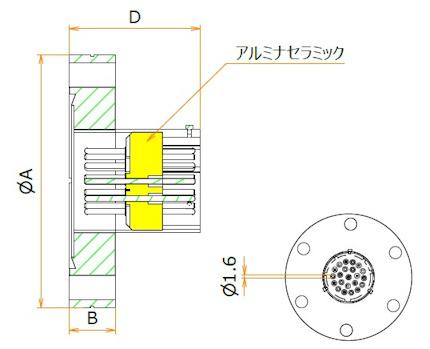

 NW/KF ICF VF VG A B D The contents of goods
Stock & Delivery
front.product.price
front.product.tax_included2
12337
N40TCT11MB
40 - - - 55 6 39 Only flanged terminal
When out of stock
30 Business Days
193,700JPY (with tax 213,070JPY)
40941
C70TCT11MBGB
- 70 - - 70 12 49 Only flanged terminal
stock
2 1-2 Business Days
When out of stock
21 Business Days
209,800JPY (with tax 230,780JPY)
12648
F20TCT11MB
- - 20 - 80 8 35 Only flanged terminal
When out of stock
Answered later
224,900JPY (with tax 247,390JPY)
12530
F25TCT11MB
- - 25 - 90 8 35 Only flanged terminal
When out of stock
Answered later
225,200JPY (with tax 247,720JPY)
12531
F40TCT11MB
- - 40 - 105 10 35 Only flanged terminal
When out of stock
Answered later
225,800JPY (with tax 248,380JPY)
12629
F50TCT11MB
- - 50 - 120 10 35 Only flanged terminal
When out of stock
Answered later
226,400JPY (with tax 249,040JPY)
12649
G20TCT11MB
- - - 20 80 8 35 Only flanged terminal
When out of stock
Answered later
224,900JPY (with tax 247,390JPY)
12532
G25TCT11MB
- - - 25 90 8 35 Only flanged terminal
When out of stock
Answered later
225,200JPY (with tax 247,720JPY)
12533
G40TCT11MB
- - - 40 105 10 35 Only flanged terminal
When out of stock
Answered later
225,800JPY (with tax 248,380JPY)
12630
G50TCT11MB
- - - 50 120 10 35 Only flanged terminal
When out of stock
Answered later
226,400JPY (with tax 249,040JPY)
NW/KF ICF VF VG A B D The contents of goods
To detail page Contact Us

Filter by model

stock status

Flange

The contents of goods

フィードスルー 熱電対 Tタイプ BURNDY® 11対 admin.label.item.catalog_image
圧着工具の取扱い方法は以下の画像をクリックしてください。 圧着工具の取り扱い方法
Connection parts
Thermocouple For T thermocouple Copper Socket contact for φ1.6 (without lance)
Thermocouple For T thermocouple Copper Socket contact for φ1.6 (without lance)
Product code :11367
Model:SVC16CUNL
4,300JPY (with tax 4,730JPY)
Thermocouple For T thermocouple Constantan socket contact for φ1.6 (without lance)
Thermocouple For T thermocouple Constantan socket contact for φ1.6 (without lance)
Product code :11368
Model:SVC16CTNL
4,300JPY (with tax 4,730JPY)
Connection piece vacuum side T thermocouple Kapton coated wire tip welding φ0.32 L = 1000
Connection piece vacuum side T thermocouple Kapton coated wire tip welding φ0.32 L = 1000
Product code :14513
Model:VT3K1000/XX
3,800JPY (with tax 4,180JPY)
Connection part Vacuum side T thermocouple bare wire tip welding for φ0.32 L=1000
Connection part Vacuum side T thermocouple bare wire tip welding for φ0.32 L=1000
Product code :14521
Model:VT3B1000/XX
800JPY (with tax 880JPY)
Connecting parts Vacuum side T thermocouple Ceramic beads Bare wire tip welding for φ0.32 L=10
Connecting parts Vacuum side T thermocouple Ceramic beads Bare wire tip welding for φ0.32 L=10
Product code :14525
Model:VT3A1000/XX
11,800JPY (with tax 12,980JPY)
Connection parts ceramic beads O.D. 3.2 / I.D. For 1.4
Connection parts ceramic beads O.D. 3.2 / I.D. For 1.4
Product code :12275
Model:CB3214
31,100JPY (with tax 34,210JPY)
L connecting parts thermocouple ceramic insulating tube two holes φ0.32 = 100
L connecting parts thermocouple ceramic insulating tube two holes φ0.32 = 100
Product code :14527
Model:CT1504H2L100
1,400JPY (with tax 1,540JPY)
